| Code | USA Ref | 3D Drawings | Drawing | System | Way | Size ISO | Control 14 | Return 12 | Pressure psi (bar) | Response Time (ms) En. | Response Time (ms) De-en. | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

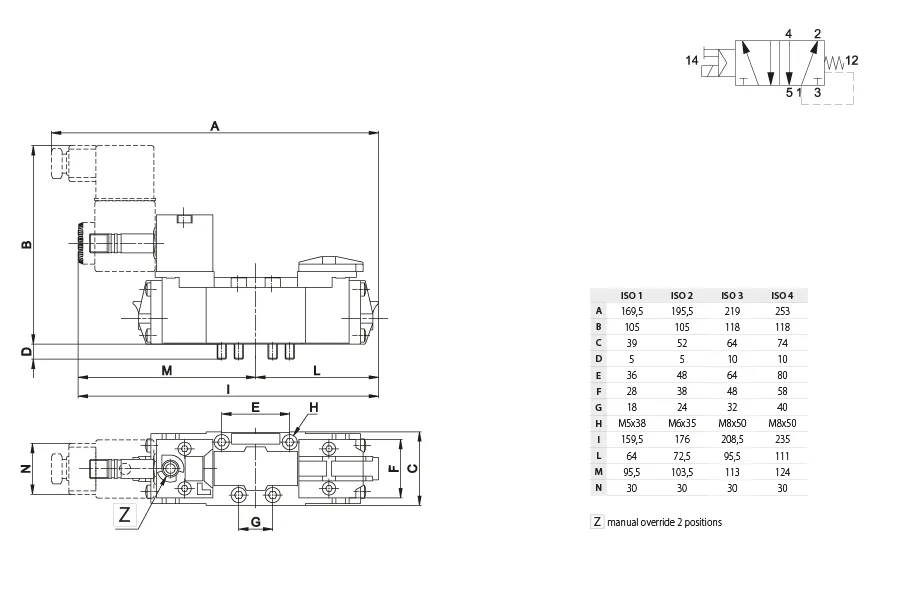

| UBE 30 00 | UBE3000 | Request access | Mixed | 5/2 | 1 | electric amplified | pneumatic + spring | 29 ÷ 145 (2 ÷ 10) | 20 | 32 | 0.82 (0.37) | ||
| UBE 40 00 | UBE4000 | Request access | Mixed | 5/2 | 2 | electric amplified | pneumatic + spring | 33 ÷ 145 (2.3 ÷ 10) | 24 | 25 | 1.04 (0.47) | ||
| UBE 50 00 | UBE5000 | Request access | Mixed | 5/2 | 3 | electric amplified | pneumatic + spring | 36 ÷ 145 (2.5 ÷ 10) | 32 | 71 | 1.81 (0.82) | ||
| UBE 60 00 | UBE6000 | Request access | Mixed | 5/2 | 4 | electric amplified | pneumatic + spring | 44 ÷ 145 (3 ÷ 10) | 38 | 62 | 2.29 (1.04) | ||
| UBE 30 60 | UBE3060 | Request access | Mixed | 5/2 | 1 | electric amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 16 | 6 | 0.82 (0.37) | ||
| UBE 40 60 | UBE4060 | Request access | Mixed | 5/2 | 2 | electric amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 17 | 7 | 1.04 (0.47) | ||
| UBE 50 60 | UBE5060 | Request access | Mixed | 5/2 | 3 | electric amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 23 | 15 | 1.81 (0.82) | ||
| UBE 60 60 | UBE6060 | Request access | Mixed | 5/2 | 4 | electric amplified | pneumatic amplified | 19 ÷ 145 (1.3 ÷ 10) | 25 | 16 | 2.29 (1.04) | ||

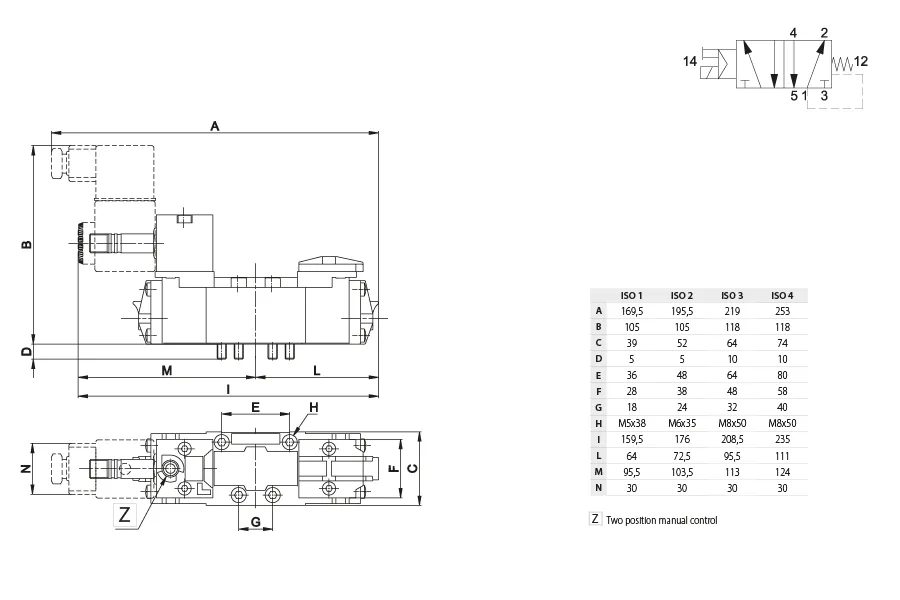

| UBE 37 00 | UBE3700 | Request access | Spool | 5/2 | 1 | electric amplified | pneumatic + spring | 29 ÷ 145 (2 ÷ 10) | 21 | 35 | 0.82 (0.37) | ||
| UBE 47 00 | UBE4700 | Request access | Spool | 5/2 | 2 | electric amplified | pneumatic + spring | 32 ÷ 145 (2.2 ÷ 10) | 24 | 30 | 1.04 (0.47) | ||
| UBE 57 00 | UBE5700 | Request access | Spool | 5/2 | 3 | electric amplified | pneumatic + spring | 33 ÷ 145 (2.3 ÷ 10) | 33 | 74 | 1.81 (0.82) | ||
| UBE 67 00 | UBE6700 | Request access | Spool | 5/2 | 4 | electric amplified | pneumatic + spring | 41 ÷ 145 (2.8 ÷ 10) | 39 | 68 | 2.29 (1.04) | ||

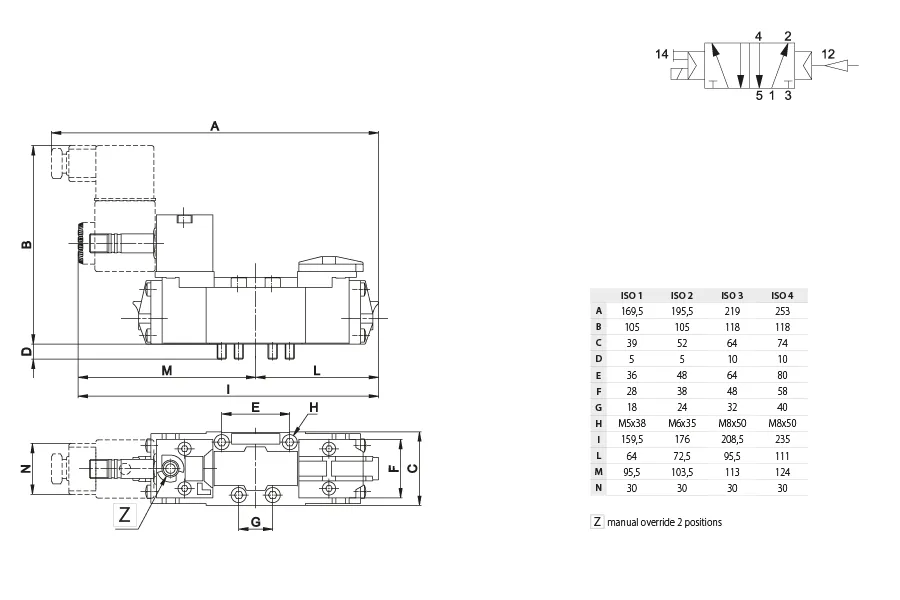

| UBE 37 60 | UBE3760 | Request access | Spool | 5/2 | 1 | electric amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 17 | 8 | 0.82 (0.37) | ||
| UBE 47 60 | UBE4760 | Request access | Spool | 5/2 | 2 | electric amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 18 | 9 | 1.04 (0.47) | ||
| UBE 57 60 | UBE5760 | Request access | Spool | 5/2 | 3 | electric amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 26 | 17 | 1.81 (0.82) | ||
| UBE 67 60 | UBE6760 | Request access | Spool | 5/2 | 4 | electric amplified | pneumatic amplified | 19 ÷ 145 (1.3 ÷ 10) | 27 | 18 | 2.29 (1.04) |
