| Code | USA Ref | 3D Drawings | Drawing | System | Way | Size ISO | Control 14 | Return 12 | Pressure psi (bar) | Response Time (ms) En. | Response Time (ms) De-en. | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

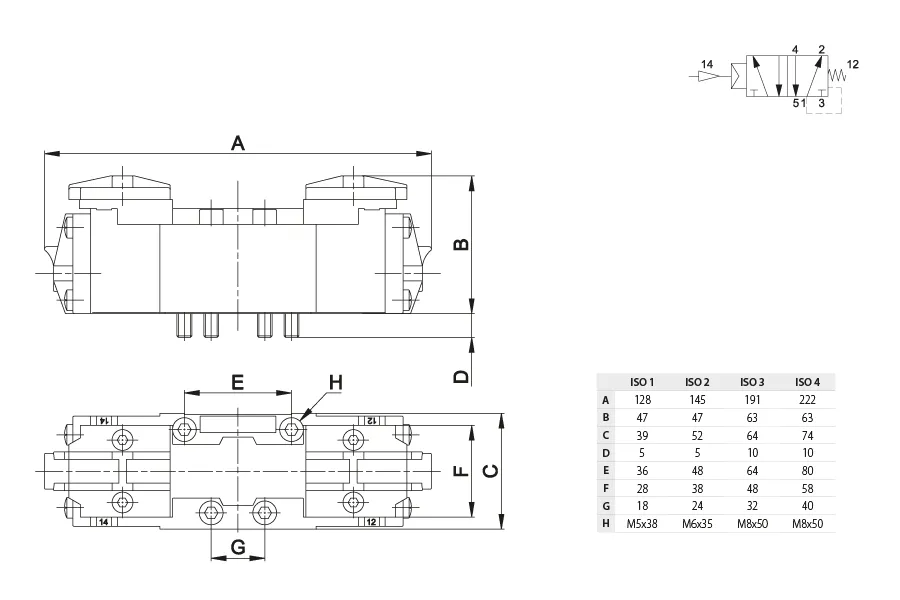

| UBE 31 00 | UBE3100 | Request access | Mixed | 5/2 | 1 | pneumatic amplified | pneumatic + spring | 29 ÷ 145 (2 ÷ 10) | 9 | 18 | 0.66 (0.30) | ||
| UBE 41 00 | UBE4100 | Request access | Mixed | 5/2 | 2 | pneumatic amplified | pneumatic + spring | 33 ÷ 145 (2.3 ÷ 10) | 11 | 14 | 0.88 (0.40) | ||
| UBE 51 00 | UBE5100 | Request access | Mixed | 5/2 | 3 | pneumatic amplified | pneumatic + spring | 36 ÷ 145 (2.5 ÷ 10) | 19 | 49 | 1.43 (0.65) | ||
| UBE 61 00 | UBE6100 | Request access | Mixed | 5/2 | 4 | pneumatic amplified | pneumatic + spring | 44 ÷ 145 (3 ÷ 10) | 23 | 46 | 1.92 (0.87) | ||

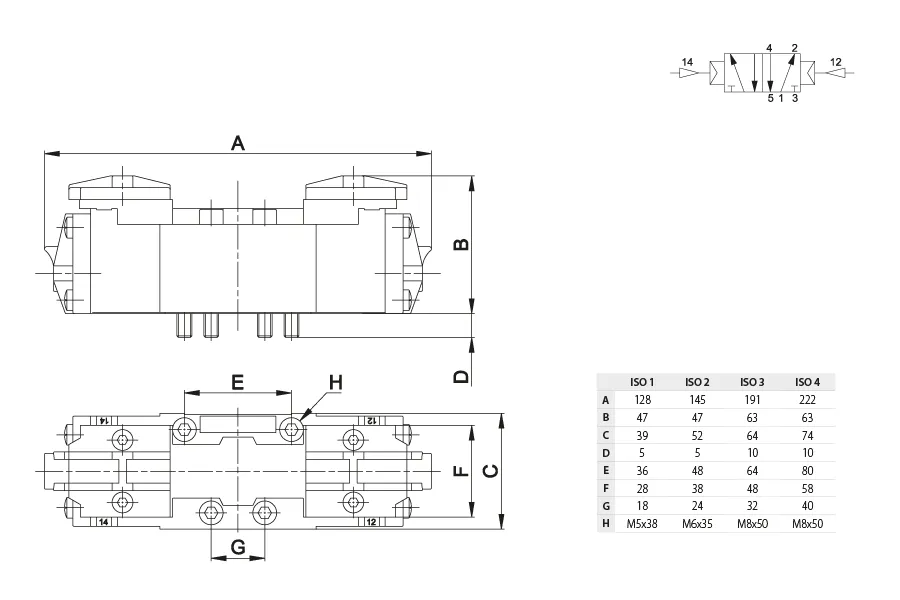

| UBE 31 50 | UBE3150 | Request access | Mixed | 5/2 | 1 | pneumatic amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 5 | 5 | 0.66 (0.30) | ||
| UBE 41 50 | UBE4150 | Request access | Mixed | 5/2 | 2 | pneumatic amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 6 | 6 | 0.88 (0.40) | ||
| UBE 51 50 | UBE5150 | Request access | Mixed | 5/2 | 3 | pneumatic amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 10 | 10 | 1.43 (0.65) | ||
| UBE 61 50 | UBE6150 | Request access | Mixed | 5/2 | 4 | pneumatic amplified | pneumatic amplified | 19 ÷ 145 (1.3 ÷ 10) | 12 | 12 | 1.92 (0.87) | ||
| UBE 31 70 | UBE3170 | Request access | Mixed | 5/2 | 1 | pneumatic amplified | pneumatic non-amplified (differential) | 29 ÷ 145 (2 ÷ 10) | 5 | 16 | 0.66 (0.30) | ||
| UBE 41 70 | UBE4170 | Request access | Mixed | 5/2 | 2 | pneumatic amplified | pneumatic non-amplified (differential) | 29 ÷ 145 (2 ÷ 10) | 6 | 13 | 0.88 (0.40) | ||
| UBE 51 70 | UBE5170 | Request access | Mixed | 5/2 | 3 | pneumatic amplified | pneumatic non-amplified (differential) | 32 ÷ 145 (2.2 ÷ 10) | 10 | 35 | 1.43 (0.65) | ||
| UBE 61 70 | UBE6170 | Request access | Mixed | 5/2 | 4 | pneumatic amplified | pneumatic non-amplified (differential) | 32 ÷ 145 (2.2 ÷ 10) | 12 | 32 | 1.92 (0.87) | ||
| UBE 38 00 | UBE3800 | Request access | Spool | 5/2 | 1 | pneumatic amplified | pneumatic + spring | 26 ÷ 145 (1.8 ÷ 10) | 11 | 22 | 0.66 (0.30) | ||
| UBE 48 00 | UBE4800 | Request access | Spool | 5/2 | 2 | pneumatic amplified | pneumatic + spring | 29 ÷ 145 (2 ÷ 10) | 13 | 19 | 0.88 (0.40) | ||
| UBE 58 00 | UBE5800 | Request access | Spool | 5/2 | 3 | pneumatic amplified | pneumatic + spring | 32 ÷ 145 (2.2 ÷ 10) | 21 | 52 | 1.43 (0.65) | ||
| UBE 68 00 | UBE6800 | Request access | Spool | 5/2 | 4 | pneumatic amplified | pneumatic + spring | 41 ÷ 145 (2.8 ÷ 10) | 24 | 29 | 1.92 (0.87) | ||

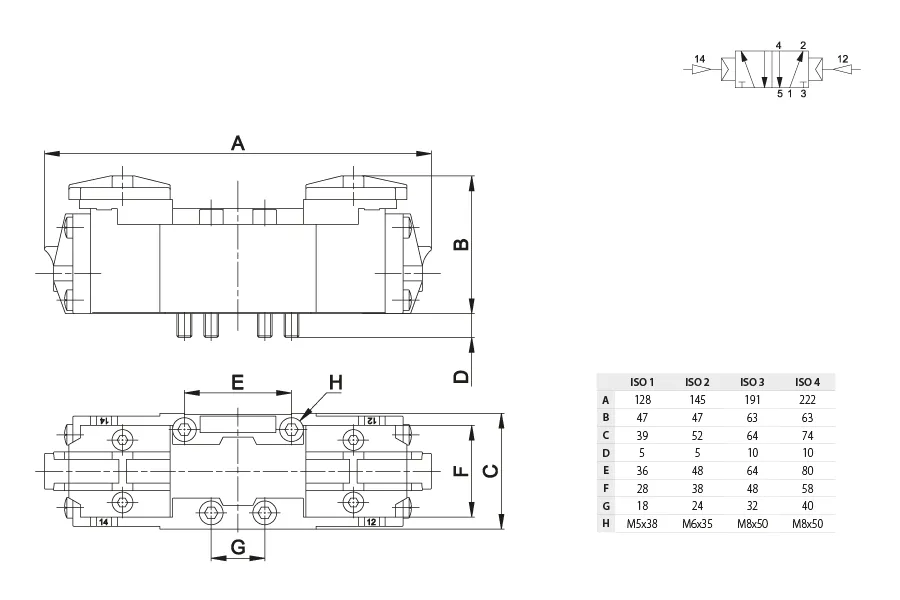

| UBE 38 50 | UBE3850 | Request access | Spool | 5/2 | 1 | pneumatic amplified | pneumatic amplified | 12 ÷ 145 (0.8 ÷ 10) | 6 | 6 | 0.66 (0.30) | ||
| UBE 48 50 | UBE4850 | Request access | Spool | 5/2 | 2 | pneumatic amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 7 | 7 | 0.88 (0.40) | ||
| UBE 58 50 | UBE5850 | Request access | Spool | 5/2 | 3 | pneumatic amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 12 | 12 | 1.43 (0.65) | ||
| UBE 68 50 | UBE6850 | Request access | Spool | 5/2 | 4 | pneumatic amplified | pneumatic amplified | 15 ÷ 145 (1 ÷ 10) | 14 | 14 | 1.92 (0.87) | ||

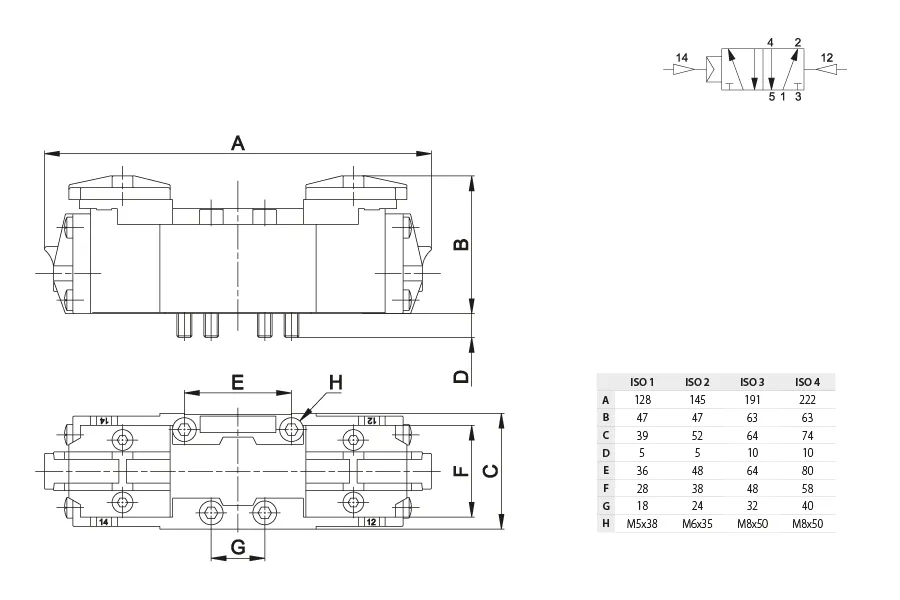

| UBE 38 70 | UBE3870 | Request access | Spool | 5/2 | 1 | pneumatic amplified | pneumatic non-amplified (differential) | 22 ÷ 145 (1.5 ÷ 10) | 6 | 15 | 0.66 (0.30) | ||
| UBE 48 70 | UBE4870 | Request access | Spool | 5/2 | 2 | pneumatic amplified | pneumatic non-amplified (differential) | 26 ÷ 145 (1.8 ÷ 10) | 7 | 14 | 0.88 (0.40) | ||
| UBE 58 70 | UBE5870 | Request access | Spool | 5/2 | 3 | pneumatic amplified | pneumatic non-amplified (differential) | 29 ÷ 145 (2 ÷ 10) | 12 | 38 | 1.43 (0.65) | ||
| UBE 68 70 | UBE6870 | Request access | Spool | 5/2 | 4 | pneumatic amplified | pneumatic non-amplified (differential) | 29 ÷ 145 (2 ÷ 10) | 14 | 31 | 1.92 (0.87) |
