| Code | USA Ref | 3D Drawings | Drawing | System | Way | Function | Size ISO | Control 14 | Return 12 | Pressure psi (bar) | Response Time (ms) En. | Response Time (ms) De-en. | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

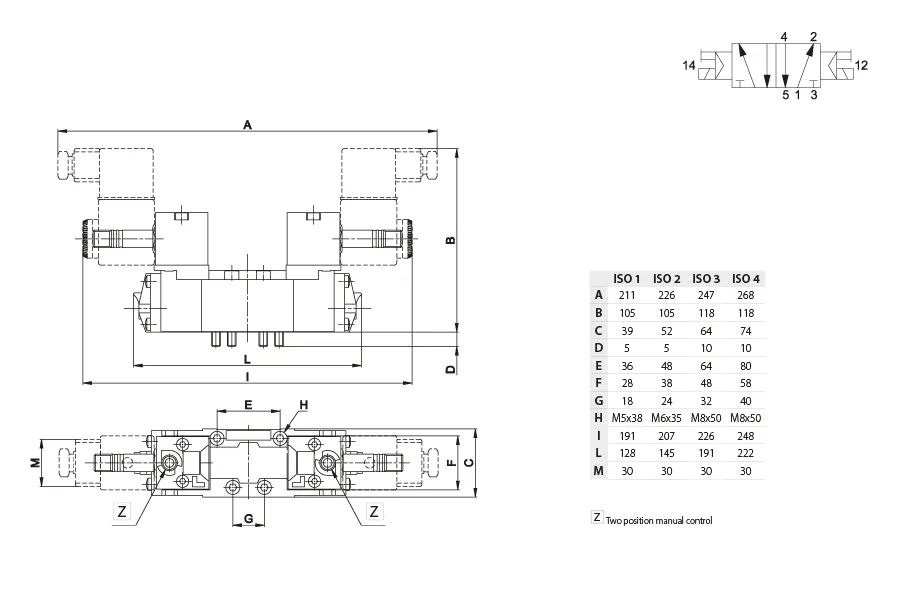

| UBE 30 20 | UBE3020 | Request access | Mixed | 5/2 | 1 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 16 | 16 | 0.86 (0.39) | |||
| UBE 40 20 | UBE4020 | Request access | Mixed | 5/2 | 2 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 17 | 17 | 1.41 (0.64) | |||
| UBE 50 20 | UBE5020 | Request access | Mixed | 5/2 | 3 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 23 | 23 | 2.29 (1.04) | |||
| UBE 60 20 | UBE6020 | Request access | Mixed | 5/2 | 4 | electric amplified | electric amplified | 19 ÷ 145 (1.3 ÷ 10) | 25 | 25 | 2.67 (1.21) | |||
| UBE 30 30 | UBE3030 | Request access | Mixed | 5/2 | 1 | electric amplified | electric unamplified (differential) | 29 ÷ 145 (2 ÷ 10) | 16 | 34 | 0.86 (0.39) | |||
| UBE 40 30 | UBE4030 | Request access | Mixed | 5/2 | 2 | electric amplified | electric unamplified (differential) | 29 ÷ 145 (2 ÷ 10) | 17 | 29 | 1.41 (0.64) | |||
| UBE 50 30 | UBE5030 | Request access | Mixed | 5/2 | 3 | electric amplified | electric unamplified (differential) | 32 ÷ 145 (2.2 ÷ 10) | 23 | 54 | 2.29 (1.04) | |||
| UBE 60 30 | UBE6030 | Request access | Mixed | 5/2 | 4 | electric amplified | electric unamplified (differential) | 32 ÷ 145 (2.2 ÷ 10) | 25 | 45 | 2.67 (1.21) | |||
| UBE 32 00 | UBE3200 | Request access | Mixed | 5/3 | OC | 1 | electric amplified | electric amplified | 44 ÷ 145 (3 ÷ 10) | 50 | 26 | 0.86 (0.39) | ||
| UBE 42 00 | UBE4200 | Request access | Mixed | 5/3 | OC | 2 | electric amplified | electric amplified | 44 ÷ 145 (3 ÷ 10) | 54 | 24 | 1.41 (0.64) | ||
| UBE 52 00 | UBE5200 | Request access | Mixed | 5/3 | OC | 3 | electric amplified | electric amplified | 44 ÷ 145 (3 ÷ 10) | 108 | 36 | 2.29 (1.04) | ||
| UBE 62 00 | UBE6200 | Request access | Mixed | 5/3 | OC | 4 | electric amplified | electric amplified | 44 ÷ 145 (3 ÷ 10) | 115 | 115 | 2.67 (1.21) | ||

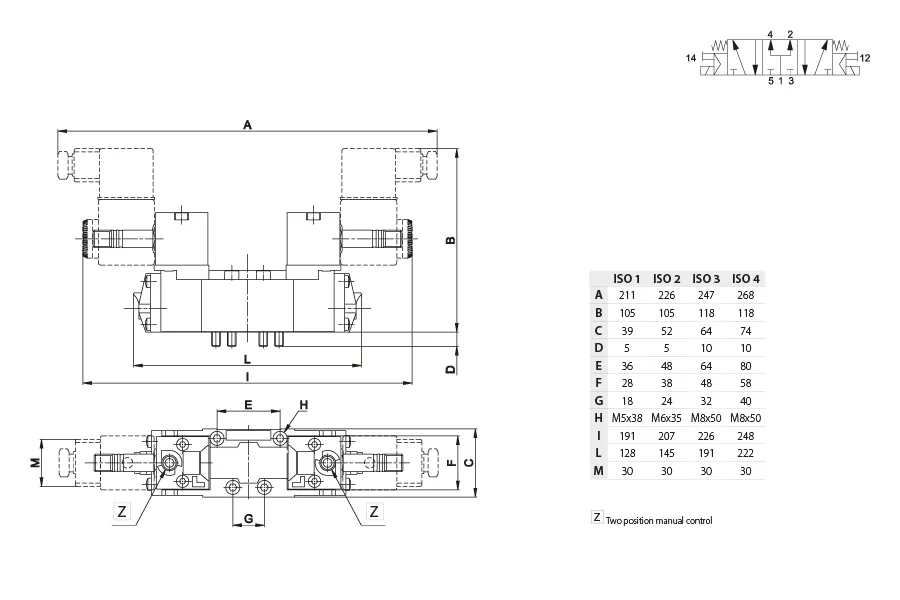

| UBE 32 05 | UBE3205 | Request access | Mixed | 5/3 | PC | 1 | electric amplified | electric amplified | 29 ÷ 145 (2 ÷ 10) | 50 | 26 | 0.86 (0.39) | ||
| UBE 42 05 | UBE4205 | Request access | Mixed | 5/3 | PC | 2 | electric amplified | electric amplified | 33 ÷ 145 (2.3 ÷ 10) | 54 | 24 | 1.41 (0.64) | ||
| UBE 52 05 | UBE5205 | Request access | Mixed | 5/3 | PC | 3 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 108 | 36 | 2.29 (1.04) | ||
| UBE 62 05 | UBE6205 | Request access | Mixed | 5/3 | PC | 4 | electric amplified | electric amplified | 44 ÷ 145 (3 ÷ 10) | 115 | 115 | 2.67 (1.21) | ||
| UBE 37 20 | UBE3720 | Request access | Spool | 5/2 | 1 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 17 | 17 | 0.86 (0.39) | |||
| UBE 47 20 | UBE4720 | Request access | Spool | 5/2 | 2 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 18 | 18 | 1.41 (0.64) | |||
| UBE 57 20 | UBE5720 | Request access | Spool | 5/2 | 3 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 26 | 26 | 2.29 (1.04) | |||
| UBE 67 20 | UBE6720 | Request access | Spool | 5/2 | 4 | electric amplified | electric amplified | 15 ÷ 145 (1 ÷ 10) | 27 | 27 | 2.67 (1.21) | |||
| UBE 37 30 | UBE3730 | Request access | Spool | 5/2 | 1 | electric amplified | electric unamplified (differential) | 26 ÷ 145 (1.8 ÷ 10) | 17 | 28 | 0.86 (0.39) | |||
| UBE 47 30 | UBE4730 | Request access | Spool | 5/2 | 2 | electric amplified | electric unamplified (differential) | 26 ÷ 145 (1.8 ÷ 10) | 18 | 25 | 1.41 (0.64) | |||
| UBE 57 30 | UBE5730 | Request access | Spool | 5/2 | 3 | electric amplified | electric unamplified (differential) | 36 ÷ 145 (2.5 ÷ 10) | 26 | 46 | 2.29 (1.04) | |||
| UBE 67 30 | UBE6730 | Request access | Spool | 5/2 | 4 | electric amplified | electric unamplified (differential) | 36 ÷ 145 (2.5 ÷ 10) | 27 | 42 | 2.67 (1.21) | |||

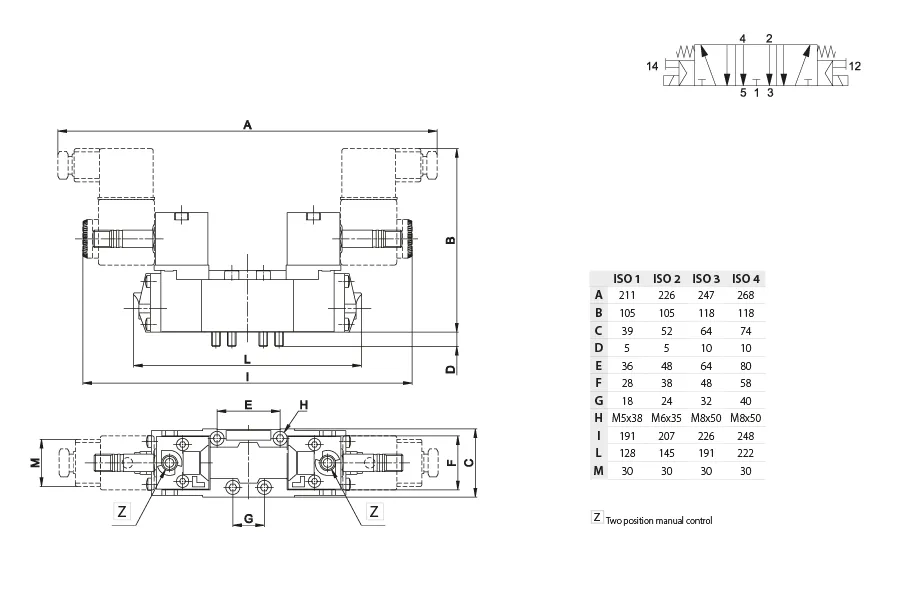

| UBE 39 00 | UBE3900 | Request access | Spool | 5/3 | OC | 1 | electric amplified | electric amplified | 33 ÷ 145 (2.3 ÷ 10) | 17 | 25 | 0.86 (0.39) | ||
| UBE 49 00 | UBE4900 | Request access | Spool | 5/3 | OC | 2 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 18 | 27 | 1.41 (0.64) | ||
| UBE 59 00 | UBE5900 | Request access | Spool | 5/3 | OC | 3 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 26 | 50 | 2.29 (1.04) | ||
| UBE 69 00 | UBE6900 | Request access | Spool | 5/3 | OC | 4 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 30 | 47 | 2.67 (1.21) | ||
| UBE 39 40 | UBE3940 | Request access | Spool | 5/3 | CC | 1 | electric amplified | electric amplified | 33 ÷ 145 (2.3 ÷ 10) | 17 | 25 | 0.86 (0.39) | ||
| UBE 49 40 | UBE4940 | Request access | Spool | 5/3 | CC | 2 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 18 | 27 | 1.41 (0.64) | ||
| UBE 59 40 | UBE5940 | Request access | Spool | 5/3 | CC | 3 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 26 | 50 | 2.29 (1.04) | ||
| UBE 69 40 | UBE6940 | Request access | Spool | 5/3 | CC | 4 | electric amplified | electric amplified | 36 ÷ 145 (2.5 ÷ 10) | 30 | 47 | 2.67 (1.21) |
