82850

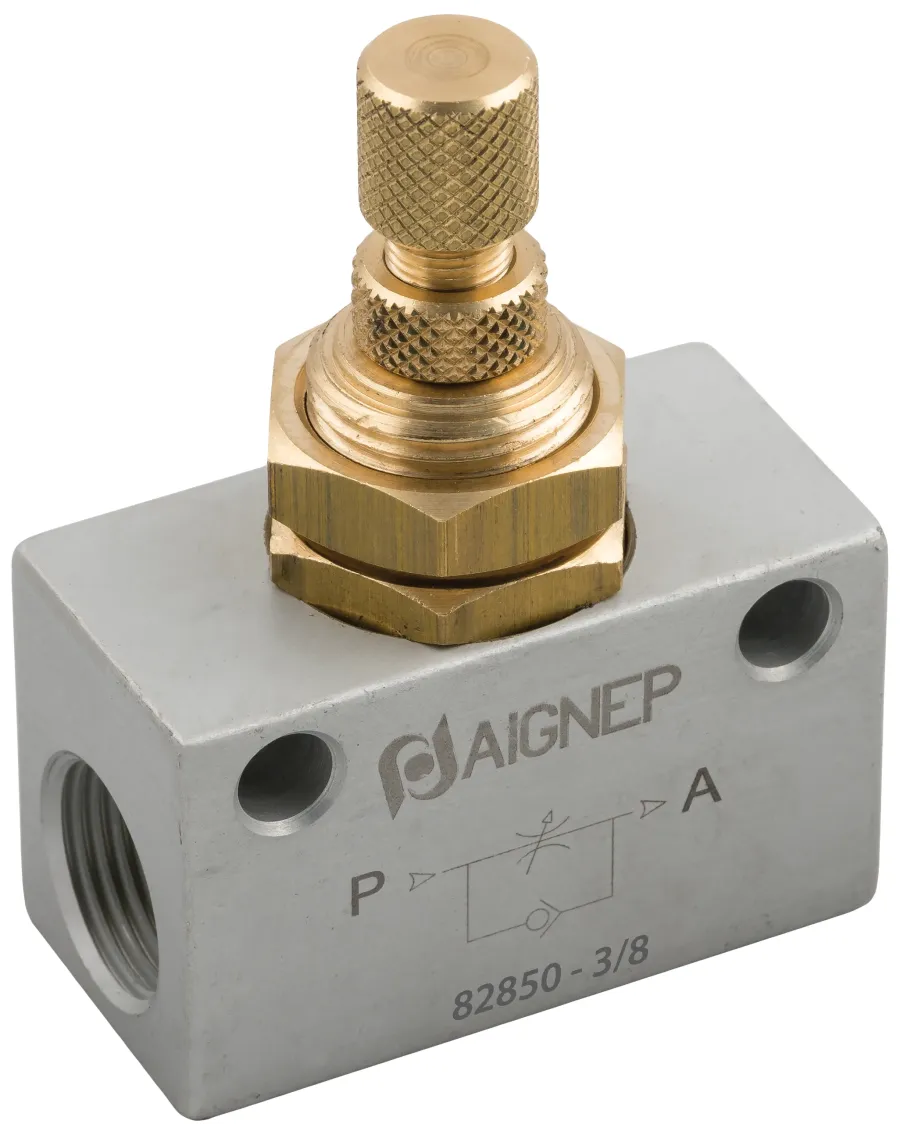

UNI-DIRECTIONAL INLINE VALVE - FEMALE NPTF

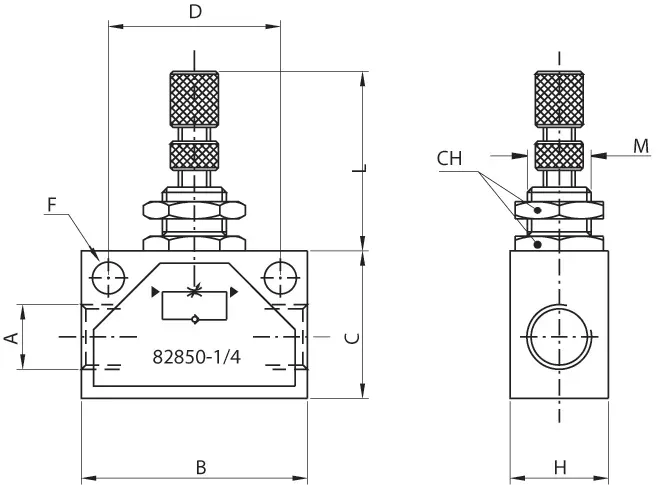

| Code | USA Ref | 3D Drawings | A NPTF | B | C | H | D | F | Lmin | Lmax | M | CH | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82850 00 001 | 82850-02 | Request access | 1/8 | 1.378 (35) | 0.866 (22) | 0.709 (18) | 0.984 (25) | 0.177 (4.5) | 1.024 (26) | 1.417 (36) | M12X0,75 | 0.591 (15) | 10 | |
| 82850 00 002 | 82850-04 | Request access | 1/4 | 1.811 (46) | 1.181 (30) | 0.787 (20) | 1.378 (35) | 0.256 (6.5) | 1.024 (26) | 1.417 (36) | M12X0,75 | 0.591 (15) | 10 | |
| 82850 00 003 | 82850-06 | Request access | 3/8 | 1.969 (50) | 1.181 (30) | 0.984 (25) | 1.378 (35) | 0.256 (6.5) | 1.260 (32) | 1.654 (42) | M18X1,5 | 0.866 (22) | 10 | |
| 82850 00 004 | 82850-08 | Request access | 1/2 | 2.362 (60) | 1.575 (40) | 0.984 (25) | 1.732 (44) | 0.256 (6.5) | 1.260 (32) | 1.732 (44) | M18X1,5 | 0.866 (22) | 10 |
