85955

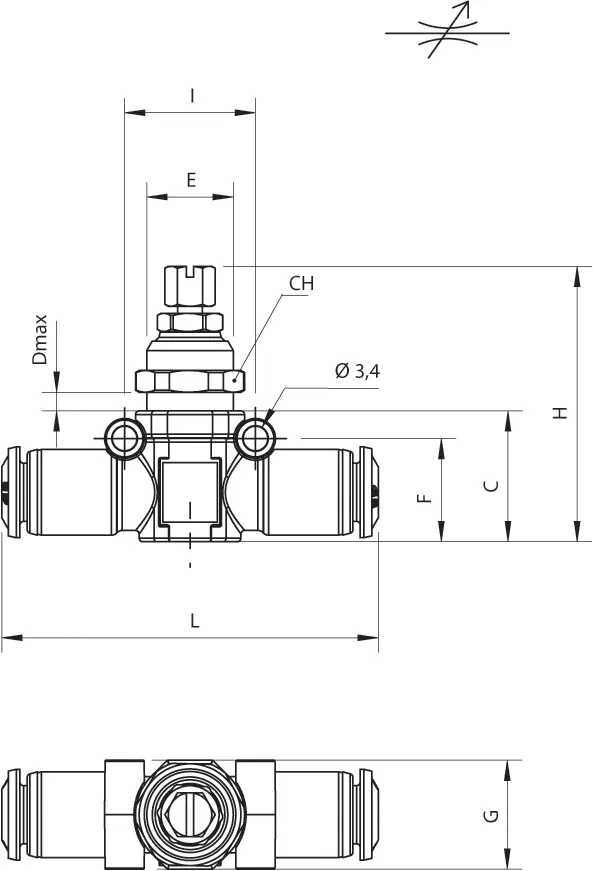

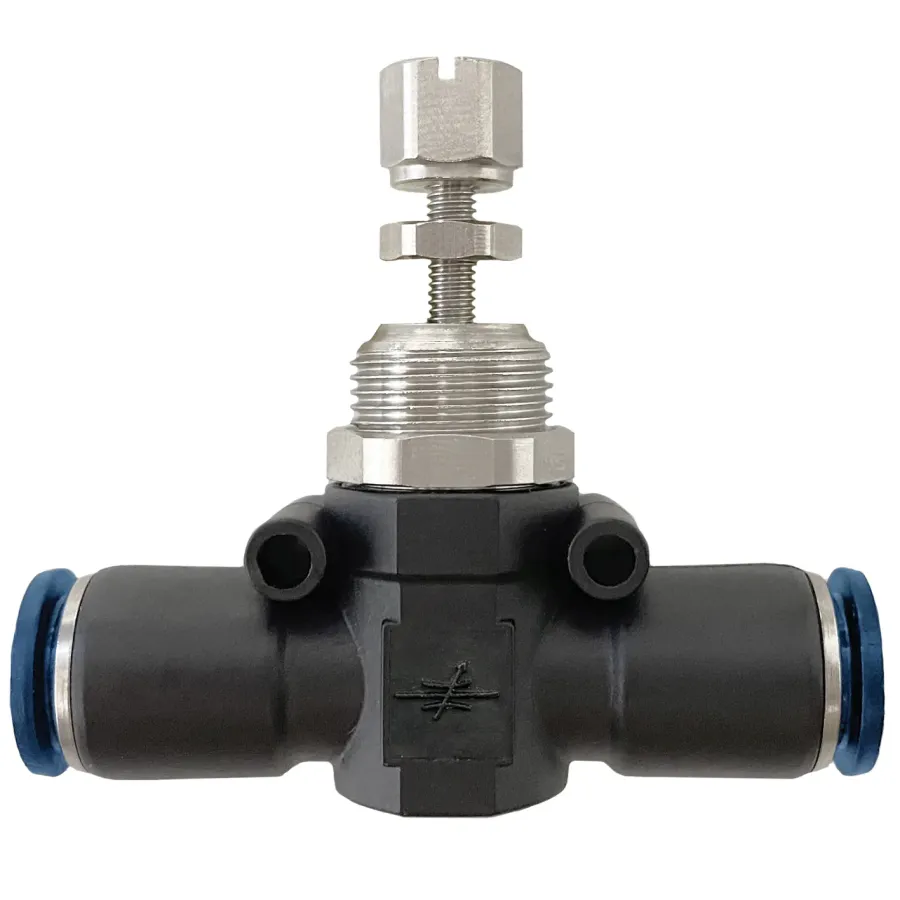

TUBE IN-LINE NEEDLE VALVE (BI-DIRECTIONAL FLOW) - MANUAL REGULATION
| Code | USA Ref | 3D Drawings | Tube | C | D | E | F | G | H | I | L | CH | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85955 00 003 | 85955-53 | Request access | 5/32 (4) | 0.709 (18) | 0.236 (6) | M12X1 | 0.571 (14.5) | 0.591 (15) | 1.476 (37.5) ÷ 1.712 (43.5) | 0.709 (18) | 2.047 (52) | 0.551 (14) | 10 | |
| 85955 00 001 | 85955-04 | Request access | 1/4 | 0.709 (18) | 0.236 (6) | M12X1 | 0.571 (14.5) | 0.591 (15) | 1.476 (37.5) ÷ 1.712 (43.5) | 0.709 (18) | 2.047 (52) | 0.551 (14) | 10 | |
| 85955 00 004 | 85955-05 | Request access | 5/16 (8) | 0.787 (20) | 0.256 (6.5) | M14X1 | 0.650 (16.5) | 0.669 (17) | 1.555 (39.5) ÷ 1.791 (45.5) | 0.787 (20) | 2.283 (58) | 0.630 (16) | 10 | |
| 85955 00 002 | 85955-06 | Request access | 3/8 | 0.925 (23.5) | 0.315 (8) | M16X1 | 0.768 (19.5) | 0.748 (19) | 1.870 (47.5) ÷ 2.106 (53.5) | 0.886 (22.5) | 2.638 (67) | 0.709 (18) | 10 |
