50927N

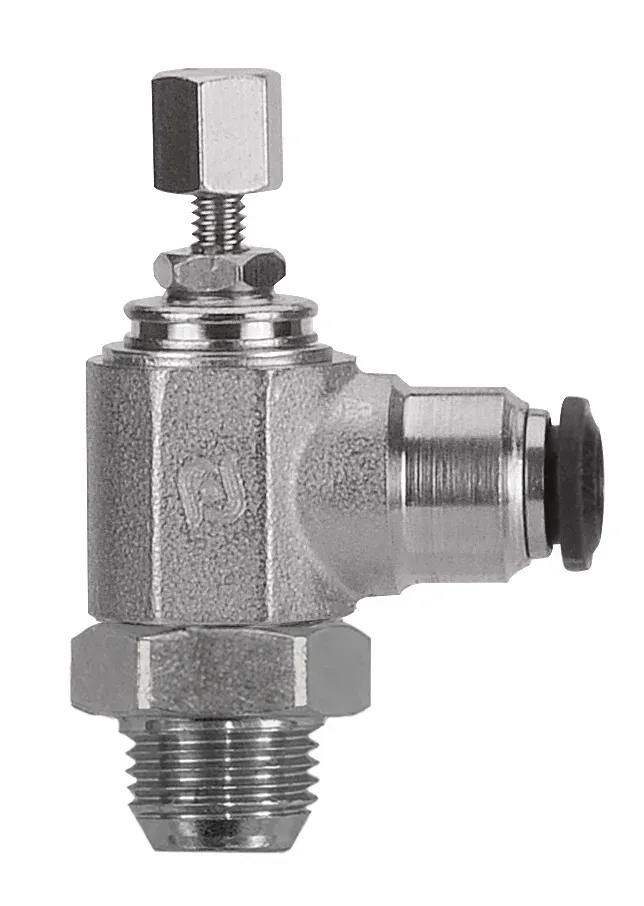

METRIC TUBE NEEDLE VALVE - PTF - MANUAL REGULATION

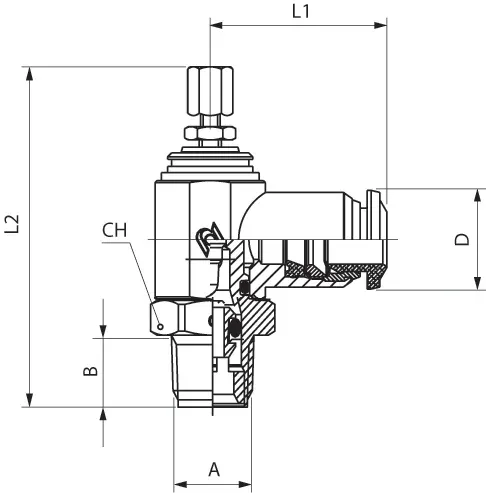

| Code | USA Ref | 3D Drawings | Tube | A (PTF) | B | L1 | L2 min | L2 max | CH | D | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50927 00 N01 | 50927N-4-1/8 | Request access | 5/32 (4) | 1/8 | 0.240 (6.1) | 0.827 (21) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.394 (10) | 10 | |
| 50927 00 N02 | 50927N-5-1/8 | Request access | 5 | 1/8 | 0.240 (6.1) | 0.846 (21.5) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.492 (12.5) | 10 | |
| 50927 00 N03 | 50927N-5-1/4 | Request access | 5 | 1/4 | 0.358 (9.1) | 0.965 (24.5) | 1.909 (48.5) | 2.165 (55) | 0.669 (17) | 0.492 (12.5) | 10 | |
| 50927 00 N04 | 50927N-6-1/8 | Request access | 6 | 1/8 | 0.240 (6.1) | 0.886 (22.5) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.492 (12.5) | 10 | |
| 50927 00 N05 | 50927N-6-1/4 | Request access | 6 | 1/4 | 0.358 (9.1) | 0.984 (25) | 1.909 (48.5) | 2.165 (55) | 0.669 (17) | 0.492 (12.5) | 10 | |
| 50927 00 N06 | 50927N-8-1/8 | Request access | 5/16 (8) | 1/8 | 0.240 (6.1) | 0.945 (24) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.551 (14) | 10 | |
| 50927 00 N07 | 50927N-8-1/4 | Request access | 5/16 (8) | 1/4 | 0.358 (9.1) | 1.024 (26) | 1.909 (48.5) | 2.165 (55) | 0.669 (17) | 0.551 (14) | 10 |
