55907

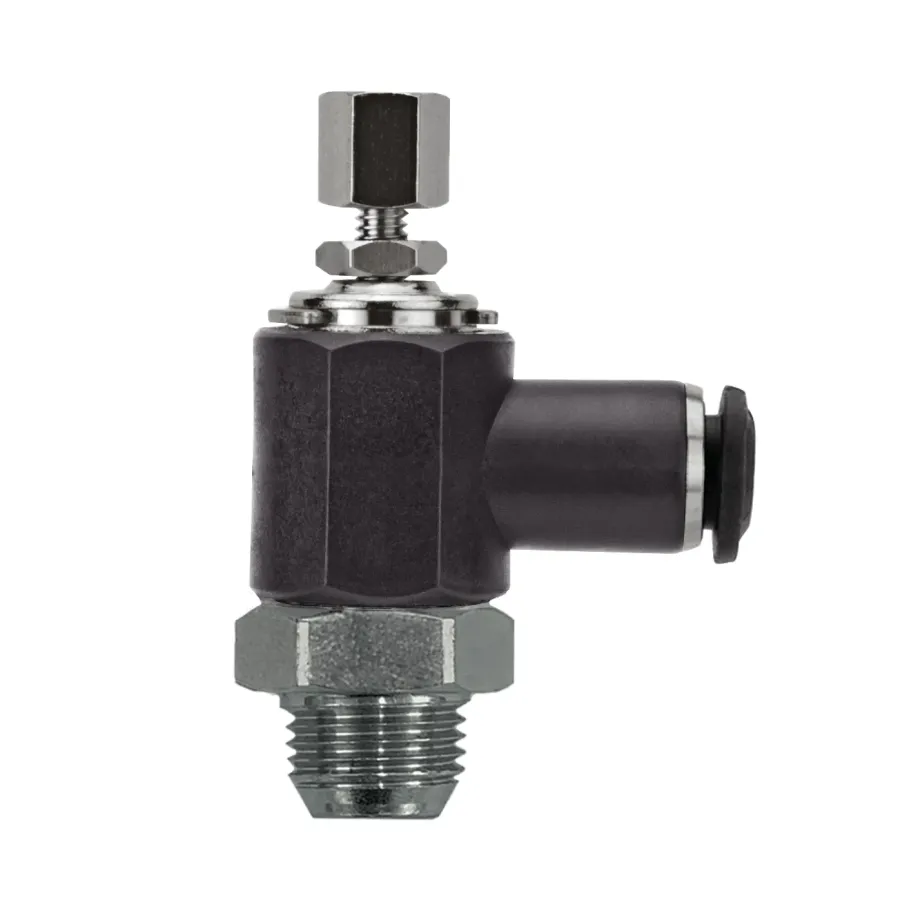

METRIC TUBE FLOW CONTROL (OUT) - PTF - MANUAL REGULATION

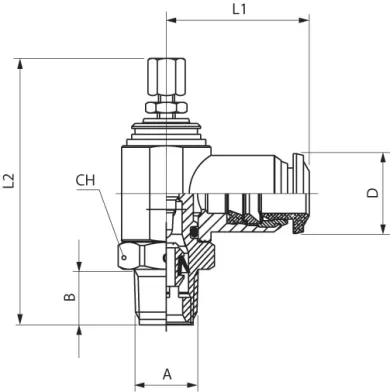

| Code | USA Ref | 3D Drawings | Tube | A (PTF) | B | L1 | L2min | L2max | CH | D | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55907 00 001 | 55907-4-1/8 | Request access | 5/32 (4) | 1/8 | 0.240 (6.1) | 0.846 (21.5) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.394 (10) | 10 | |
| 55907 00 002 | 55907-5-1/8 | Request access | 5 | 1/8 | 0.240 (6.1) | 0.886 (22.5) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.492 (12.5) | 10 | |
| 55907 00 003 | 55907-5-1/4 | Request access | 5 | 1/4 | 0.358 (9.1) | 0.984 (25) | 1.909 (48.5) | 2.165 (55) | 0.669 (17) | 0.492 (12.5) | 10 | |
| 55907 00 004 | 55907-6-1/8 | Request access | 6 | 1/8 | 0.240 (6.1) | 0.906 (23) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.492 (12.5) | 10 | |
| 55907 00 005 | 55907-6-1/4 | Request access | 6 | 1/4 | 0.358 (9.1) | 1.004 (25.5) | 1.909 (48.5) | 2.165 (55) | 0.669 (17) | 0.492 (12.5) | 10 | |
| 55907 00 006 | 55907-8-1/8 | Request access | 5/16 (8) | 1/8 | 0.240 (6.1) | 0.925 (23.5) | 1.732 (44) | 1.929 (49) | 0.551 (14) | 0.551 (14) | 10 | |
| 55907 00 007 | 55907-8-1/4 | Request access | 5/16 (8) | 1/4 | 0.358 (9.1) | 1.024 (26) | 1.909 (48.5) | 2.165 (55) | 0.669 (17) | 0.551 (14) | 10 |
