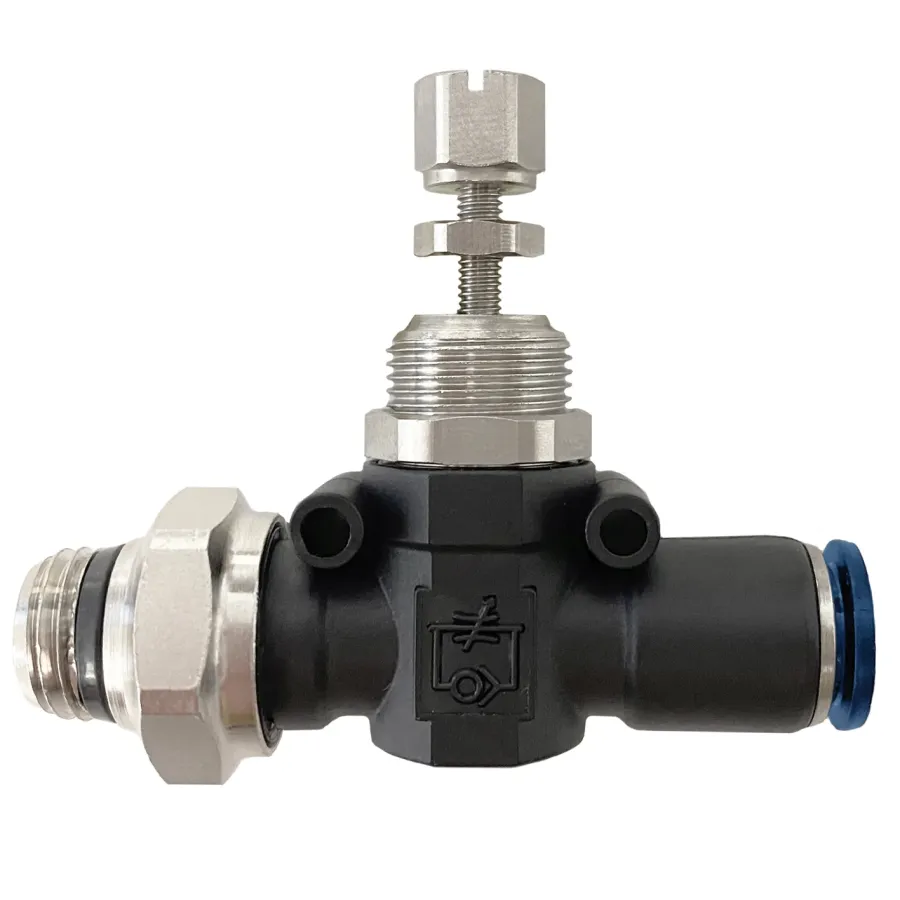

MALE SWIFTFIT - TUBE IN-LINE FLOW CONTROL (CONTROLLED FLOW OUT) - UNIDIRECTIONAL - MANUAL REGULATION

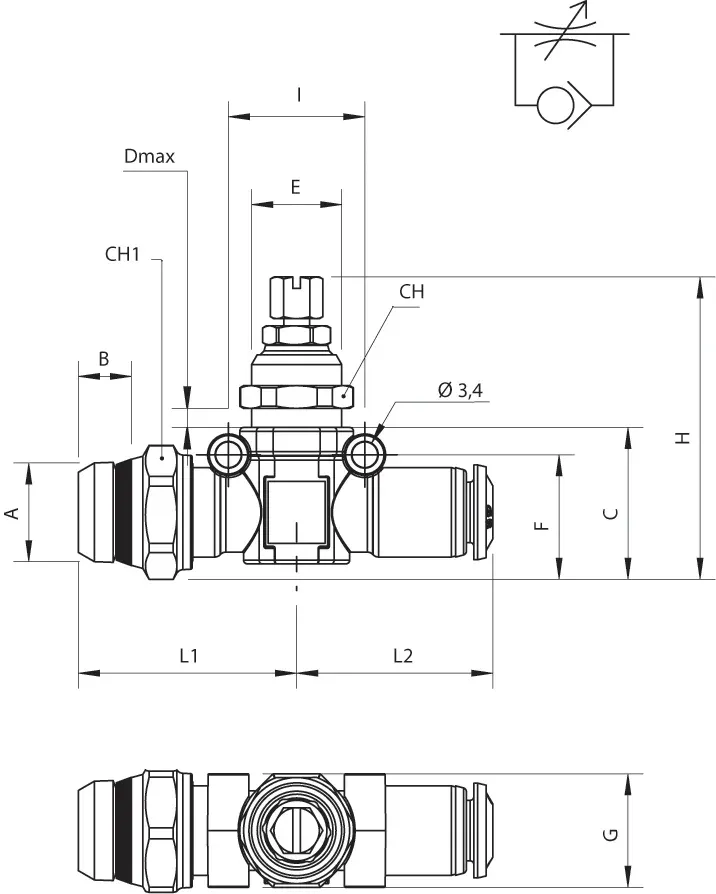

| Code | USA Ref | 3D Drawings | Tube | A | B | C | D | E | F | G | H | I | L1 | L2 | CH | CH1 | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85945 00 005 | 85945-53-02 | Request access | 5/32 (4) | 1/8 | 0.217 (5.5) | 0.787 (20) | 0.236 (6) | M12X1 | 0.650 (16.5) | 0.591 (15) | 1.555 (39.5) ÷ 1.791 (45.5) | 0.709 (18) | 1.122 (28.5) | 1.024 (26) | 0.551 (14) | 0.630 (16) | 10 | |
| 85945 00 001 | 85945-04-02 | Request access | 1/4 | 1/8 | 0.217 (5.5) | 0.787 (20) | 0.236 (6) | M12X1 | 0.650 (16.5) | 0.591 (15) | 1.555 (39.5) ÷ 1.791 (45.5) | 0.709 (18) | 1.122 (28.5) | 1.024 (26) | 0.551 (14) | 0.630 (16) | 10 | |
| 85945 00 002 | 85945-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 0.787 (20) | 0.236 (6) | M12X1 | 0.650 (16.5) | 0.591 (15) | 1.555 (39.5) ÷ 1.791 (45.5) | 0.709 (18) | 1.122 (28.5) | 1.024 (26) | 0.551 (14) | 0.630 (16) | 10 | |
| 85945 00 006 | 85945-05-04 | Request access | 5/16 (8) | 1/4 | 0.276 (7) | 0.906 (23) | 0.256 (6.5) | M14X1 | 0.650 (16.5) | 0.669 (17) | 1.673 (42.5) ÷ 1.909 (48.5) | 0.787 (20) | 1.319 (33.5) | 1.142 (29) | 0.630 (16) | 0.787 (20) | 10 | |
| 85945 00 007 | 85945-05-06 | Request access | 5/16 (8) | 3/8 | 0.295 (7.5) | 0.906 (23) | 0.256 (6.5) | M14X1 | 0.650 (16.5) | 0.669 (17) | 1.673 (42.5) ÷ 1.909 (48.5) | 0.787 (20) | 1.319 (33.5) | 1.142 (29) | 0.630 (16) | 0.787 (20) | 10 | |
| 85945 00 003 | 85945-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 0.965 (24.5) | 0.315 (8) | M16X1 | 0.807 (20.5) | 0.748 (19) | 1.673 (42.5) ÷ 2.125 (54) | 0.886 (22.5) | 1.358 (34.5) | 1.319 (33.5) | 0.709 (18) | 0.787 (20) | 10 | |
| 85945 00 004 | 85945-06-08 | Request access | 3/8 | 1/2 | 0.354 (9) | 0.984 (25) | 0.315 (8) | M16X1 | 0.827 (21) | 0.748 (19) | 1.673 (42.5) ÷ 2.145 (54.5) | 0.886 (22.5) | 1.358 (34.5) | 1.319 (33.5) | 0.709 (18) | 0.827 (21) | 10 |
