82830

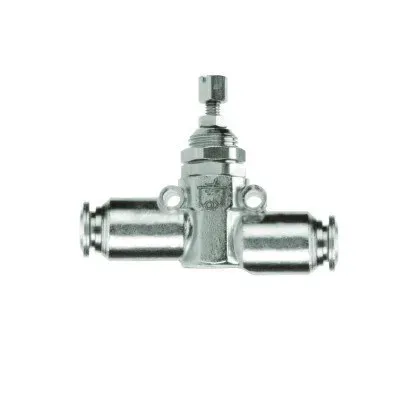

INLINE TUBE NEEDLE VALVE - MANUAL REGULATION

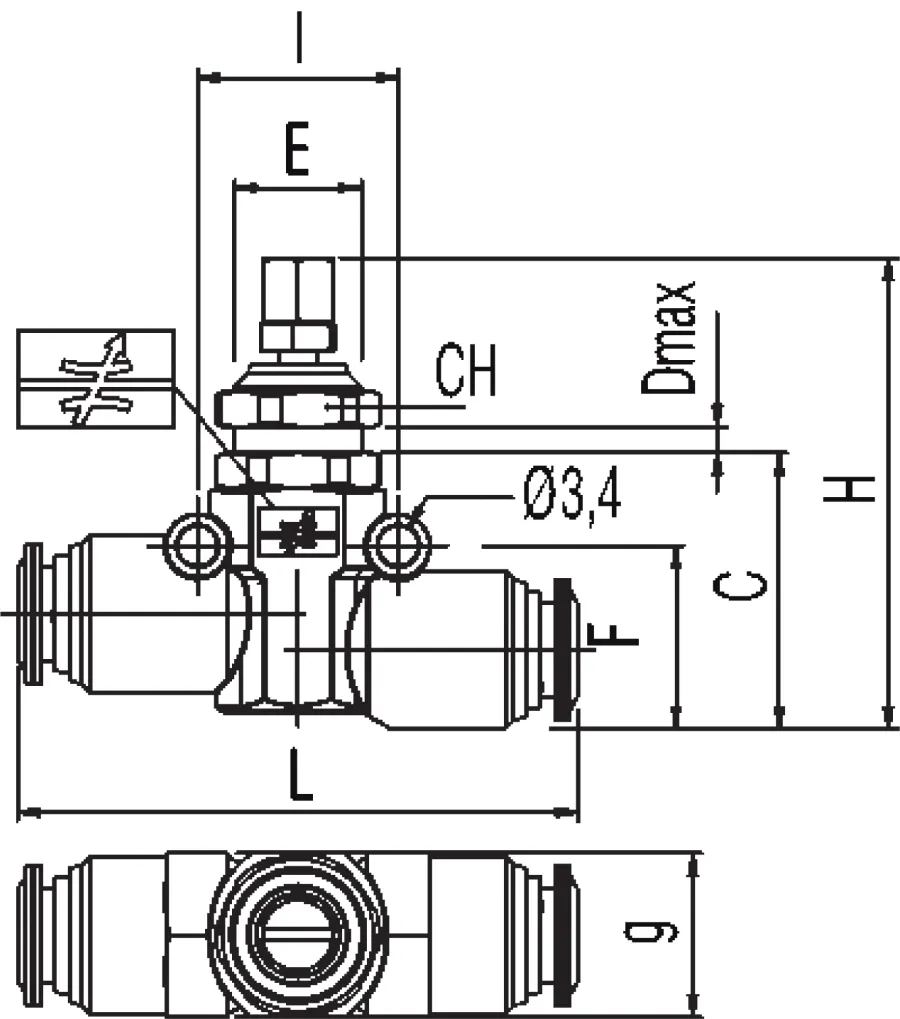

| Code | USA Ref | 3D Drawings | Tube | C | D | E | F | G | Hmin | Hmax | I | L | CH | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82830 00 003 | 82830-04 | Request access | 1/4 | 0.925 (23.5) | 0.157 (4) | M11X1 | 0.610 (15.5) | 0.551 (14) | 1.594 (40.5) | 1.831 (46.5) | 0.669 (17) | 1.890 (48) | 0.512 (13) | 10 | |
| 82830 00 004 | 82830-06 | Request access | 3/8 | 1.004 (25.5) | 0.177 (4.5) | M16X1 | 0.807 (20.5) | 0.807 (20.5) | 1.929 (49) | 2.165 (55) | 0.787 (20) | 2.264 (57.5) | 0.709 (18) | 10 |
