82820

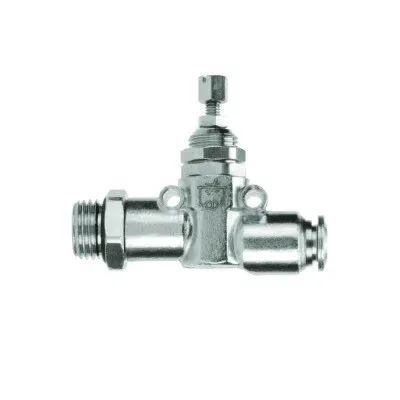

INLINE FLOW CONTROL MALE X TUBE - SWIFTFIT - MANUAL REGULATION

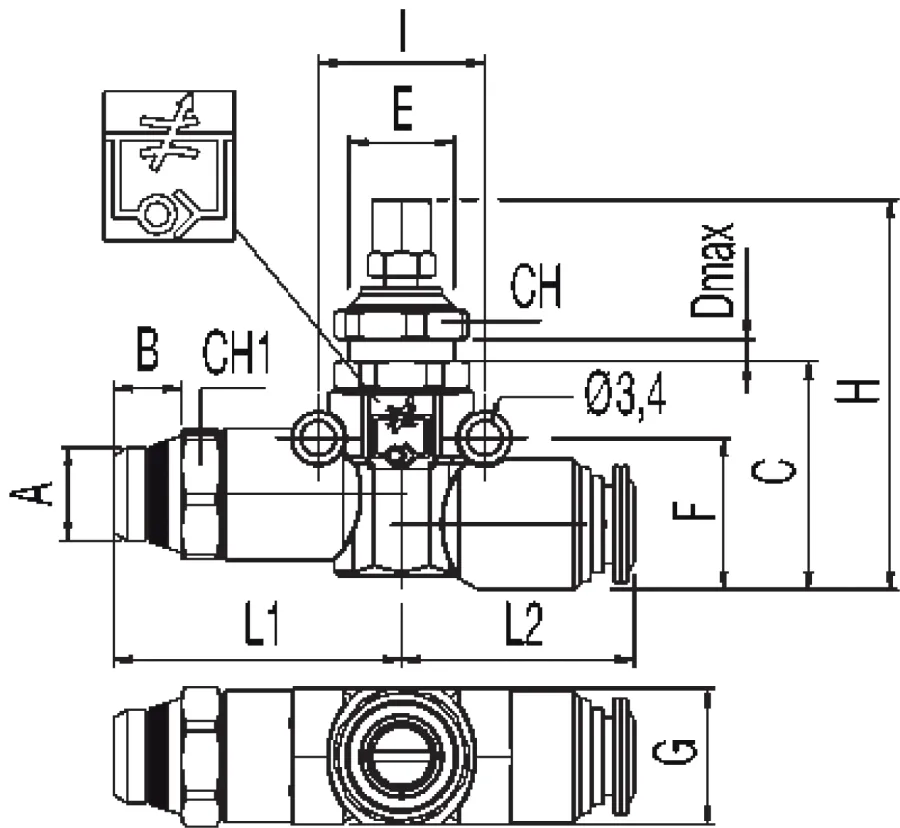

| Code | USA Ref | 3D Drawings | A | Tube | B | C | D | E | F | G | Hmin | Hmax | I | L1 | L2 | CH | CH1 | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82820 00 003 | 82820-04-04 | Request access | 1/4 | 1/4 | 0.276 (7) | 0.925 (23.5) | 0.157 (4) | M11X1 | 0.610 (15.5) | 0.551 (14) | 1.594 (40.5) | 1.831 (46.5) | 0.669 (17) | 1.161 (29.5) | 0.945 (24) | 0.512 (13) | 0.512 (13) | 10 | |
| 82820 00 006 | 82820-06-04 | Request access | 1/4 | 3/8 | 0.276 (7) | 1.004 (25.5) | 0.177 (4.5) | M16X1 | 0.807 (20.5) | 0.807 (20.5) | 1.929 (49) | 2.165 (55) | 0.787 (20) | 1.299 (33) | 1.142 (29) | 0.709 (18) | 0.512 (13) | 10 | |
| 82820 00 007 | 82820-06-06 | Request access | 3/8 | 3/8 | 0.295 (7.5) | 1.004 (25.5) | 0.177 (4.5) | M16X1 | 0.807 (20.5) | 0.807 (20.5) | 1.929 (49) | 2.165 (55) | 0.787 (20) | 1.299 (33) | 1.142 (29) | 0.709 (18) | 0.669 (17) | 10 |
