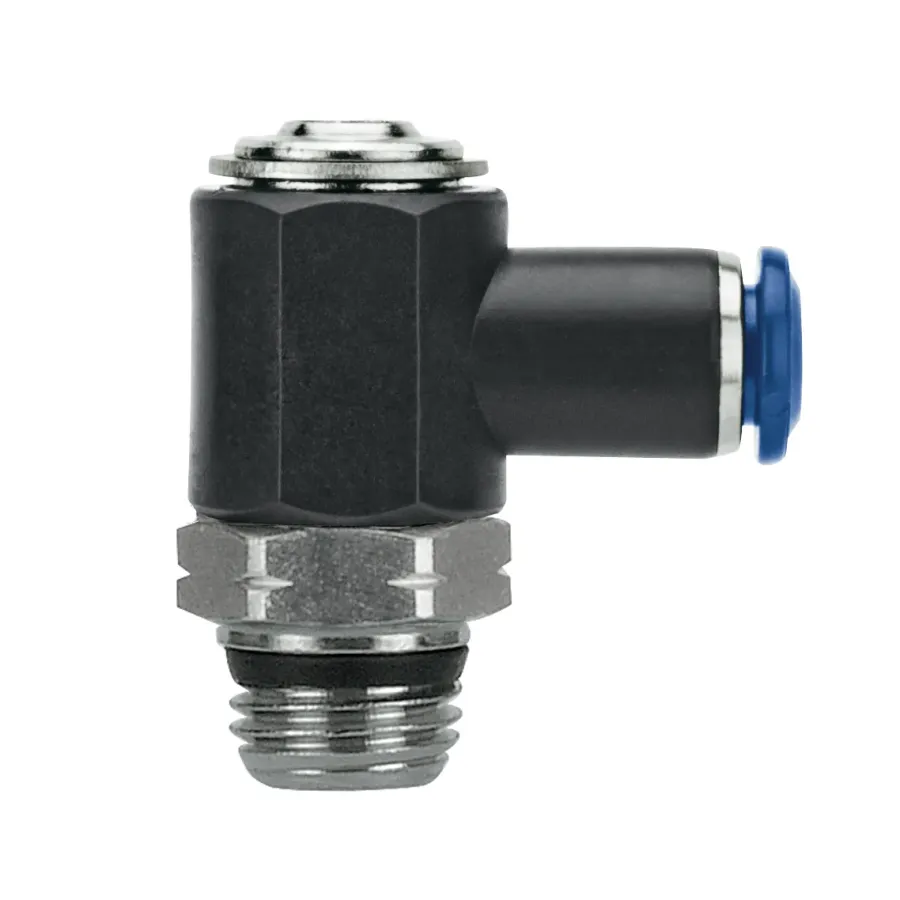

INCH TUBE FLOW CONTROL (OUT) - SWIFTFIT - SCREWDRIVER REGULATION

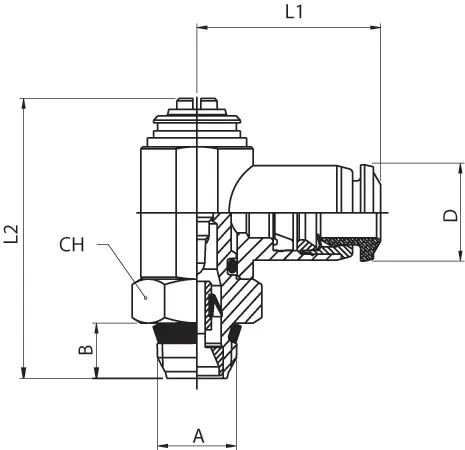

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH	D	Pack
85953 00 001	85953-02-32	Request access	1/8	10/32	0.157 (4)	0.748 (19)	0.827 (21)	0.315 (8)	0.394 (10)	10
85953 00 002	85953-02-02	Request access	1/8	1/8	0.217 (5.5)	0.827 (21)	1.201 (30.5)	0.551 (14)	0.394 (10)	10
85953 00 003	85953-53-32	Request access	5/32 (4)	10/32	0.157 (4)	0.748 (19)	0.827 (21)	0.315 (8)	0.394 (10)	10
85953 00 004	85953-53-02	Request access	5/32 (4)	1/8	0.217 (5.5)	0.827 (21)	1.201 (30.5)	0.551 (14)	0.394 (10)	10
85953 00 005	85953-04-02	Request access	1/4	1/8	0.217 (5.5)	0.866 (22)	1.201 (30.5)	0.551 (14)	0.472 (12)	10
85953 00 006	85953-04-04	Request access	1/4	1/4	0.276 (7)	0.984 (25)	1.417 (36)	0.669 (17)	0.472 (12)	10
85953 00 007	85953-06-04	Request access	3/8	1/4	0.295 (7.5)	1.201 (30.5)	1.614 (41)	0.787 (20)	0.669 (17)	10
85953 00 008	85953-06-06	Request access	3/8	3/8	0.295 (7.5)	1.201 (30.5)	1.614 (41)	0.787 (20)	0.669 (17)	10
85953 00 009	85953-08-06	Request access	1/2	3/8	0.295 (7.5)	1.280 (32.5)	1.614 (41)	0.787 (20)	0.787 (20)	10
85953 00 010	85953-08-08	Request access	1/2	1/2	0.354 (9)	1.378 (35)	1.850 (47)	0.945 (24)	0.787 (20)	10
