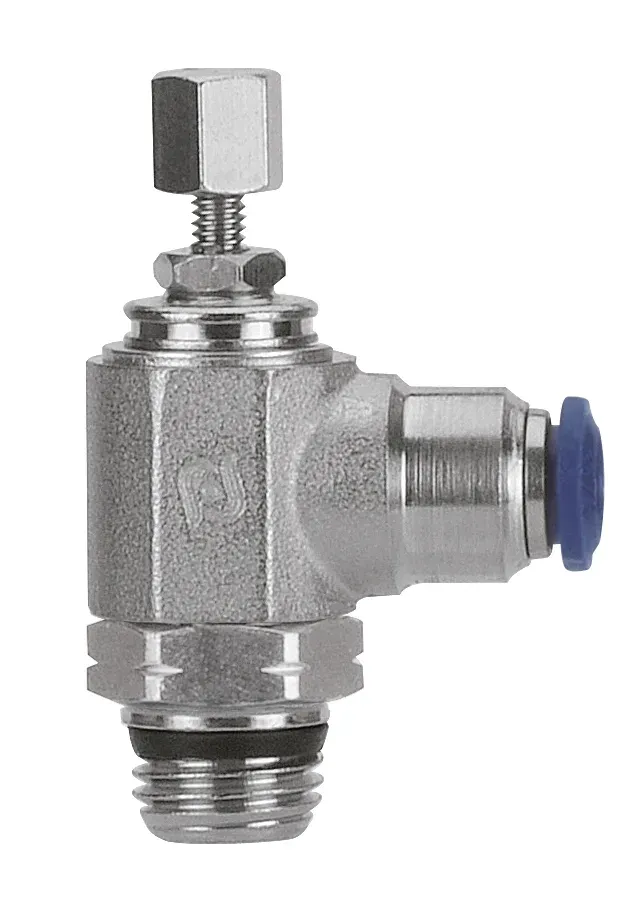

INCH TUBE FLOW CONTROL (OUT) - SWIFTFIT - MANUAL REGULATION

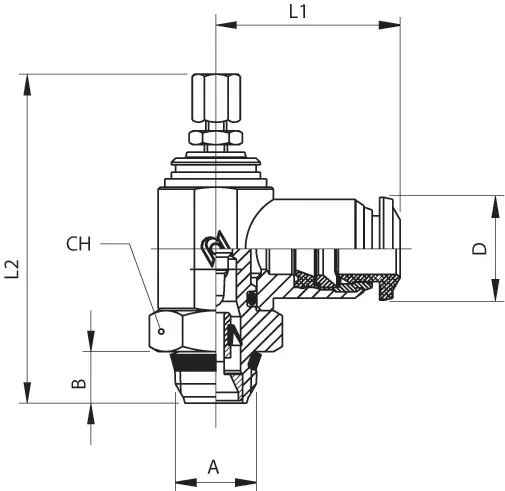

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2 min	L2 max	CH	D	Pack
88958 00 001	88958-02-32	Request access	1/8	10/32	0.157 (4)	0.748 (19)	1.299 (33)	1.476 (37.5)	0.315 (8)	0.394 (10)	10
88958 00 002	88958-02-02	Request access	1/8	1/8	0.217 (5.5)	0.827 (21)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.394 (10)	10
88958 00 003	88958-53-32	Request access	5/32 (4)	10/32	0.157 (4)	0.748 (19)	1.299 (33)	1.476 (37.5)	0.315 (8)	0.394 (10)	10
88958 00 004	88958-53-02	Request access	5/32 (4)	1/8	0.217 (5.5)	0.827 (21)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.394 (10)	10
88958 00 005	88958-04-02	Request access	1/4	1/8	0.217 (5.5)	0.866 (22)	1.614 (41)	1.831 (46.5)	0.551 (14)	0.492 (12.5)	10
88958 00 006	88958-04-04	Request access	1/4	1/4	0.276 (7)	0.984 (25)	1.850 (47)	2.087 (53)	0.669 (17)	0.492 (12.5)	10
88958 00 007	88958-06-04	Request access	3/8	1/4	0.295 (7.5)	1.201 (30.5)	2.205 (56)	2.480 (63)	0.787 (20)	0.689 (17.5)	10
88958 00 008	88958-06-06	Request access	3/8	3/8	0.295 (7.5)	1.201 (30.5)	2.205 (56)	2.480 (63)	0.787 (20)	0.689 (17.5)	10
88958 00 009	88958-08-06	Request access	1/2	3/8	0.295 (7.5)	1.280 (32.5)	2.205 (56)	2.480 (63)	0.787 (20)	0.846 (21.5)	10
88958 00 010	88958-08-08	Request access	1/2	1/2	0.354 (9)	1.378 (35)	2.402 (61)	2.717 (69)	0.945 (24)	0.846 (21.5)	10
