87917

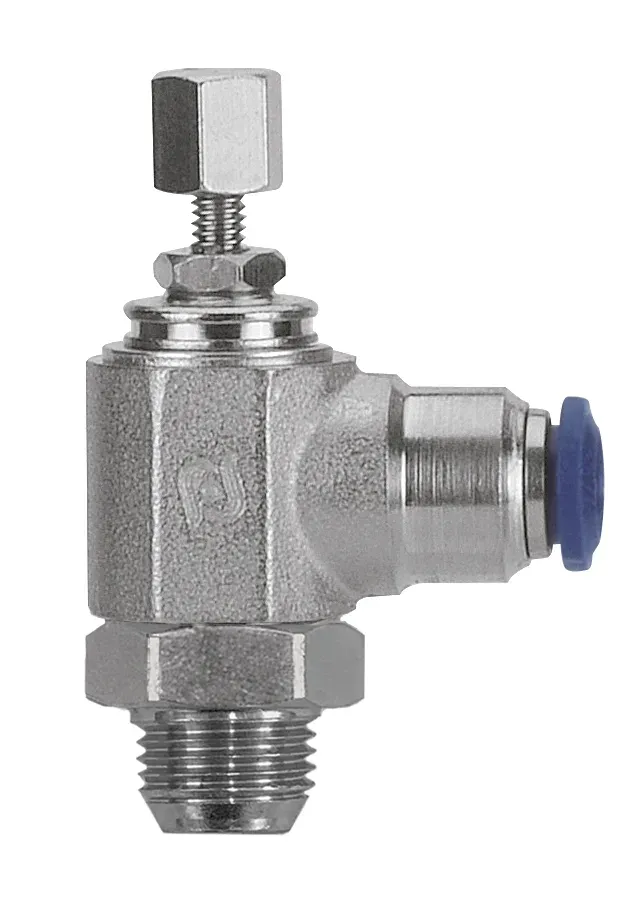

INCH TUBE FLOW CONTROL (IN) - PTF - MANUAL REGULATION

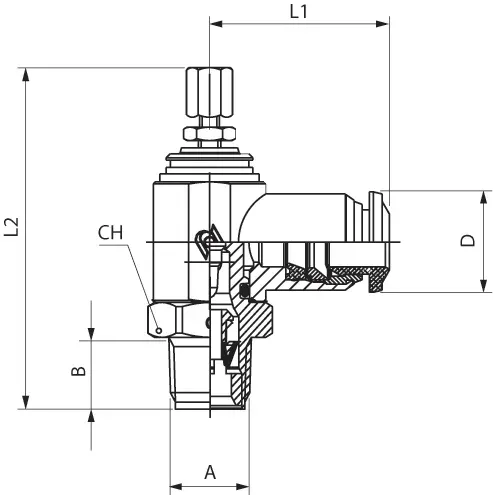

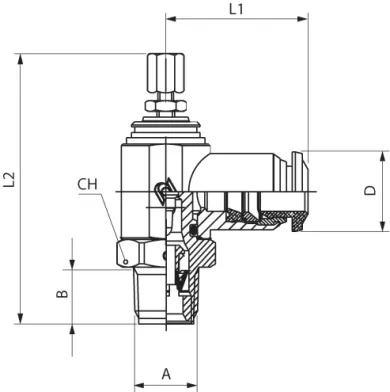

| Code | USA Ref | 3D Drawings | Tube | A (PTF) | B | L1 | L2 min | L2 max | CH | D | Pack | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 87917 00 001 | 87917-02-02 | Request access | 1/8 | 1/8 | 0.240 (6.1) | 0.827 (21) | 1.614 (41) | 1.831 (46.5) | 0.551 (14) | 0.394 (10) | 10 | |
| 87917 00 002 | 87917-53-02 | Request access | 5/32 (4) | 1/8 | 0.240 (6.1) | 0.827 (21) | 1.614 (41) | 1.831 (46.5) | 0.551 (14) | 0.394 (10) | 10 | |
| 87917 00 003 | 87917-04-02 | Request access | 1/4 | 1/8 | 0.240 (6.1) | 0.866 (22) | 1.614 (41) | 1.831 (46.5) | 0.551 (14) | 0.492 (12.5) | 10 | |
| 87917 00 004 | 87917-04-04 | Request access | 1/4 | 1/4 | 0.358 (9.1) | 0.984 (25) | 1.850 (47) | 2.087 (53) | 0.669 (17) | 0.492 (12.5) | 10 | |
| 87917 00 005 | 87917-06-04 | Request access | 3/8 | 1/4 | 0.358 (9.1) | 1.201 (30.5) | 2.205 (56) | 2.480 (63) | 0.787 (20) | 0.689 (17.5) | 10 |
