N070-MINI

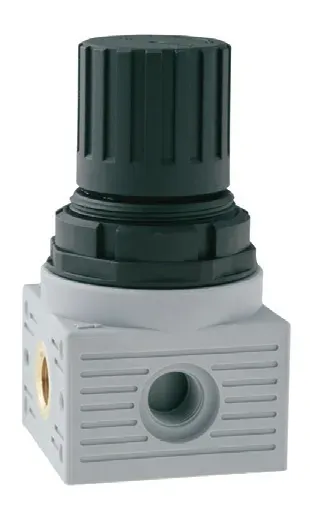

QUICK EXHAUST REGULATOR - NPTF
|

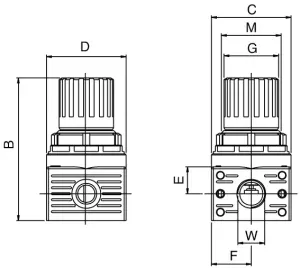

Code |
USA Ref |
3D Drawings |
Size |
Thread (NPTF) |
Regulation |
Flow Rate |
B |
C |
D |
E |
F |
G |
I |
M |
W |
|
N070 002 010 000
|
N070002010000
|
-
Request access
|
REG.S.RAP. 0 |
1/8 |
0-29 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 002 020 000
|
N070002020000
|
-
Request access
|
REG.S.RAP. 0 |
1/8 |
0-58 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 002 030 000
|
N070002030000
|
-
Request access
|
REG.S.RAP. 0 |
1/8 |
0-116 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 002 040 000
|
N070002040000
|
-
Request access
|
REG.S.RAP. 0 |
1/8 |
0-174 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 003 010 000
|
N070003010000
|
-
Request access
|
REG.S.RAP. 0 |
1/4 |
0-29 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 003 020 000
|
N070003020000
|
-
Request access
|
REG.S.RAP. 0 |
1/4 |
0-58 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 003 030 000
|
N070003030000
|
-
Request access
|
REG.S.RAP. 0 |
1/4 |
0-116 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
|
N070 003 040 000
|
N070003040000
|
-
Request access
|
REG.S.RAP. 0 |
1/4 |
0-174 psi |
21,20 cfm (600 Nl/min) |
2.913 (74) |
1.575 (40) |
1.575 (40) |
0.531 (13.5) |
0.787 (20) |
1.083 (27.5) |
1.063 (27) |
M30X1,5 |
1/8 - 1/4 |
