Filter

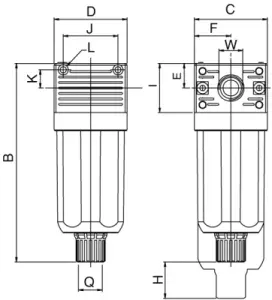

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Filtration | Flow Rate | B | C | D | E | F | H | I | J | K | L | W | Q | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N010 002 101 000 | N010002101000 | Request access | FIL 0 | 1/8 | 5 µm | 28,30 cfm (800 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 | |
| N010 002 201 000 | N010002201000 | Request access | FIL 0 | 1/8 | 20 µm | 28,30 cfm (800 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 | |
| N010 002 301 000 | N010002301000 | Request access | FIL 0 | 1/8 | 50 µm | 28,30 cfm (800 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 | |
| N010 003 101 000 | N010003101000 | Request access | FIL 0 | 1/4 | 5 µm | 28,30 cfm (800 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 | |
| N010 003 201 000 | N010003201000 | Request access | FIL 0 | 1/4 | 20 µm | 28,30 cfm (800 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 | |
| N010 003 301 000 | N010003301000 | Request access | FIL 0 | 1/4 | 50 µm | 28,30 cfm (800 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 |
