Filter
NB: With Coalescer Filter N015 we recommend to install a 5 μm Filter upstream.

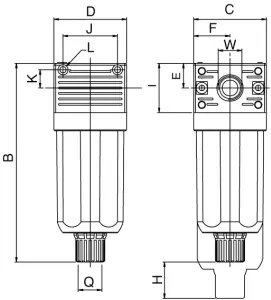

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Filtration | Flow Rate | B | C | D | E | F | H | I | J | K | L | W | Q | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N015 002 401 000 | N015002401000 | Request access | FC 0 | 1/8 | 0,01 µm | 15,90 cfm (450 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 | |
| N015 003 401 000 | N015003401000 | Request access | FC 0 | 1/4 | 0,01 µm | 15,90 cfm (450 Nl/min) | 4.291 (109) | 1.575 (40) | 1.575 (40) | 0.531 (13.5) | 0.787 (20) | 0.433 (11) | 1.063 (27) | 1.181 (30) | 0.394 (10) | Ø X M3 | 1/8 - 1/4 | 1/8 |
