N060

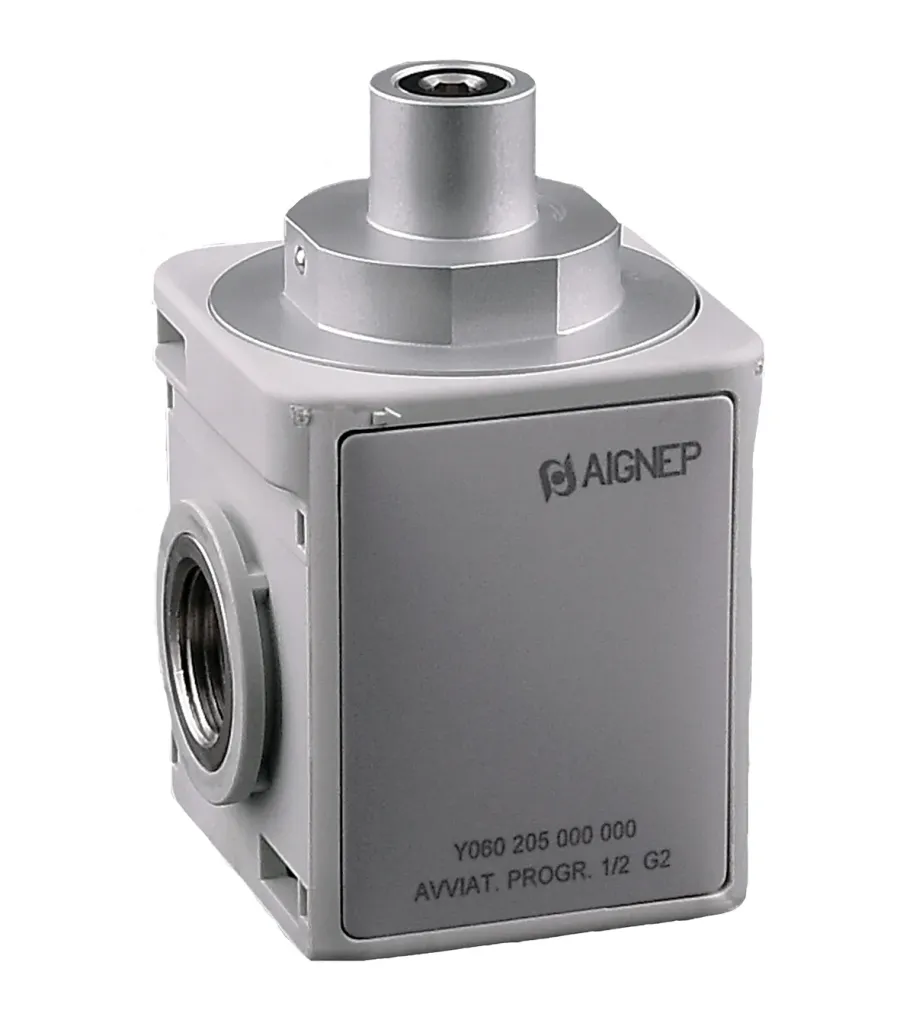

SOFT START VALVE - NPTF

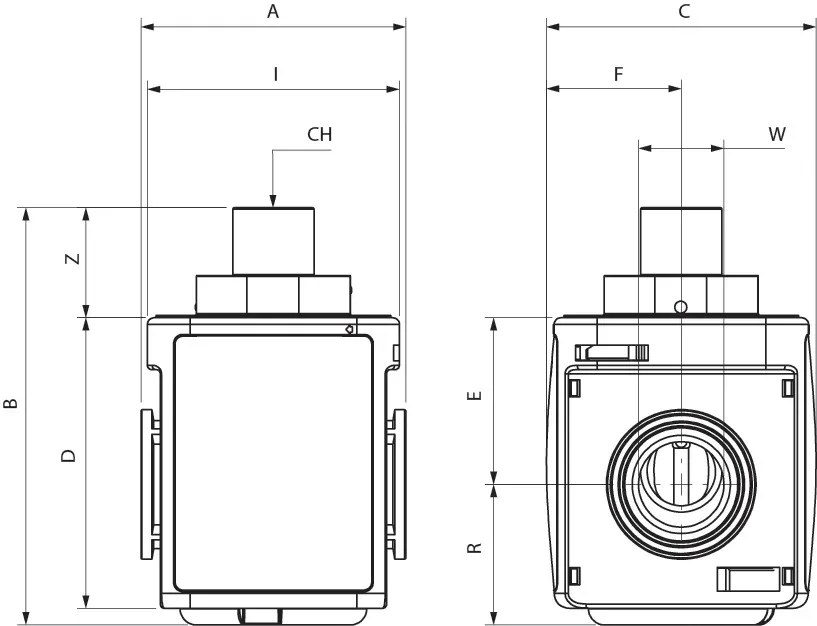

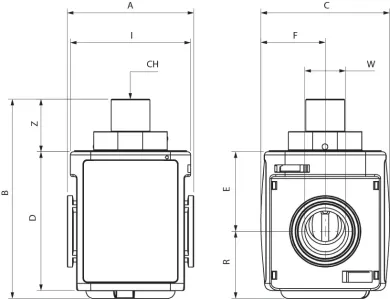

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Flow Rate | A | B | C | D | W | E | F | I | R | Z | CH | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N060 103 000 000 | N060103000000 | Request access | APE 1 | 1/4 | 95,30 (2700 Nl/min) | 2.008 (51) | 3.327 (84.5) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 1.870 (47.5) | 1.102 (28) | 0.925 (23.5) | 0.197 (5) | |
| N060 104 000 000 | N060104000000 | Request access | APE 1 | 3/8 | 95,30 (2700 Nl/min) | 2.008 (51) | 3.327 (84.5) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 1.870 (47.5) | 1.102 (28) | 0.925 (23.5) | 0.197 (5) | |
| N060 204 000 000 | N060204000000 | Request access | APE 2 | 3/8 | 123,60 (3500 NI/min) | 2.441 (62) | 3.839 (97.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 2.323 (59) | 1.299 (33) | 0.984 (25) | 0.197 (5) | |
| N060 205 000 000 | N060205000000 | Request access | APE 2 | 1/2 | 123,60 (3500 NI/min) | 2.441 (62) | 3.839 (97.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 2.323 (59) | 1.299 (33) | 0.984 (25) | 0.197 (5) | |
| N060 307 000 000 | N060204000000 | Request access | APE 3 | 3/4 | 236,60 (6700 NI/min) | 3.543 (90) | 3.326 (84,5) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 3.051 (77,5) | 2.637 (67) | 0.944 (24) | 0.196 (5) | |
| N060 309 000 000 | N060205000000 | Request access | APE 3 | 1 | 236,60 (6700 NI/min) | 3.543 (90) | 3.326 (84,5) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 3.051 (77,5) | 2.637 (67) | 0.944 (24) | 0.196 (5) |
