N020

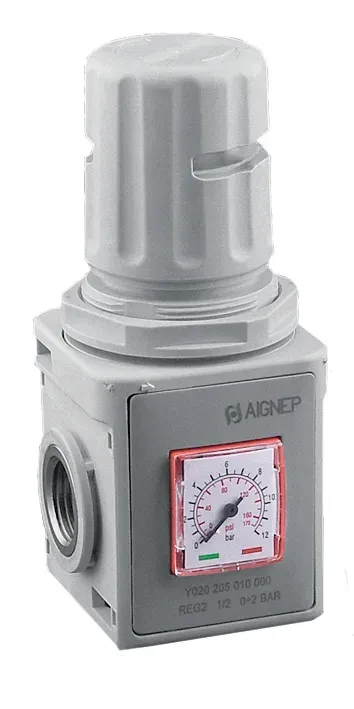

REGULATOR - NPTF
|
Code |
USA Ref |
3D Drawings |
Size |
Thread (NPTF) |
Regulation |
Flow Rate |

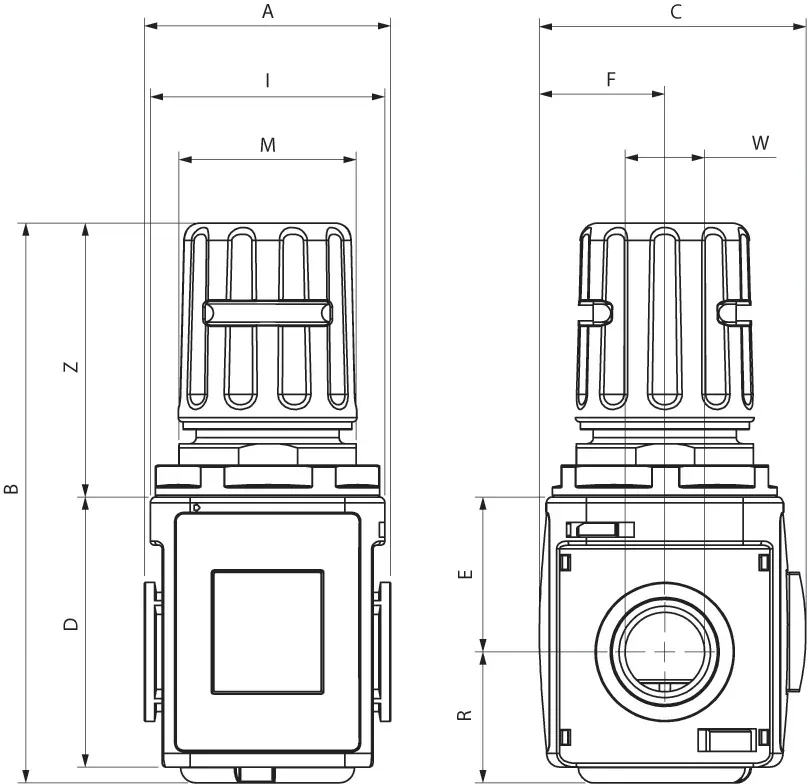

A |
B |
C |
D |
W |
E |
F |
I |
R |
M |
Z |
|
N020 103 010 000
|
N020103010000
|
-
Request access
|
REG 1 |
1/4 |
0-29 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 103 020 000
|
N020103020000
|
-
Request access
|
REG 1 |
1/4 |
0-58 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 103 030 000
|
N020103030000
|
-
Request access
|
REG 1 |
1/4 |
0-116 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 103 040 000
|
N020103040000
|
-
Request access
|
REG 1 |
1/4 |
0-174 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 104 010 000
|
N020104010000
|
-
Request access
|
REG 1 |
3/8 |
0-29 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 104 020 000
|
N020104020000
|
-
Request access
|
REG 1 |
3/8 |
0-58 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 104 030 000
|
N020104030000
|
-
Request access
|
REG 1 |
3/8 |
0-116 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 104 040 000
|
N020104040000
|
-
Request access
|
REG 1 |
3/8 |
0-174 psi |
91,80 cfm (2600 Nl/min) |
2.008 (51) |
4.606 (117) |
2.244 (57) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.102 (28) |
M37x1,5 |
2.244 (57) |
|
N020 204 010 000
|
N020204010000
|
-
Request access
|
REG 2 |
3/8 |
0-29 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 204 020 000
|
N020204020000
|
-
Request access
|
REG 2 |
3/8 |
0-58 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 204 030 000
|
N020204030000
|
-
Request access
|
REG 2 |
3/8 |
0-116 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 204 040 000
|
N020204040000
|
-
Request access
|
REG 2 |
3/8 |
0-174 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 205 010 000
|
N020205010000
|
-
Request access
|
REG 2 |
1/2 |
0-29 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 205 020 000
|
N020205020000
|
-
Request access
|
REG 2 |
1/2 |
0-58 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 205 030 000
|
N020205030000
|
-
Request access
|
REG 2 |
1/2 |
0-116 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 205 040 000
|
N020205040000
|
-
Request access
|
REG 2 |
1/2 |
0-174 psi |
141,30 cfm (4000 Nl/min) |
2.441 (62) |
5.571 (141.5) |
2.638 (67) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
1.299 (33) |
M47x1,5 |
2.854 (72.5) |
|
N020 307 030 000
|
N020307030000
|
-
Request access
|
REG 3 |
3/4 |
0-116 psi |
271,90 cfm (7700 Nl/min) |
3.543 (90) |
7.007 (178) |
3.779 (96) |
2.677 (68) |
3/4 - 1 |
1.850 (47) |
1.811 (46) |
3.051 (77,5) |
2.047 (52) |
M59x1,5 |
3.110 (79) |
|
N020 307 040 000
|
N020307040000
|
-
Request access
|
REG 3 |
3/4 |
0-174 psi |
271,90 cfm (7700 Nl/min) |
3.543 (90) |
7.007 (178) |
3.779 (96) |
2.677 (68) |
3/4 - 1 |
1.850 (47) |
1.811 (46) |
3.051 (77,5) |
2.047 (52) |
M59x1,5 |
3.110 (79) |
|
N020 309 030 000
|
N020309030000
|
-
Request access
|
REG 3 |
1 |
0-116 psi |
271,90 cfm (7700 Nl/min) |
3.543 (90) |
7.007 (178) |
3.779 (96) |
2.677 (68) |
3/4 - 1 |
1.850 (47) |
1.811 (46) |
3.051 (77,5) |
2.047 (52) |
M59x1,5 |
3.110 (79) |
|
N020 309 040 000
|
N020309040000
|
-
Request access
|
REG 3 |
1 |
0-174 psi |
271,90 cfm (7700 Nl/min) |
3.543 (90) |
7.007 (178) |
3.779 (96) |
2.677 (68) |
3/4 - 1 |
1.850 (47) |
1.811 (46) |
3.051 (77,5) |
2.047 (52) |
M59x1,5 |
3.110 (79) |
