N022

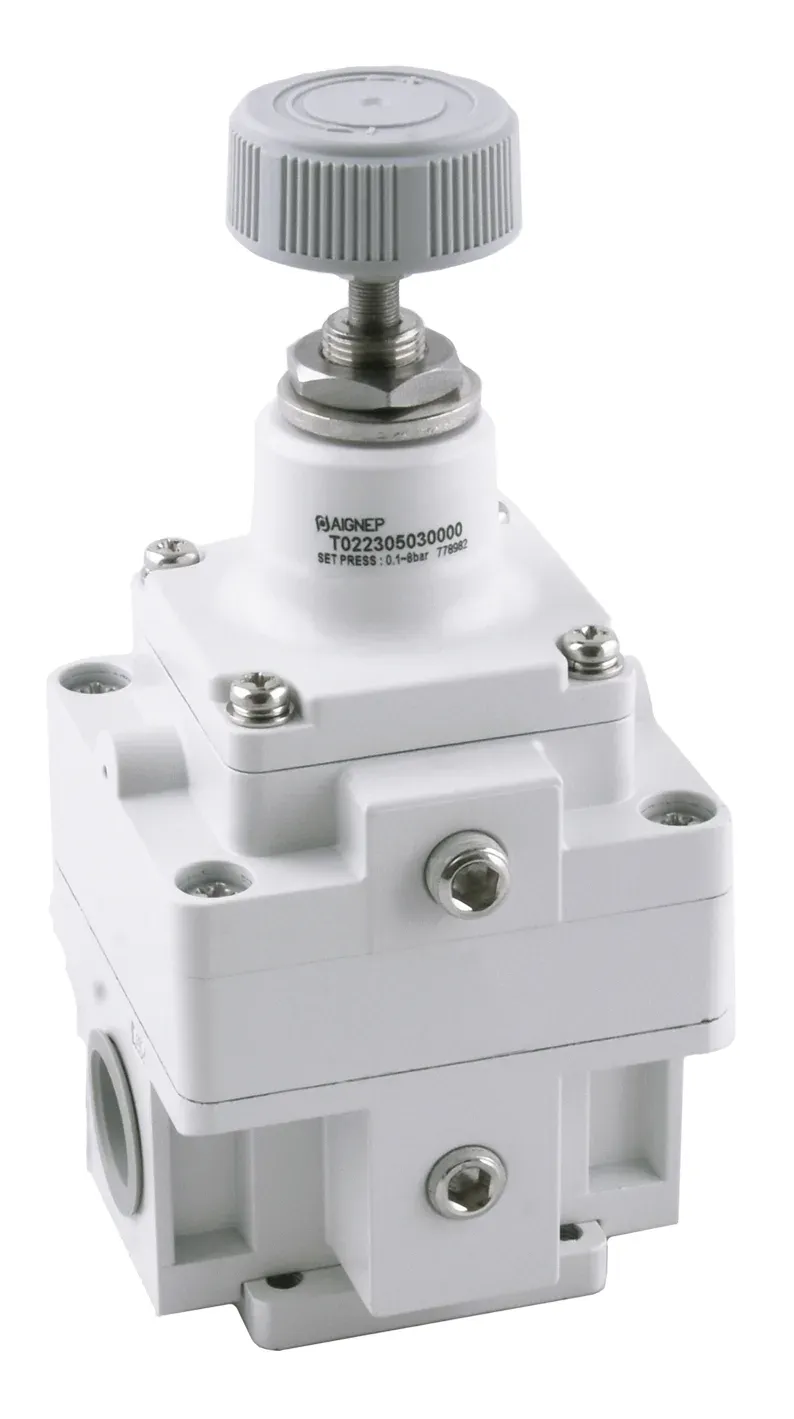

PRECISION REGULATOR - NPTF

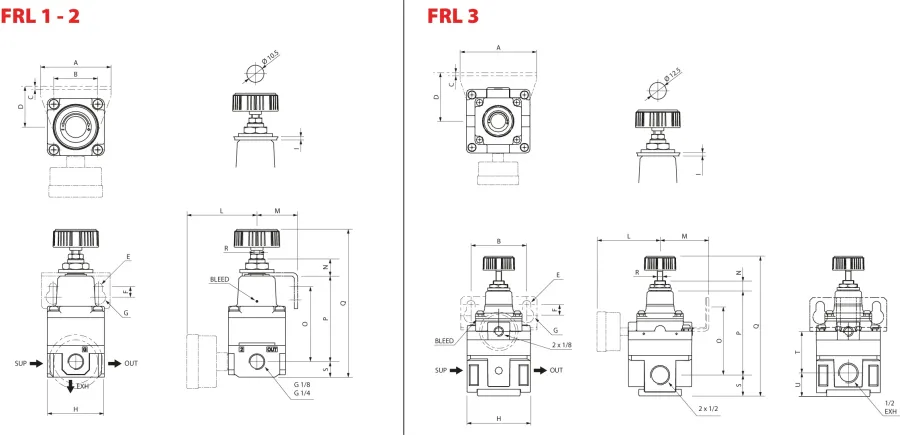

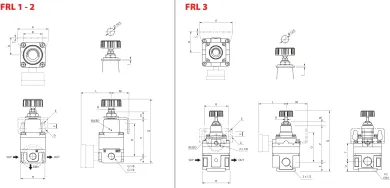

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Air consumption with 10 Bar | A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | S | T | U | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N022 102 020 000 | N022102020000 | Request access | REGP 1 - 0-58 psi | 1/8 | 4,4 l/min (ANR) F.S. | 1.653 (42) | 1.102 (28) | 0.078 (2) | 0.984 (25) | Ø 4,5 | 0.255 (6,5) | Ø 8,5 | 1.377 (35) | Max 4 | 1.692 (43) | 0.984 (25) | 0.413 (10,5) | 1.811 (46) | 2.066 (52,5) | 3.570 (90,7) | 0,374 (9,5) | - | - | |
| N022 102 030 000 | N022102030000 | Request access | REGP 1 - 0-116 psi | 1/8 | 4,4 l/min (ANR) F.S. | 1.653 (42) | 1.102 (28) | 0.078 (2) | 0.984 (25) | Ø 4,5 | 0.255 (6,5) | Ø 8,5 | 1.377 (35) | Max 4 | 1.692 (43) | 0.984 (25) | 0.413 (10,5) | 1.811 (46) | 2.066 (52,5) | 3.570 (90,7) | 0,374 (9,5) | - | - | |
| N022 203 020 000 | N022203020000 | Request access | REGP 1 - 0-58 psi | 1/4 | 4,4 l/min (ANR) F.S. | 1.968 (50) | 1.417 (36) | 0.078 (2) | 1.181 (30) | Ø 5,5 | 0.275 (7) | Ø 9,5 | 2.330 (59,2) | Max 4 | 2.165 (55) | 1.181 (30) | 0.444 (11,3) | 2.086 (53) | 2.795 (71) | 5,011 (127,3) | 0.728 (18,5) | - | - | |
| N022 203 030 000 | N022203030000 | Request access | REGP 1 - 0-116 psi | 1/4 | 4,4 l/min (ANR) F.S. | 1.968 (50) | 1.417 (36) | 0.078 (2) | 1.181 (30) | Ø 5,5 | 0.275 (7) | Ø 9,5 | 2.330 (59,2) | Max 4 | 2.165 (55) | 1.181 (30) | 0.444 (11,3) | 2.086 (53) | 2.795 (71) | 5,011 (127,3) | 0.728 (18,5) | - | - | |
| N022 305 020 000 | N022305020000 | Request access | REGP 1 - 0-58 psi | 1/2 | 11,5 l/min (ANR) F.S. | 3.228 (82) | 2.362 (60) | 0.090 (2,3) | 2.064 (52,45) | Ø 9 | 0.472 (12) | Ø 15,5 | 2,677 (68) | Max 4 | 2.677 (68) | 2.064 (52,45) | 0.444 (11,3) | 2.933 (74,5) | 3.547 (90,1) | 5,905 (150) | 0,881 (22,4) | 1,740 (44,2) | 0,988 (25,1) | |
| N022 305 030 000 | N022305030000 | Request access | REGP 1 - 0-116 psi | 1/2 | 11,5 l/min (ANR) F.S. | 3.228 (82) | 2.362 (60) | 0.090 (2,3) | 2.064 (52,45) | Ø 9 | 0.472 (12) | Ø 15,5 | 2,677 (68) | Max 4 | 2.677 (68) | 2.064 (52,45) | 0.444 (11,3) | 2.933 (74,5) | 3.547 (90,1) | 5,905 (150) | 0,881 (22,4) | 1,740 (44,2) | 0,988 (25,1) |
