N051

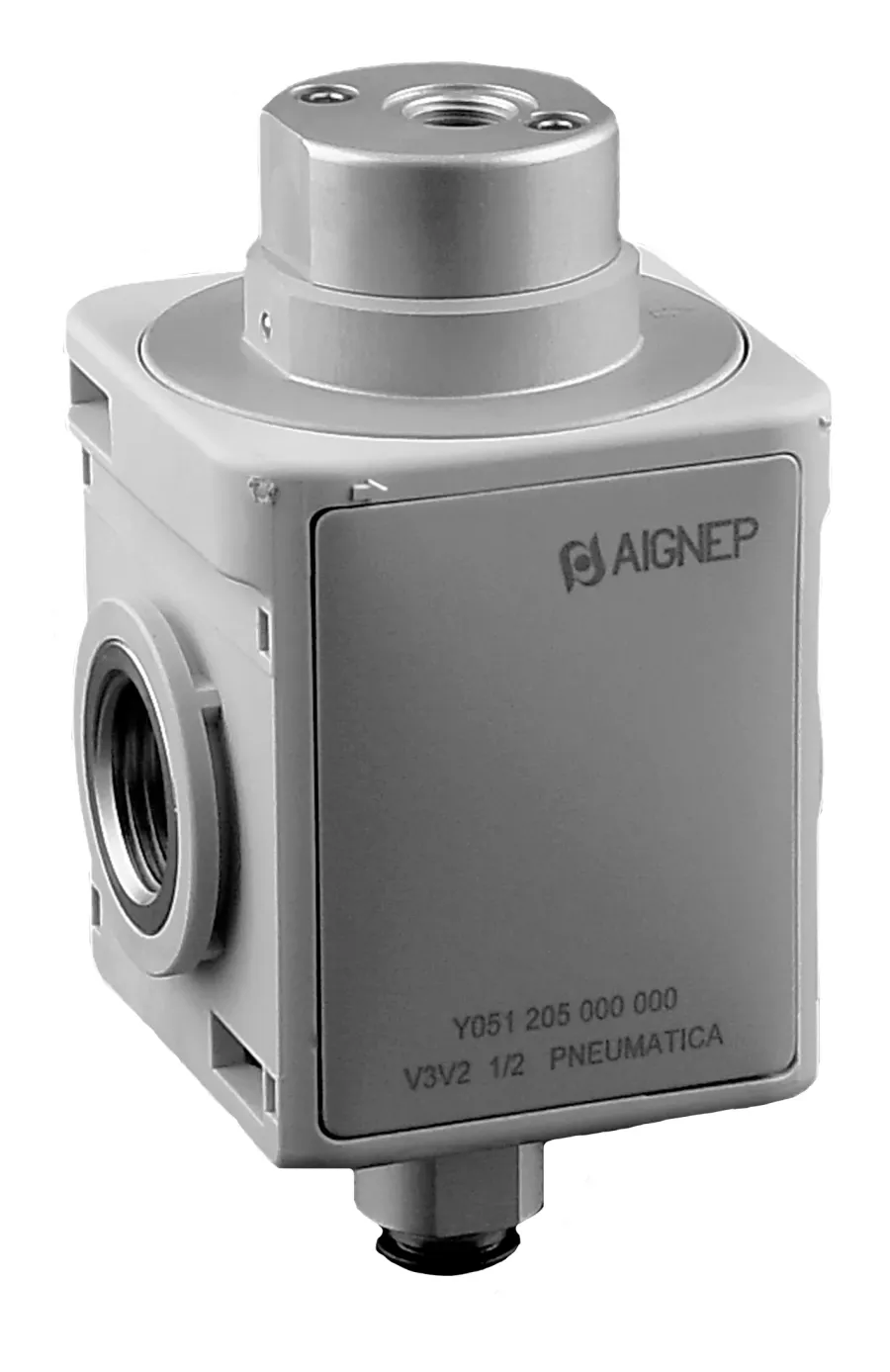

PNEUMATIC SHUT OFF VALVE - NPTF
|
Code |
USA Ref |
3D Drawings |
Size |
Thread (NPTF) |
Flow Rate |
Function |
Drive |

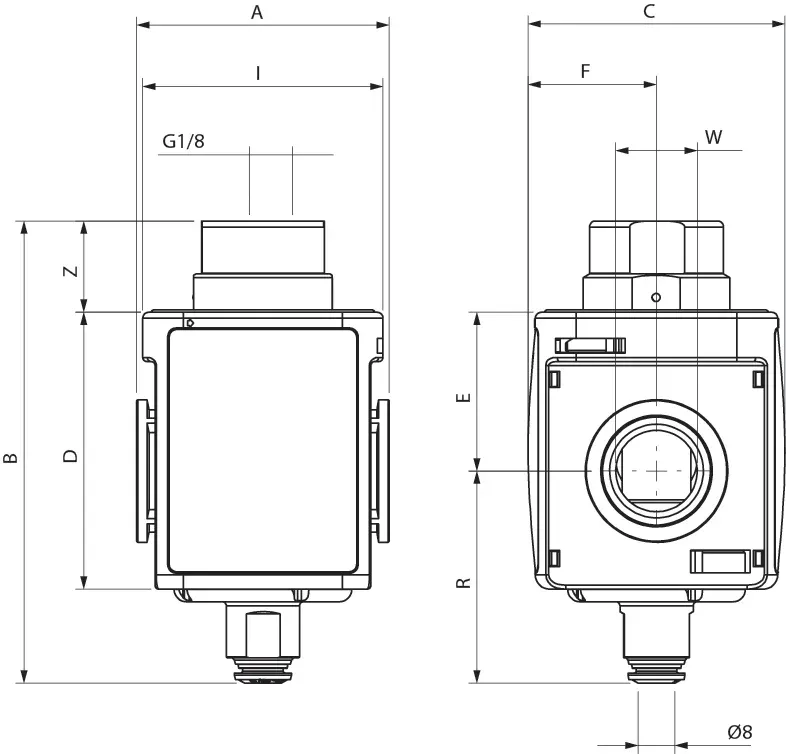

A |
B |
C |
D |
W |
E |
F |
I |
R |
Z |
|
N051 103 000 000
|
N051103000000
|
-
Request access
|
V3V 1 |
1/4 |
95,30 cfm (2700 Nl/min) |
NC |
Pneumatic |
2.008 (51) |
3.858 (98) |
2.008 (51) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.811 (46) |
0.756 (19.2) |
|
N051 104 000 000
|
N051104000000
|
-
Request access
|
V3V 1 |
3/8 |
95,30 cfm (2700 Nl/min) |
NC |
Pneumatic |
2.008 (51) |
3.858 (98) |
2.008 (51) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
1.870 (47.5) |
1.811 (46) |
0.756 (19.2) |
|
N051 204 000 000
|
N051204000000
|
-
Request access
|
V3V 2 |
3/8 |
123,60 cfm (3500 NI/min) |
NC |
Pneumatic |
2.441 (62) |
4.469 (113.5) |
2.480 (63) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
2.047 (52) |
0.866 (22) |
|
N051 205 000 000
|
N051205000000
|
-
Request access
|
V3V 2 |
1/2 |
123,60 cfm (3500 NI/min) |
NC |
Pneumatic |
2.441 (62) |
4.469 (113.5) |
2.480 (63) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
2.323 (59) |
2.047 (52) |
0.866 (22) |
|
N051 307 000 000
|
N051307000000
|
-
Request access
|
V3V 3 |
3/4 |
236,60 cfm (6700 NI/min) |
NC |
Pneumatic |
3,543 (90) |
5,551 (141) |
3,622 (92) |
3,503 (89) |
3/4 - 1 |
1,850 (47) |
1,811 (46) |
0,295 (7,5) |
2,637 (67) |
1,043 (26,5) |
|
N051 309 000 000
|
N051309000000
|
-
Request access
|
V3V 3 |
1 |
236,60 cfm (6700 NI/min) |
NC |
Pneumatic |
3,543 (90) |
5,551 (141) |
3,622 (92) |
3,503 (89) |
3/4 - 1 |
1,850 (47) |
1,811 (46) |
0,295 (7,5) |
2,637 (67) |
1,043 (26,5) |
