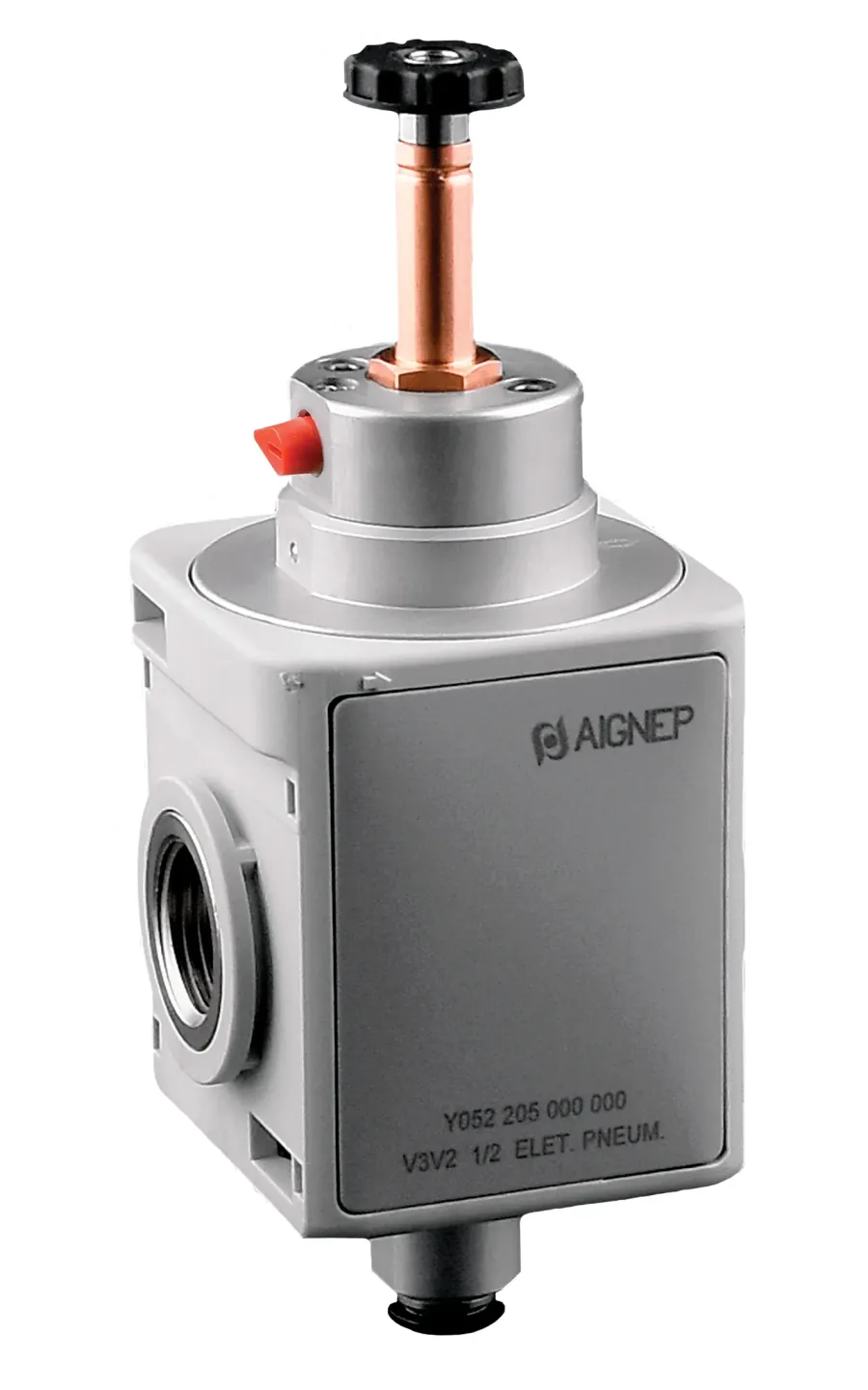

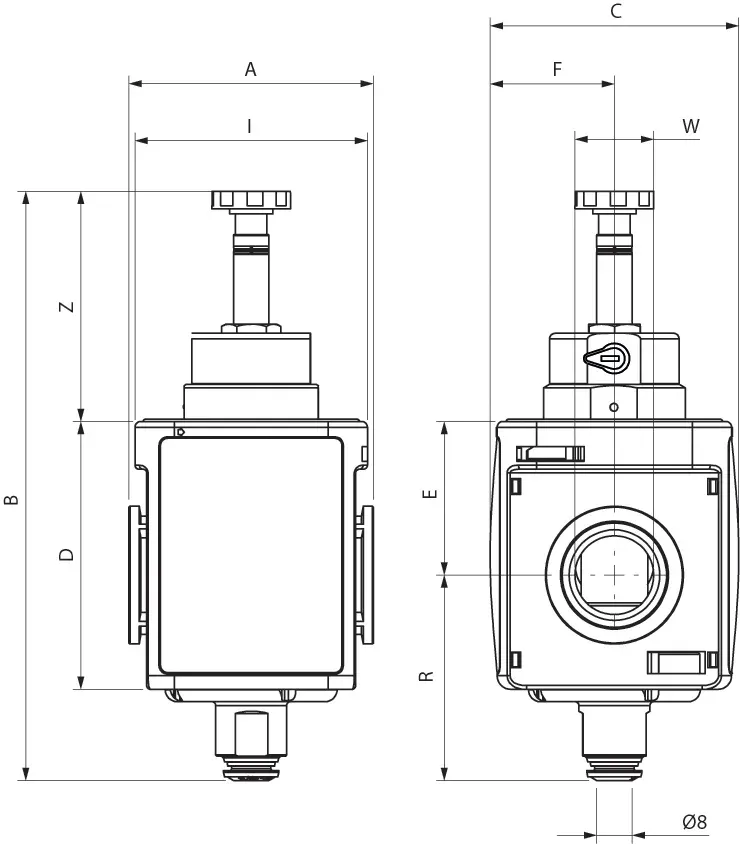

Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Flow Rate | Function | Drive | A | B | C | D | W | E | F | I | R | Z | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N052 103 000 000 | N052103000000 | Request access | V3V 1 | 1/4 | 95,30 cfm (2700 Nl/min) | NC | Electropneumatic | 2.008 (51) | 5.276 (134) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 1.870 (47.5) | 1.811 (46) | 2.165 (55) | |
N052 104 000 000 | N052104000000 | Request access | V3V 1 | 3/8 | 95,30 cfm (2700 Nl/min) | NC | Electropneumatic | 2.008 (51) | 5.276 (134) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 1.870 (47.5) | 1.811 (46) | 2.165 (55) | |
N052 204 000 000 | N052204000000 | Request access | V3V 2 | 3/8 | 123,60 cfm (3500 NI/min) | NC | Electropneumatic | 2.441 (62) | 5.886 (149.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 2.323 (59) | 2.047 (52) | 2.283 (58) | |
N052 205 000 000 | N052205000000 | Request access | V3V 2 | 1/2 | 123,60 cfm (3500 NI/min) | NC | Electropneumatic | 2.441 (62) | 5.886 (149.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 2.323 (59) | 2.047 (52) | 2.283 (58) | |
N052 307 000 000 | N052307000000 | Request access | V3V 3 | 3/4 | 236,60 cfm (6700 NI/min) | NC | Electropneumatic | 3.543 (90) | 6.653 (169) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 3.051 (77,5) | 2.637 (67) | 2.165 (55) | |
N052 309 000 000 | N052309000000 | Request access | V3V 3 | 1 | 236,60 cfm (6700 NI/min) | NC | Electropneumatic | 3.543 (90) | 6.653 (169) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 3.051 (77,5) | 2.637 (67) | 2.165 (55) |
