Filter

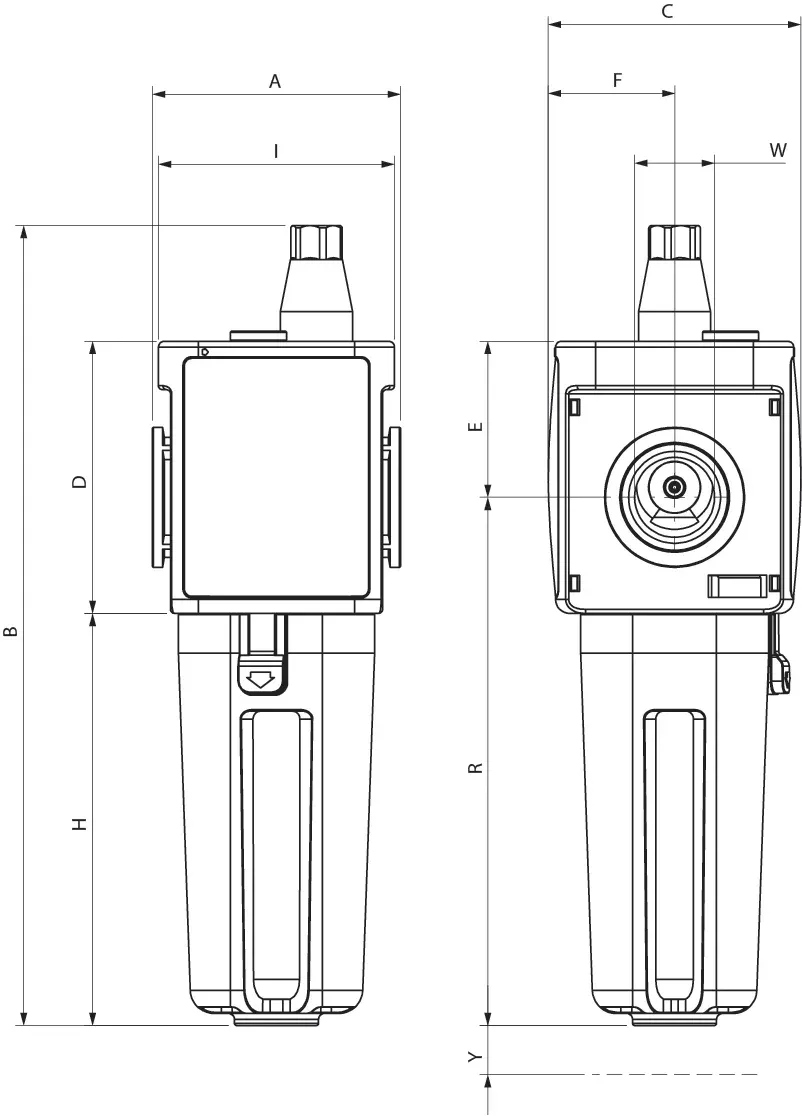

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Flow Rate | Oil loading System | A | B | C | D | W | E | F | H | I | R | Y | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N040 103 000 100 | N040103000100 | Request access | LUB 1 | 1/4 | 120,10 cfm (3400 Nl/min) | Manual | 2.008 (51) | 7.028 (178.5) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 3.642 (92.5) | 1.870 (47.5) | 4.626 (117.5) | 0.276 (7) | |
| N040 103 000 200 | N040103000200 | Request access | LUB 1 | 1/4 | 120,10 cfm (3400 Nl/min) | Automatic vacuum-operated | 2.008 (51) | 7.028 (178.5) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 3.642 (92.5) | 1.870 (47.5) | 4.626 (117.5) | 0.276 (7) | |
| N040 104 000 100 | N040104000100 | Request access | LUB 1 | 3/8 | 120,10 cfm (3400 Nl/min) | Manual | 2.008 (51) | 7.028 (178.5) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 3.642 (92.5) | 1.870 (47.5) | 4.626 (117.5) | 0.276 (7) | |
| N040 104 000 200 | N040104000200 | Request access | LUB 1 | 3/8 | 120,10 cfm (3400 Nl/min) | Automatic vacuum-operated | 2.008 (51) | 7.028 (178.5) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 3.642 (92.5) | 1.870 (47.5) | 4.626 (117.5) | 0.276 (7) | |
| N040 204 000 100 | N040204000100 | Request access | LUB 2 | 3/8 | 215,40 cfm (6100 Nl/min) | Manual | 2.441 (62) | 7.874 (200) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 4.055 (103) | 2.323 (59) | 5.197 (132) | 0.374 (9.5) | |
| N040 204 000 200 | N040204000200 | Request access | LUB 2 | 3/8 | 215,40 cfm (6100 Nl/min) | Automatic vacuum-operated | 2.441 (62) | 7.874 (200) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 4.055 (103) | 2.323 (59) | 5.197 (132) | 0.374 (9.5) | |
| N040 205 000 100 | N040205000100 | Request access | LUB 2 | 1/2 | 215,40 cfm (6100 Nl/min) | Manual | 2.441 (62) | 7.874 (200) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 4.055 (103) | 2.323 (59) | 5.197 (132) | 0.374 (9.5) | |
| N040 205 000 200 | N040205000200 | Request access | LUB 2 | 1/2 | 215,40 cfm (6100 Nl/min) | Automatic vacuum-operated | 2.441 (62) | 7.874 (200) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 4.055 (103) | 2.323 (59) | 5.197 (132) | 0.374 (9.5) | |
| N040 307 000 100 | N040307000100 | Request access | LUB 3 | 3/4 | 413,10 cfm (11700 Nl/min) | Manual | 3.543 (90) | 10 (254) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 5.354 (136) | 3.051 (77,5) | 7,007 (178) | 0,748 (19) | |
| N040 307 000 200 | N040307000200 | Request access | LUB 3 | 3/4 | 413,10 cfm (11700 Nl/min) | Automatic vacuum-operated | 3.543 (90) | 10 (254) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 5.354 (136) | 3.051 (77,5) | 7,007 (178) | 0,748 (19) | |
| N040 309 000 100 | N040309000100 | Request access | LUB 3 | 1 | 413,10 cfm (11700 Nl/min) | Manual | 3.543 (90) | 10 (254) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 5.354 (136) | 3.051 (77,5) | 7,007 (178) | 0,748 (19) | |
| N040 309 000 200 | N040309000200 | Request access | LUB 3 | 1 | 413,10 cfm (11700 Nl/min) | Automatic vacuum-operated | 3.543 (90) | 10 (254) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 5.354 (136) | 3.051 (77,5) | 7,007 (178) | 0,748 (19) |
