Filter

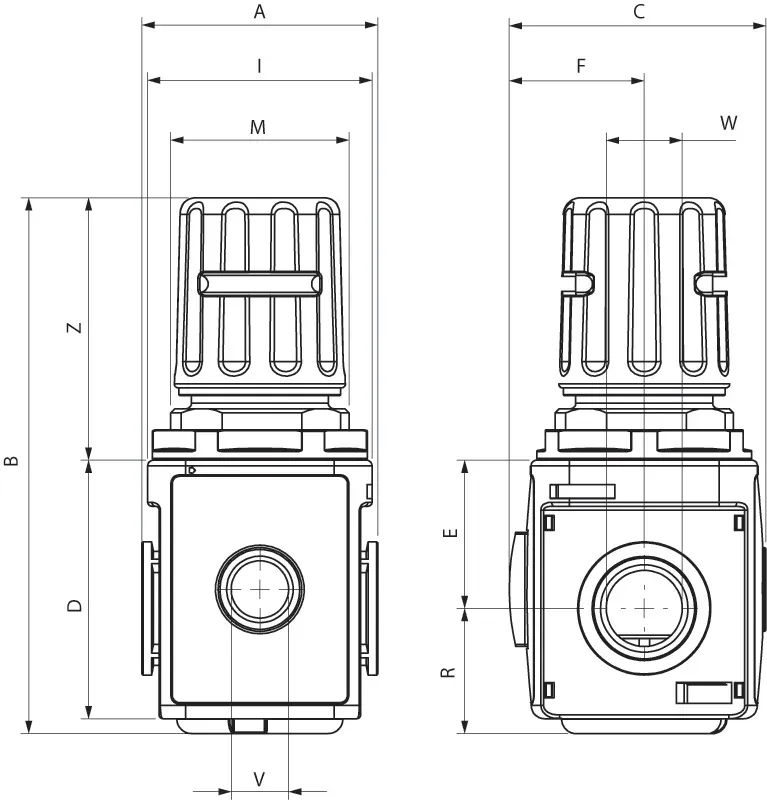

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Regulation | Direction | Flow Rate | A | B | C | D | W | E | F | I | R | M | Z | V | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

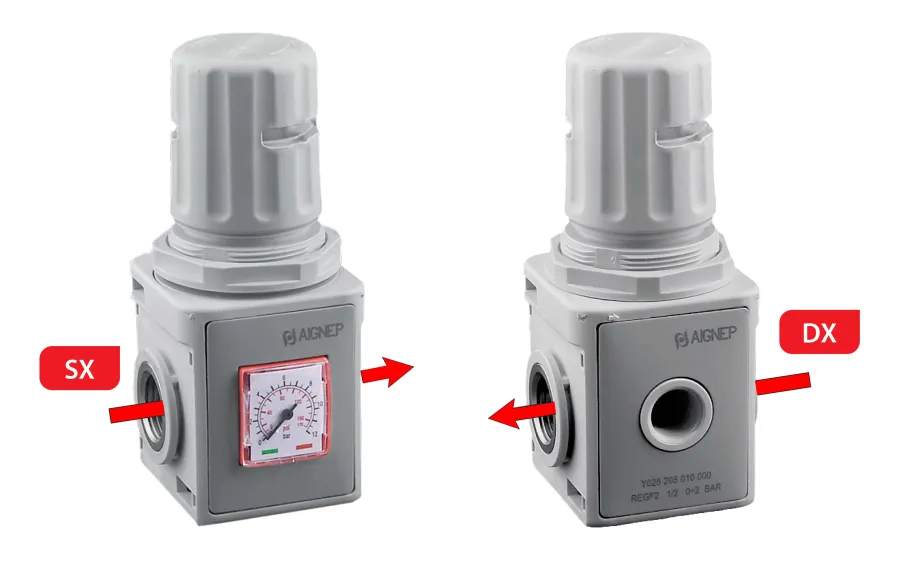

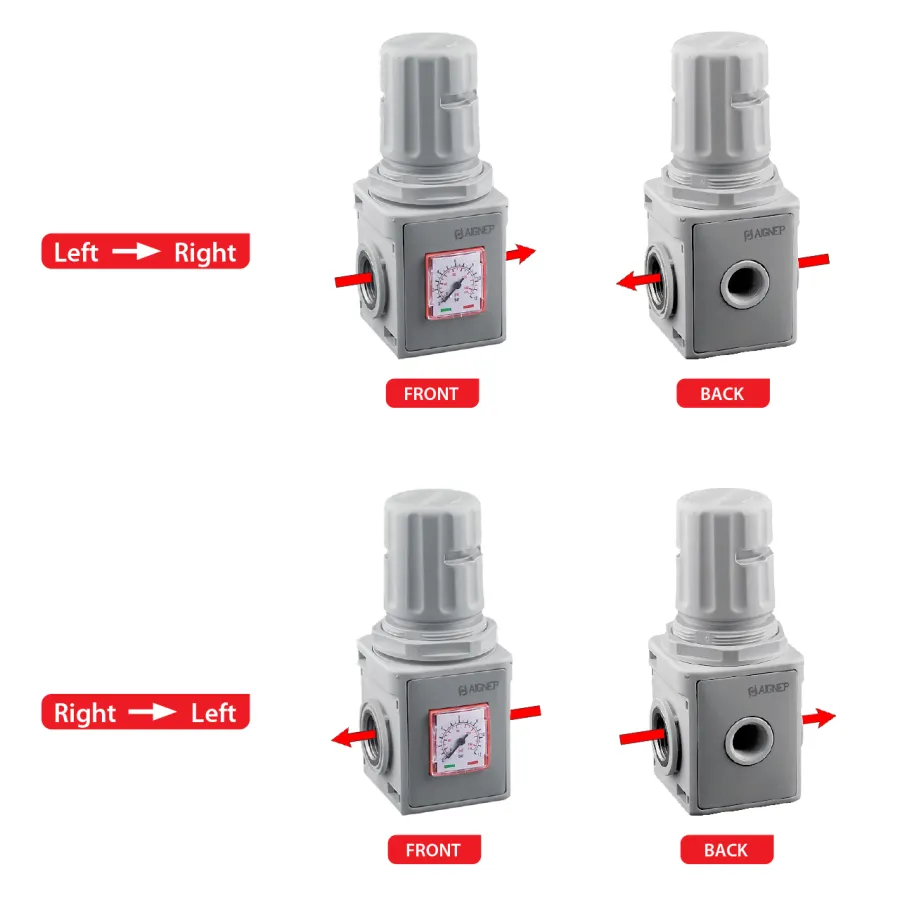

| N025 103 010 000 | N025103010000 | Request access | REG F 1 | 1/4 | 0-29 psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 103 020 000 | N025103020000 | Request access | REG F 1 | 1/4 | 0-58 psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 103 030 000 | N025103030000 | Request access | REG F 1 | 1/4 | 0-116 psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 103 040 000 | N025103040000 | Request access | REG F 1 | 1/4 | 0-174psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 010 000 | N025104010000 | Request access | REG F 1 | 3/8 | 0-29 psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 020 000 | N025104020000 | Request access | REG F 1 | 3/8 | 0-58 psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 030 000 | N025104030000 | Request access | REG F 1 | 3/8 | 0-116 psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 040 000 | N025104040000 | Request access | REG F 1 | 3/8 | 0-174psi | Left - Right | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 204 010 000 | N025204010000 | Request access | REG F 2 | 3/8 | 0-29 psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 204 020 000 | N025204020000 | Request access | REG F 2 | 3/8 | 0-58 psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 204 030 000 | N025204030000 | Request access | REG F 2 | 3/8 | 0-116 psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 204 040 000 | N025204040000 | Request access | REG F 2 | 3/8 | 0-174psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 010 000 | N025205010000 | Request access | REG F 2 | 1/2 | 0-29 psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 020 000 | N025205020000 | Request access | REG F 2 | 1/2 | 0-58 psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 030 000 | N025205030000 | Request access | REG F 2 | 1/2 | 0-116 psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 040 000 | N025205040000 | Request access | REG F 2 | 1/2 | 0-174psi | Left - Right | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 103 010 001 | N025103010001 | Request access | REG F 1 | 1/4 | 0-29 psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 103 020 001 | N025103020001 | Request access | REG F 1 | 1/4 | 0-58 psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 103 030 001 | N025103030001 | Request access | REG F 1 | 1/4 | 0-116 psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 103 040 001 | N025103040001 | Request access | REG F 1 | 1/4 | 0-174psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 010 001 | N025104010001 | Request access | REG F 1 | 3/8 | 0-29 psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 020 001 | N025104020001 | Request access | REG F 1 | 3/8 | 0-58 psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 030 001 | N025104030001 | Request access | REG F 1 | 3/8 | 0-116 psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 104 040 001 | N025104040001 | Request access | REG F 1 | 3/8 | 0-174psi | Right - Left | 95,30 cfm (2700 Nl/min) | 2.008 (51) | 4.606 (117) | 2.244 (57) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.220 (31) | 1.870 (47.5) | 1.102 (28) | M37x1,5 | 2.244 (57) | 1/8 | |
| N025 204 010 001 | N025204010001 | Request access | REG F 2 | 3/8 | 0-29 psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 204 020 001 | N025204020001 | Request access | REG F 2 | 3/8 | 0-58 psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 204 030 001 | N025204030001 | Request access | REG F 2 | 3/8 | 0-116 psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 204 040 001 | N025204040001 | Request access | REG F 2 | 3/8 | 0-174psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 010 001 | N025205010001 | Request access | REG F 2 | 1/2 | 0-29 psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 020 001 | N025205020001 | Request access | REG F 2 | 1/2 | 0-58 psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 030 001 | N025205030001 | Request access | REG F 2 | 1/2 | 0-116 psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 | |
| N025 205 040 001 | N025205040001 | Request access | REG F 2 | 1/2 | 0-174psi | Right - Left | 123,60 cfm (3500 Nl/min) | 2.441 (62) | 5.571 (141.5) | 2.638 (67) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.398 (35.5) | 2.323 (59) | 1.299 (33) | M47x1,5 | 2.854 (72.5) | 3/8 |
