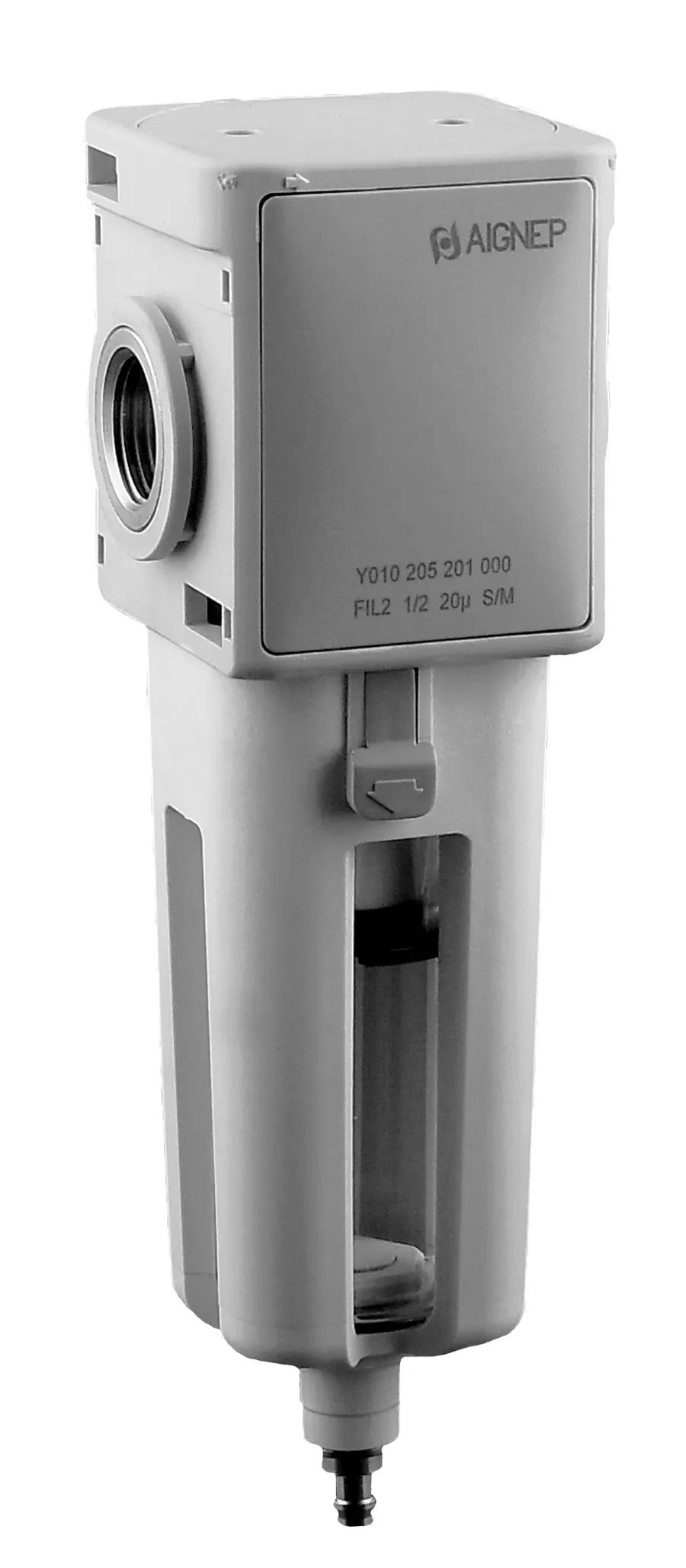

Filter
N010
FILTER - NPTF
*Automatic with float (max 8 bar)

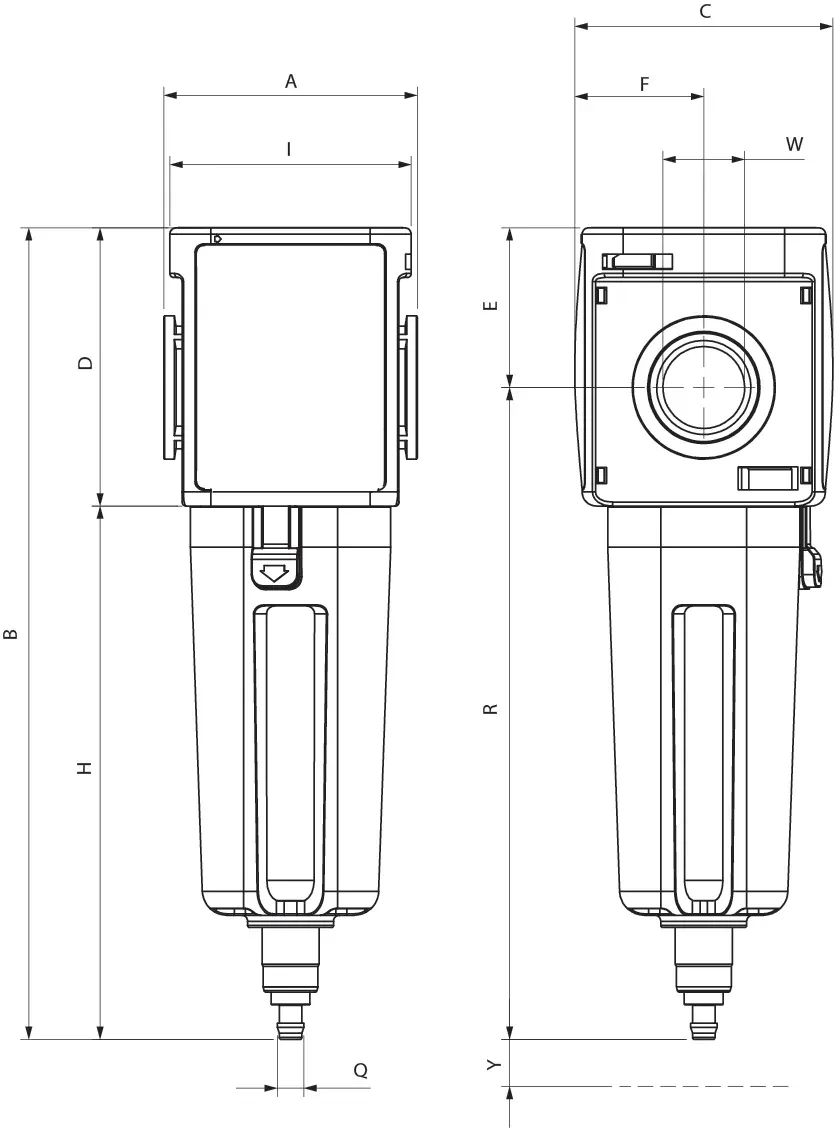

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Filtration | Flow Rate | Exhaust | A | B | C | D | W | E | F | H | I | Q | R | T | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N010 103 101 000 | N010103101000 | Request access | FIL 1 | 1/4 | 5 µm | 88,30 cfm (2500 Nl/min) | Depressure drain | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 103 102 000 | N010103102000 | Request access | FIL 1 | 1/4 | 5 µm | 88,30 cfm (2500 Nl/min) | Automatic with float | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 103 201 000 | N010103201000 | Request access | FIL 1 | 1/4 | 20 µm | 88,30 cfm (2500 Nl/min) | Depressure drain | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 103 202 000 | N010103202000 | Request access | FIL 1 | 1/4 | 20 µm | 88,30 cfm (2500 Nl/min) | Automatic with float | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 104 101 000 | N010104101000 | Request access | FIL 1 | 3/8 | 5 µm | 88,30 cfm (2500 Nl/min) | Depressure drain | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 104 102 000 | N010104102000 | Request access | FIL 1 | 3/8 | 5 µm | 88,30 cfm (2500 Nl/min) | Automatic with float | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 104 201 000 | N010104201000 | Request access | FIL 1 | 3/8 | 20 µm | 88,30 cfm (2500 Nl/min) | Depressure drain | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 104 202 000 | N010104202000 | Request access | FIL 1 | 3/8 | 20 µm | 88,30 cfm (2500 Nl/min) | Automatic with float | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | |
| N010 204 101 000 | N010204101000 | Request access | FIL 2 | 3/8 | 5 µm | 144,80 cfm (4100 Nl/min) | Depressure drain | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 204 102 000 | N010204102000 | Request access | FIL 2 | 3/8 | 5 µm | 144,80 cfm (4100 Nl/min) | Automatic with float | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 204 201 000 | N010204201000 | Request access | FIL 2 | 3/8 | 20 µm | 144,80 cfm (4100 Nl/min) | Depressure drain | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 204 202 000 | N010204202000 | Request access | FIL 2 | 3/8 | 20 µm | 144,80 cfm (4100 Nl/min) | Automatic with float | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 205 101 000 | N010205101000 | Request access | FIL 2 | 1/2 | 5 µm | 144,80 cfm (4100 Nl/min) | Depressure drain | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 205 102 000 | N010205102000 | Request access | FIL 2 | 1/2 | 5 µm | 144,80 cfm (4100 Nl/min) | Automatic with float | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 205 201 000 | N010205201000 | Request access | FIL 2 | 1/2 | 20 µm | 144,80 cfm (4100 Nl/min) | Depressure drain | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 205 202 000 | N010205202000 | Request access | FIL 2 | 1/2 | 20 µm | 144,80 cfm (4100 Nl/min) | Automatic with float | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | |
| N010 307 101 000 | N010307101000 | Request access | FIL 3 | 3/4 | 5 µm | 278,90 cfm (7900 Nl/min) | Depressure drain | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 307 102 000 | N010307102000 | Request access | FIL 3 | 3/4 | 5 µm | 278,90 cfm (7900 Nl/min) | Automatic with float | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 307 201 000 | N010307201000 | Request access | FIL 3 | 3/4 | 20 µm | 278,90 cfm (7900 Nl/min) | Depressure drain | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 307 202 000 | N010307202000 | Request access | FIL 3 | 3/4 | 20 µm | 278,90 cfm (7900 Nl/min) | Automatic with float | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 309 101 000 | N010309101000 | Request access | FIL 3 | 1 | 5 µm | 278,90 cfm (7900 Nl/min) | Depressure drain | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 309 102 000 | N010309102000 | Request access | FIL 3 | 1 | 5 µm | 278,90 cfm (7900 Nl/min) | Automatic with float | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 309 201 000 | N010309201000 | Request access | FIL 3 | 1 | 20 µm | 278,90 cfm (7900 Nl/min) | Depressure drain | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | |
| N010 309 202 000 | N010309202000 | Request access | FIL 3 | 1 | 20 µm | 278,90 cfm (7900 Nl/min) | Automatic with float | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) |
