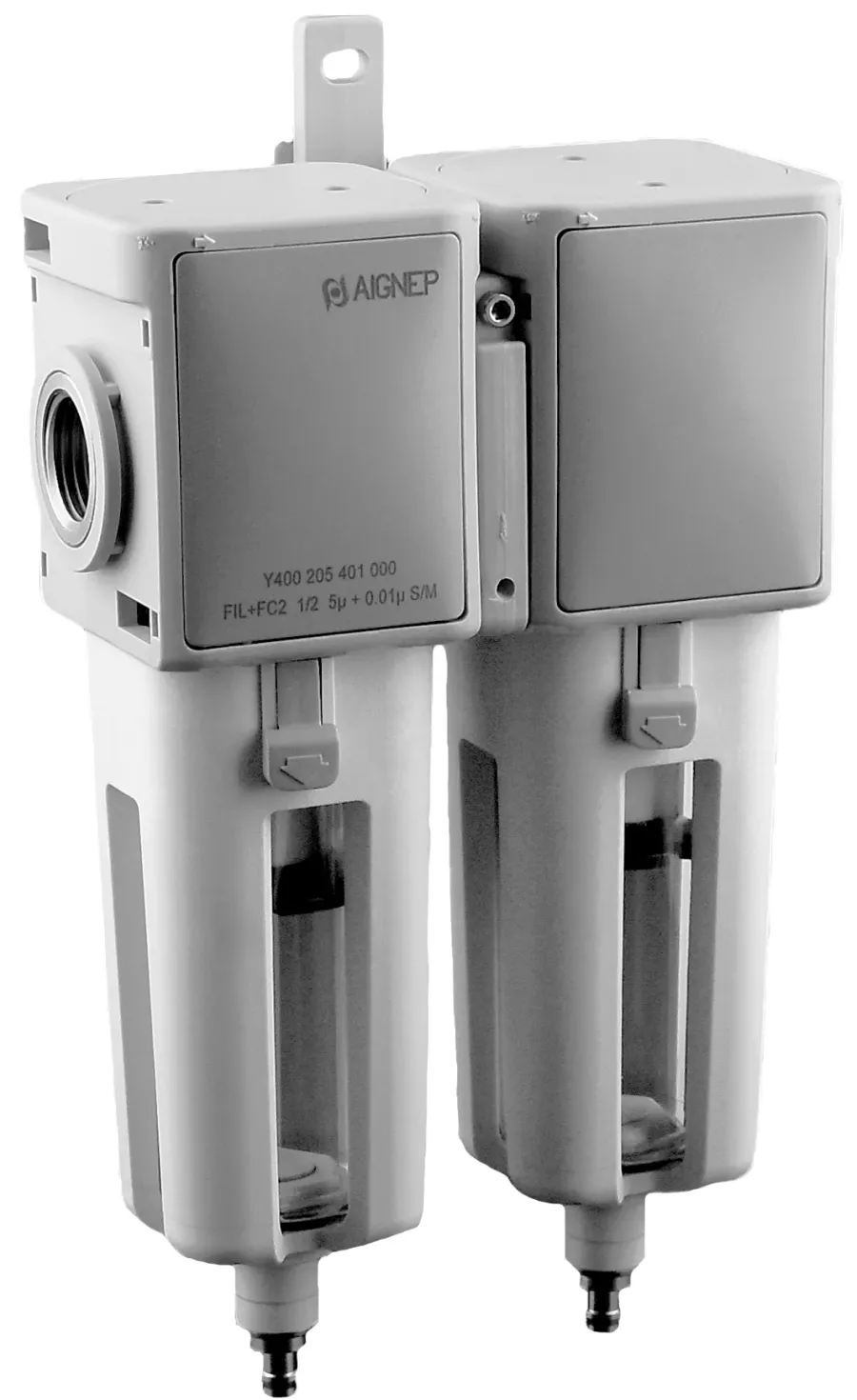

Filter
N400
FIL + FC - NPTF
*Automatic with float (max 8 bar)

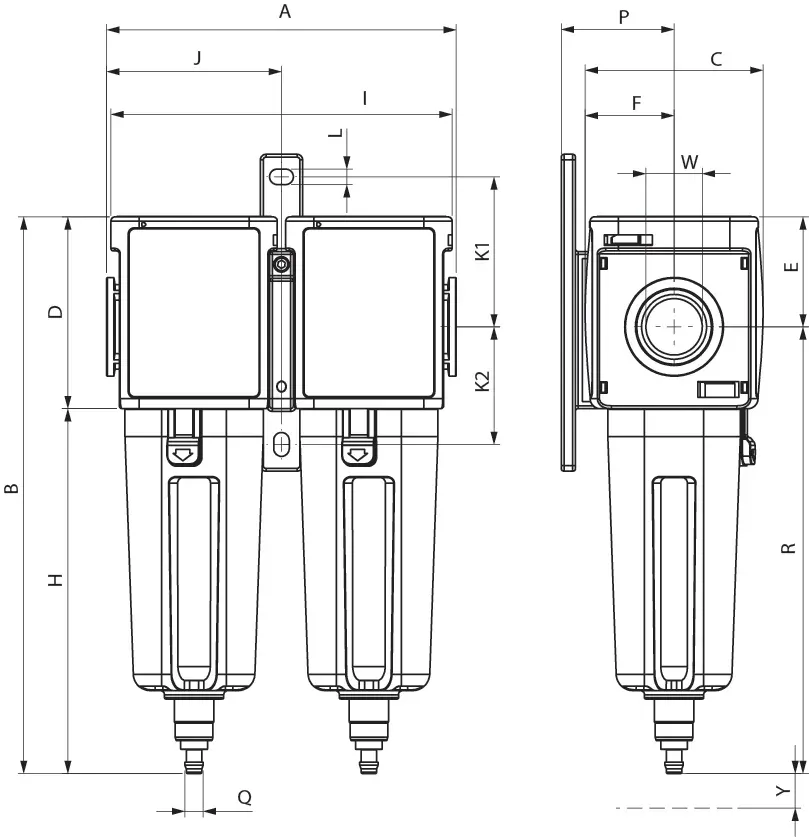

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Filtration | Flow Rate | Exhaust | A | B | C | D | E | F | H | I | J | K1 | K2 | L | P | Q | R | W | Y | Z | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N400 103 401 000 | N400103401000 | Request access | FIL+FC 1 | 1/4 | 5 µm + 0.01 µm | 21,1 cmf (600 Nl/Min) | Depressure drain | 4.016 (102) | 6.929 (176) | 2.244 (57) | 2.244 (57) | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | 3.878 (98.5) | 1.772 (45) | 1.398 (35.5) | 0.217 (5.5) | 1.358 (34.5) | E.D. 256 (6,5) | 5.669 (144) | 1/4 - 3/8 | 0.276 (7) | 2.244 (57) | |
| N400 103 402 000 | N400103402000 | Request access | FIL+FC 1 | 1/4 | 5 µm + 0.01 µm | 21,1 cmf (600 Nl/Min) | Depressure drain | 4.016 (102) | 6.929 (176) | 2.244 (57) | 2.244 (57) | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | 3.878 (98.5) | 1.772 (45) | 1.398 (35.5) | 0.217 (5.5) | 1.358 (34.5) | E.D. 256 (6,5) | 5.669 (144) | 1/4 - 3/8 | 0.276 (7) | 2.244 (57) | |
| N400 104 401 000 | N400104401000 | Request access | FIL+FC 1 | 3/8 | 5 µm + 0.01 µm | 21,1 cmf (600 Nl/Min) | Depressure drain | 4.016 (102) | 6.929 (176) | 2.244 (57) | 2.244 (57) | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | 3.878 (98.5) | 1.772 (45) | 1.398 (35.5) | 0.217 (5.5) | 1.358 (34.5) | E.D. 256 (6,5) | 5.669 (144) | 1/4 - 3/8 | 0.276 (7) | 2.244 (57) | |
| N400 104 402 000 | N400104402000 | Request access | FIL+FC 1 | 3/8 | 5 µm + 0.01 µm | 21,1 cmf (600 Nl/Min) | Depressure drain | 4.016 (102) | 6.929 (176) | 2.244 (57) | 2.244 (57) | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | 3.878 (98.5) | 1.772 (45) | 1.398 (35.5) | 0.217 (5.5) | 1.358 (34.5) | E.D. 256 (6,5) | 5.669 (144) | 1/4 - 3/8 | 0.276 (7) | 2.244 (57) | |
| N400 204 401 000 | N400204401000 | Request access | FIL+FC 2 | 3/8 | 5 µm + 0.01 µm | 26,4 cmf (750 Nl/Min) | Depressure drain | 4.882 (124) | 7.776 (197.5) | 2.244 (57) | 2.244 (57) | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | 4.764 (121) | 2.087 (53) | 1.634 (41.5) | 0.217 (5.5) | 1.575 (40) | E.D. 256 (6,5) | 6.240 (158.5) | 3/8 - 1/2 | 0.374 (9.5) | 2.854 (72.5) | |
| N400 204 402 000 | N400204402000 | Request access | FIL+FC 2 | 3/8 | 5 µm + 0.01 µm | 26,4 cmf (750 Nl/Min) | Depressure drain | 4.882 (124) | 7.776 (197.5) | 2.244 (57) | 2.244 (57) | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | 4.764 (121) | 2.087 (53) | 1.634 (41.5) | 0.217 (5.5) | 1.575 (40) | E.D. 256 (6,5) | 6.240 (158.5) | 3/8 - 1/2 | 0.374 (9.5) | 2.854 (72.5) | |
| N400 205 401 000 | N400205401000 | Request access | FIL+FC 2 | 1/2 | 5 µm + 0.01 µm | 26,4 cmf (750 Nl/Min) | Depressure drain | 4.882 (124) | 7.776 (197.5) | 2.244 (57) | 2.244 (57) | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | 4.764 (121) | 2.087 (53) | 1.634 (41.5) | 0.217 (5.5) | 1.575 (40) | E.D. 256 (6,5) | 6.240 (158.5) | 3/8 - 1/2 | 0.374 (9.5) | 2.854 (72.5) | |
| N400 205 402 000 | N400205402000 | Request access | FIL+FC 2 | 1/2 | 5 µm + 0.01 µm | 26,4 cmf (750 Nl/Min) | Depressure drain | 4.882 (124) | 7.776 (197.5) | 2.244 (57) | 2.244 (57) | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | 4.764 (121) | 2.087 (53) | 1.634 (41.5) | 0.217 (5.5) | 1.575 (40) | E.D. 256 (6,5) | 6.240 (158.5) | 3/8 - 1/2 | 0.374 (9.5) | 2.854 (72.5) | |
| N400 307 401 000 | N400307401000 | Request access | FIL+FC 3 | 3/4 | 5 µm + 0.01 µm | 49,4 cmf (1400 Nl/Min) | Depressure drain | 7.086 (180) | 9.842 (250) | 3.779 (96) | 3.503 (89) | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | 6.594 (167,5) | 2.598 (66) | 2.165 (55) | 0.255 (6,5) | 2.283 (58) | Tube 8-6 | 7.992 (203) | 3/4 - 1 | 2.755 (70) | 3.110 (79) | |
| N400 307 402 000 | N400307402000 | Request access | FIL+FC 3 | 3/4 | 5 µm + 0.01 µm | 49,4 cmf (1400 Nl/Min) | Depressure drain | 7.086 (180) | 9.842 (250) | 3.779 (96) | 3.503 (89) | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | 6.594 (167,5) | 2.598 (66) | 2.165 (55) | 0.255 (6,5) | 2.283 (58) | Tube 8-6 | 7.992 (203) | 3/4 - 1 | 2.755 (70) | 3.110 (79) | |
| N400 309 401 000 | N400309401000 | Request access | FIL+FC 3 | 1 | 5 µm + 0.01 µm | 49,4 cmf (1400 Nl/Min) | Depressure drain | 7.086 (180) | 9.842 (250) | 3.779 (96) | 3.503 (89) | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | 6.594 (167,5) | 2.598 (66) | 2.165 (55) | 0.255 (6,5) | 2.283 (58) | Tube 8-6 | 7.992 (203) | 3/4 - 1 | 2.755 (70) | 3.110 (79) | |
| N400 309 402 000 | N400309402000 | Request access | FIL+FC 3 | 1 | 5 µm + 0.01 µm | 49,4 cmf (1400 Nl/Min) | Depressure drain | 7.086 (180) | 9.842 (250) | 3.779 (96) | 3.503 (89) | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | 6.594 (167,5) | 2.598 (66) | 2.165 (55) | 0.255 (6,5) | 2.283 (58) | Tube 8-6 | 7.992 (203) | 3/4 - 1 | 2.755 (70) | 3.110 (79) |
