Filter
N015

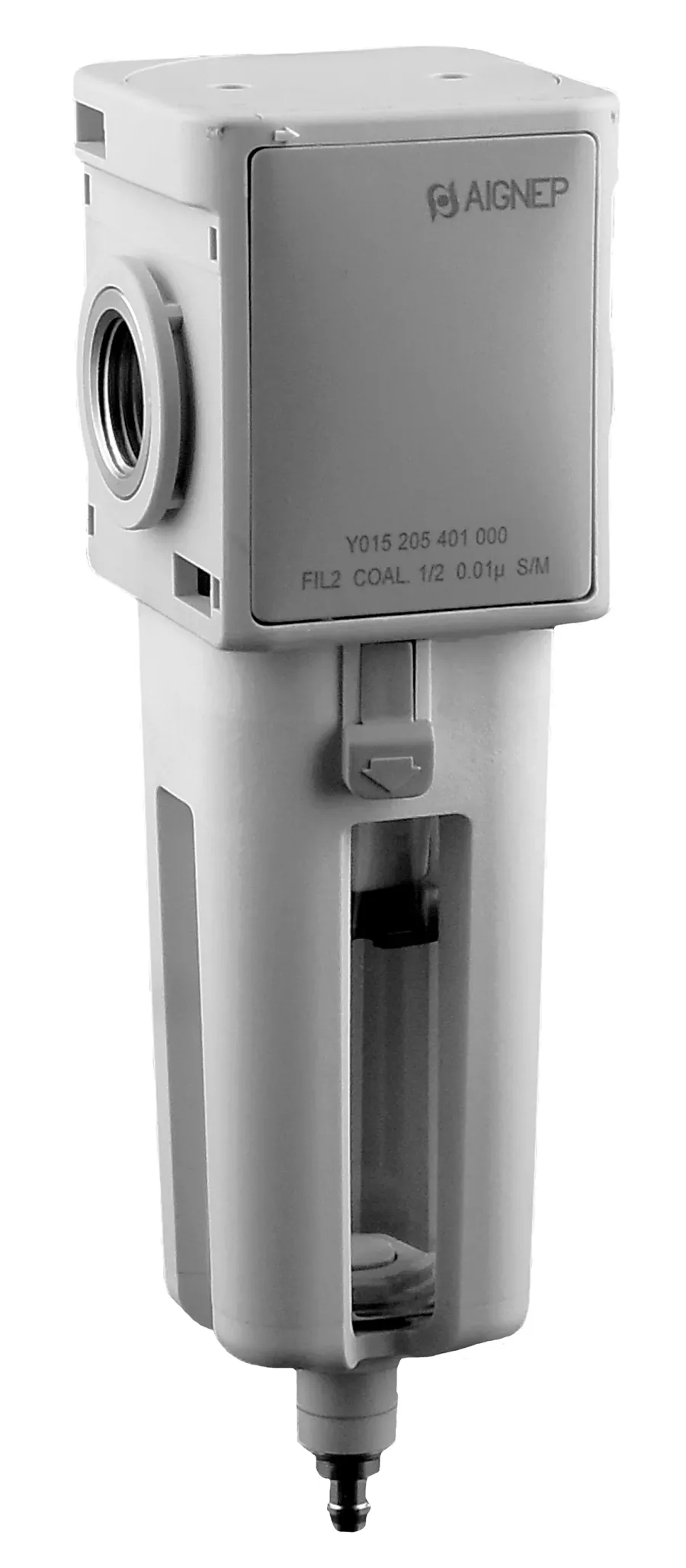

COALESCER FILTER - NPTF
*Automatic with float (max 8 bar)

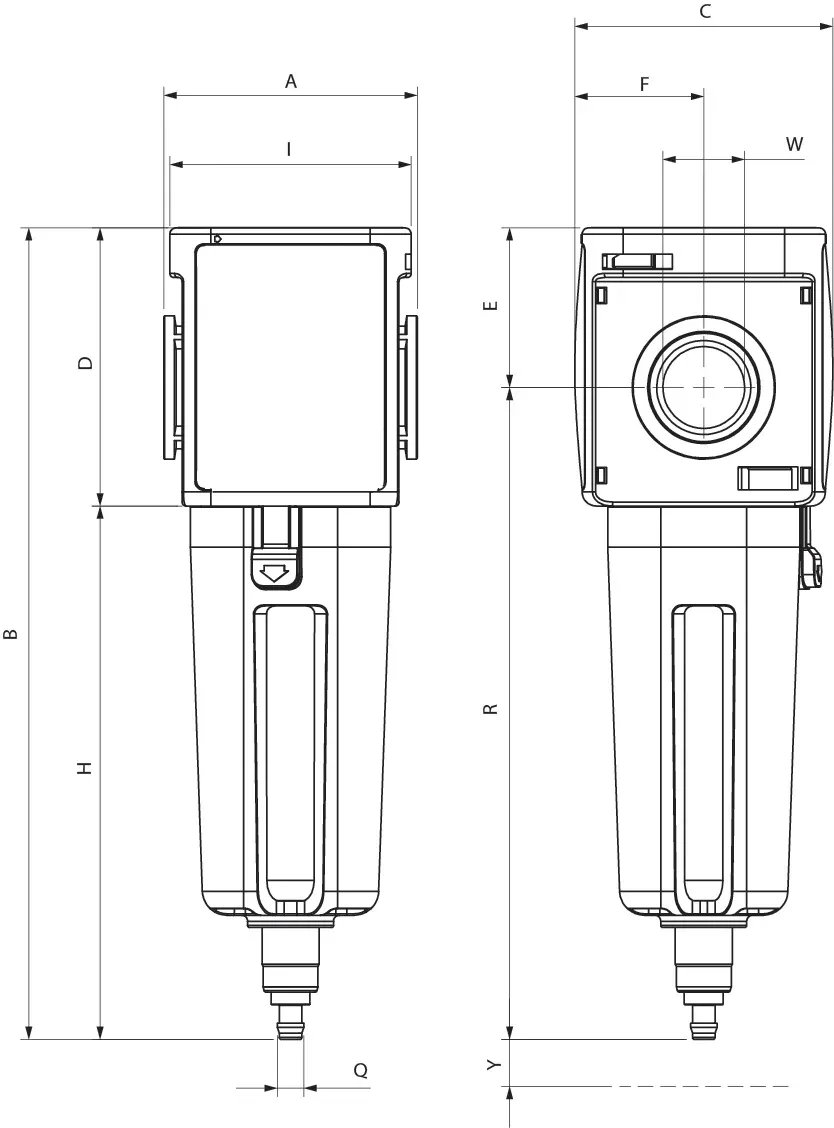

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Filtration | Flow Rate | Exhaust | A | B | C | D | W | E | F | H | I | Q | R | Y | T | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N015 103 401 000 | N015103401000 | Request access | FC 1 | 1/4 | 0,01 µm | 21,20 cfm (600 Nl/min) | Depressure drain | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | ||
| N015 103 402 000 | N015103402000 | Request access | FC 1 | 1/4 | 0,01 µm | 21,20 cfm (600 Nl/min) | Automatic with float | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | ||
| N015 104 401 000 | N015104401000 | Request access | FC 1 | 3/8 | 0,01 µm | 21,20 cfm (600 Nl/min) | Depressure drain | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | ||
| N015 104 402 000 | N015104402000 | Request access | FC 1 | 3/8 | 0,01 µm | 21,20 cfm (600 Nl/min) | Automatic with float | 2.008 (51) | 6.929 (176) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.280 (32.5) | 1.004 (25.5) | 4.685 (119) | 1.870 (47.5) | E.D .256 (6.5) | 5.669 (144) | 0.276 (7) | ||
| N015 204 401 000 | N015204401000 | Request access | FC 2 | 3/8 | 0,01 µm | 26,50 cfm (750 NI/min) | Depressure drain | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | ||
| N015 204 402 000 | N015204402000 | Request access | FC 2 | 3/8 | 0,01 µm | 26,50 cfm (750 NI/min) | Automatic with float | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | ||
| N015 205 401 000 | N015205401000 | Request access | FC 2 | 1/2 | 0,01 µm | 26,50 cfm (750 NI/min) | Depressure drain | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | ||
| N015 205 402 000 | N015205402000 | Request access | FC 2 | 1/2 | 0,01 µm | 26,50 cfm (750 NI/min) | Automatic with float | 2.441 (62) | 7.776 (197.5) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.535 (39) | 1.240 (31.5) | 5.098 (129.5) | 2.323 (59) | E.D .256 (6.5) | 6.240 (158.5) | 0.374 (9.5) | ||
| N015 307 401 000 | N015307401000 | Request access | FC 3 | 3/4 | 0,01 µm | 49,40 cfm (1400 NI/min) | Depressure drain | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | ||
| N015 307 402 000 | N015307402000 | Request access | FC 3 | 3/4 | 0,01 µm | 49,40 cfm (1400 NI/min) | Automatic with float | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | ||
| N015 309 401 000 | N015309401000 | Request access | FC 3 | 1 | 0,01 µm | 49,40 cfm (1400 NI/min) | Depressure drain | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) | ||
| N015 309 402 000 | N015309402000 | Request access | FC 3 | 1 | 0,01 µm | 49,40 cfm (1400 NI/min) | Automatic with float | 3.543 (90) | 9.842 (250) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.850 (47) | 1.811 (46) | 6.338 (161) | 3.051 (77,5) | Tube 8x6 | 7.992 (203) | 2,755 (70) |
