N090

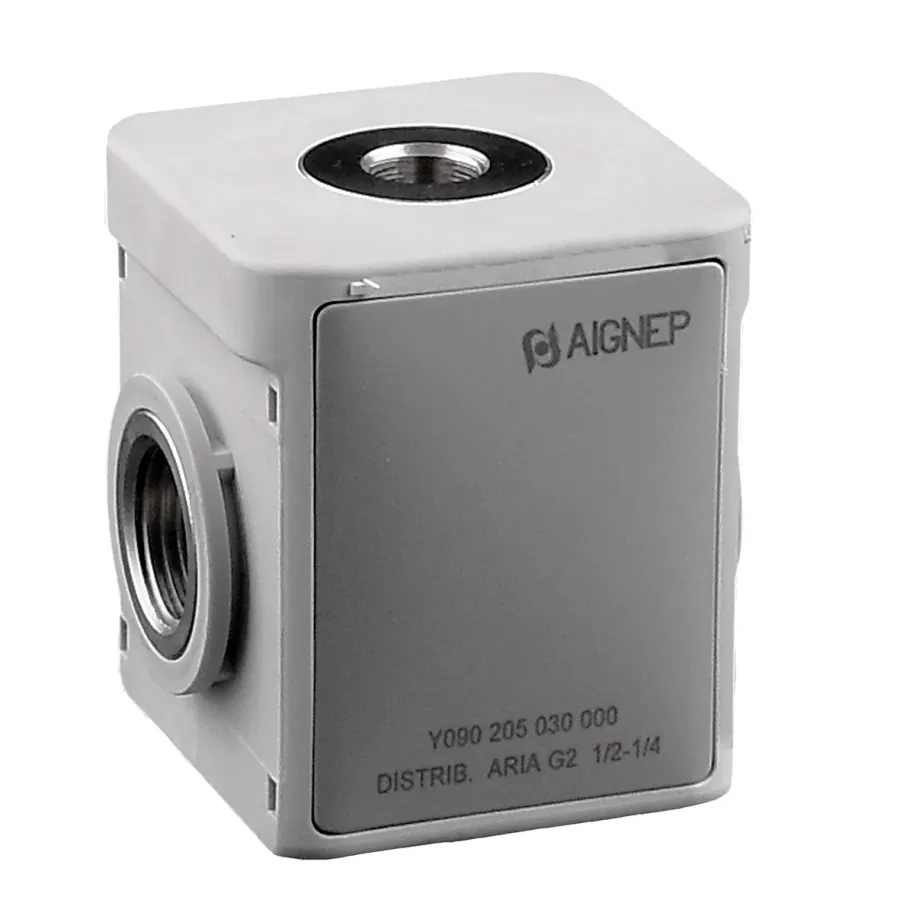

AIR DISTRIBUTOR - NPTF

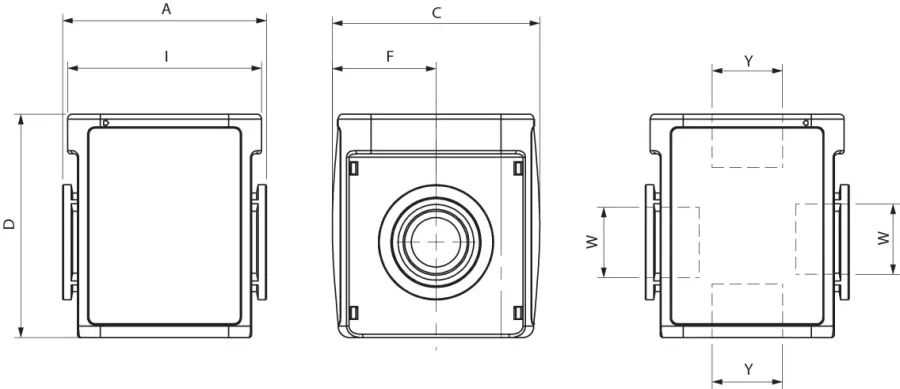

| Code | USA Ref | 3D Drawings | Size | Thread (NPTF) | Flow Rate | A | C | D | W | F | I | Y | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N090 103 030 000 | N090103030000 | Request access | DIS 1 | 1/4 - 1/4 | 120,10 cfm (3400 Nl/min) | 2.008 (51) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.004 (25.5) | 1.870 (47.5) | 1/4 - 3/8 | |
| N090 104 030 000 | N090104030000 | Request access | DIS 1 | 3/8 - 1/4 | 120,10 cfm (3400 Nl/min) | 2.008 (51) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.004 (25.5) | 1.870 (47.5) | 1/4 - 3/8 | |
| N090 104 040 000 | N090104040000 | Request access | DIS 1 | 3/8 - 3/8 | 120,10 cfm (3400 Nl/min) | 2.008 (51) | 2.008 (51) | 2.244 (57) | 1/4 - 3/8 | 1.004 (25.5) | 1.870 (47.5) | 1/4 - 3/8 | |
| N090 204 030 000 | N090204030000 | Request access | DIS 2 | 3/8 - 1/4 | 215,40 cfm (6100 Nl/min) | 2.441 (62) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.240 (31.5) | 2.323 (59) | 1/4 - 3/8 - 1/2 | |
| N090 204 040 000 | N090204040000 | Request access | DIS 2 | 3/8 - 3/8 | 215,40 cfm (6100 Nl/min) | 2.441 (62) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.240 (31.5) | 2.323 (59) | 1/4 - 3/8 - 1/2 | |
| N090 205 030 000 | N090205030000 | Request access | DIS 2 | 1/2 - 1/4 | 215,40 cfm (6100 Nl/min) | 2.441 (62) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.240 (31.5) | 2.323 (59) | 1/4 - 3/8 - 1/2 | |
| N090 205 050 000 | N090205050000 | Request access | DIS 2 | 1/2 - 1/2 | 215,40 cfm (6100 Nl/min) | 2.441 (62) | 2.480 (63) | 2.677 (68) | 3/8 - 1/2 | 1.240 (31.5) | 2.323 (59) | 1/4 - 3/8 - 1/2 | |
| N090 307 070 000 | N090307070000 | Request access | DIS 3 | 3/4 - 3/4 | 413,10 cfm (11700 Nl/min) | 3.543 (90) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.811 (46) | 3.051 (77,5) | 3/4 - 1 | |
| N090 309 090 000 | N090309090000 | Request access | DIS 3 | 1 - 1 | 413,10 cfm (11700 Nl/min) | 3.543 (90) | 3.622 (92) | 3.503 (89) | 3/4 - 1 | 1.811 (46) | 3.051 (77,5) | 3/4 - 1 |
