Filter
N016

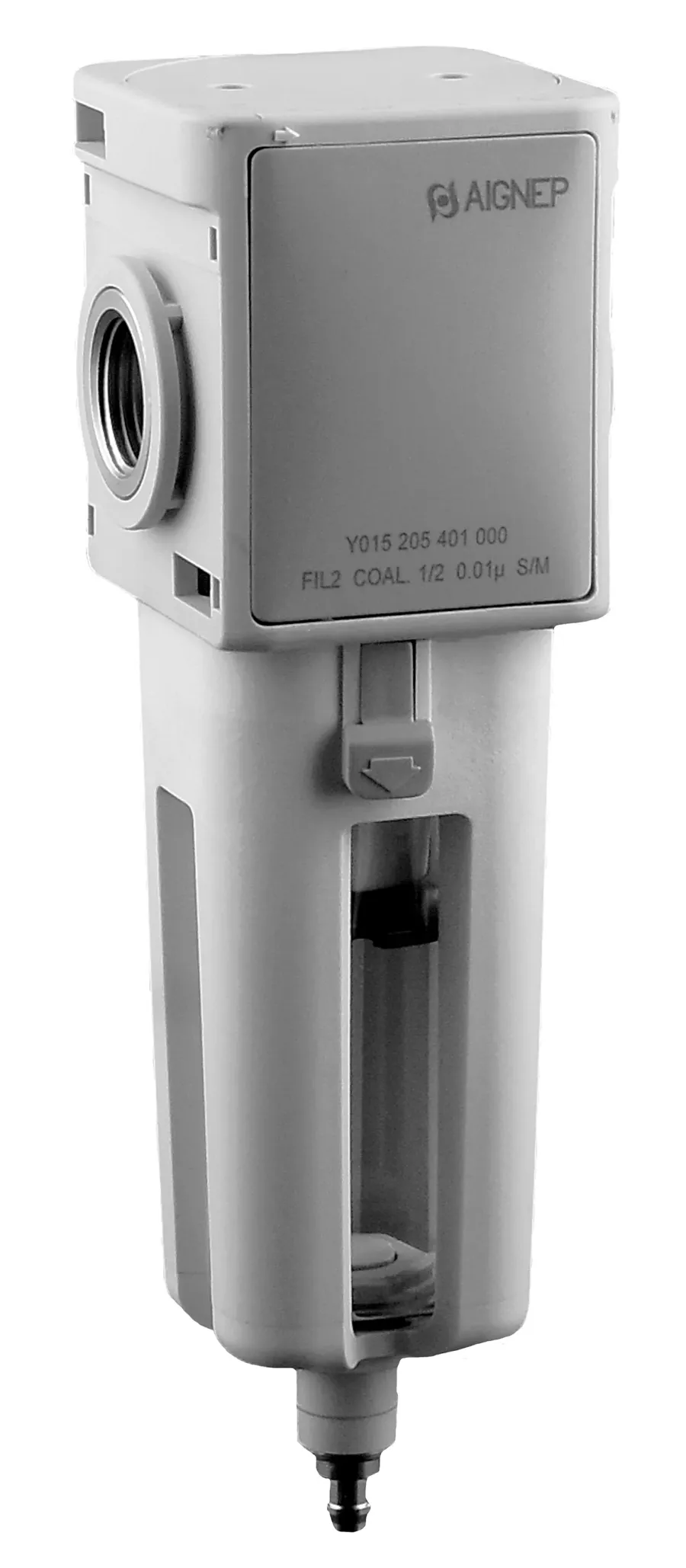

ACTIVE CARBON FILTER - NPTF
|
Code |
USA Ref |
3D Drawings |
Size |
Thread (NPTF) |
Filtration |
Flow Rate |
Exhaust |

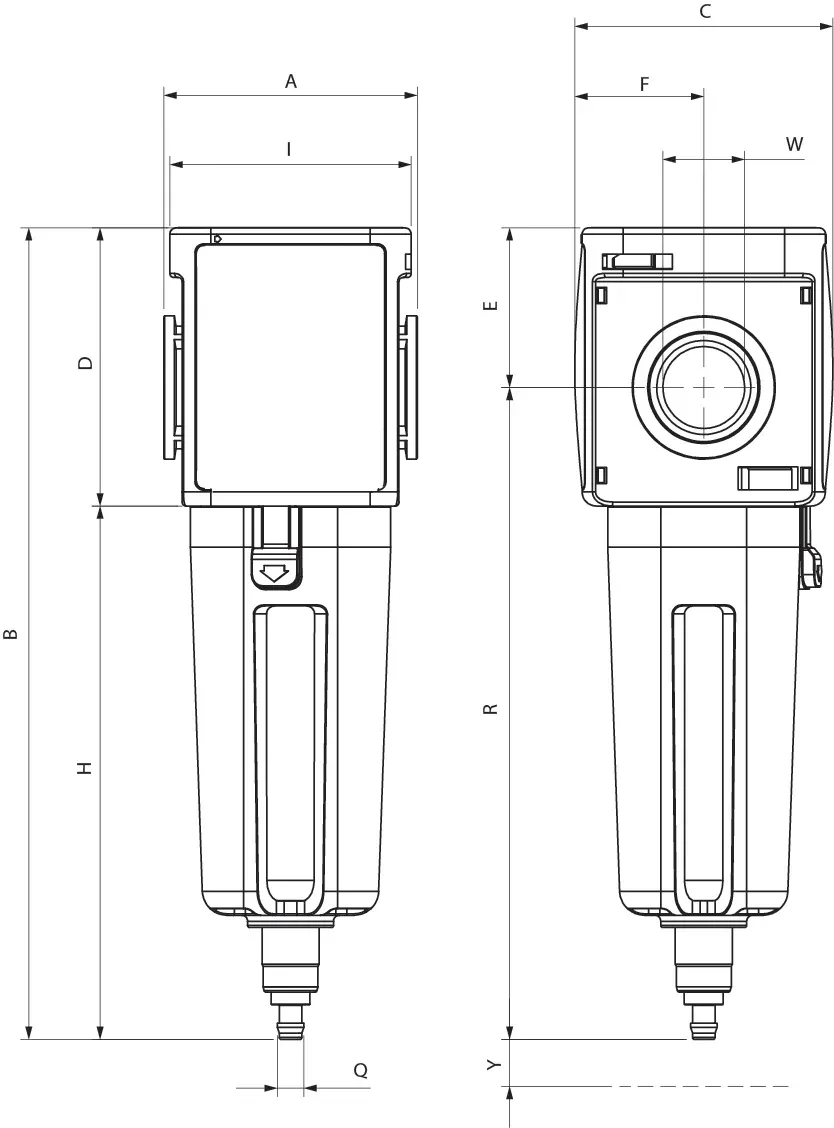

A |
B |
C |
D |
W |
E |
F |
H |
I |
Q |
R |
Y |
T |
|
N016 103 501 000
|
N016103501000
|
-
Request access
|
AC 1 |
1/4 |
< 0,005 mg/m3 |
44,80 cfm (1270 Nl/min) |
Depressure drain |
2.008 (51) |
6.929 (176) |
2.008 (51) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
4.685 (119) |
1.870 (47.5) |
Tube 8x6 |
5.669 (144) |
0.276 (7) |
|
|
N016 104 501 000
|
N016104501000
|
-
Request access
|
AC 1 |
3/8 |
< 0,005 mg/m3 |
44,80 cfm (1270 Nl/min) |
Depressure drain |
2.008 (51) |
6.929 (176) |
2.008 (51) |
2.244 (57) |
1/4 - 3/8 |
1.280 (32.5) |
1.004 (25.5) |
4.685 (119) |
1.870 (47.5) |
Tube 8x6 |
5.669 (144) |
0.276 (7) |
|
|
N016 204 501 000
|
N016204501000
|
-
Request access
|
AC 2 |
3/8 |
< 0,005 mg/m3 |
63,90 cfm (1810 Nl/min) |
Depressure drain |
2.441 (62) |
7.776 (197.5) |
2.480 (63) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
5.098 (129.5) |
2.323 (59) |
Tube 8x6 |
6.240 (158.5) |
0.374 (9.5) |
|
|
N016 205 501 000
|
N016205501000
|
-
Request access
|
AC 2 |
1/2 |
< 0,005 mg/m3 |
63,90 cfm (1810 Nl/min) |
Depressure drain |
2.441 (62) |
7.776 (197.5) |
2.480 (63) |
2.677 (68) |
3/8 - 1/2 |
1.535 (39) |
1.240 (31.5) |
5.098 (129.5) |
2.323 (59) |
Tube 8x6 |
6.240 (158.5) |
0.374 (9.5) |
|
|
N016 307 501 000
|
N016307501000
|
-
Request access
|
AC 3 |
3/4 |
< 0,005 mg/m3 |
123,60 cfm (3500 Nl/min) |
Depressure drain |
3.543 (90) |
9.842 (250) |
3.622 (92) |
3.503 (89) |
3/4 - 1 |
1.850 (47) |
1.811 (46) |
6.338 (161) |
3.051 (77,5) |
Tube 8x6 |
7.992 (203) |
|
2,755 (70) |
|
N016 309 501 000
|
N016309501000
|
-
Request access
|
AC 3 |
1 |
< 0,005 mg/m3 |
123,60 cfm (3500 Nl/min) |
Depressure drain |
3.543 (90) |
9.842 (250) |
3.622 (92) |
3.503 (89) |
3/4 - 1 |
1.850 (47) |
1.811 (46) |
6.338 (161) |
3.051 (77,5) |
Tube 8x6 |
7.992 (203) |
|
2,755 (70) |
