DIRECT ACTING SOLENOID VALVES - NPTF

Filter

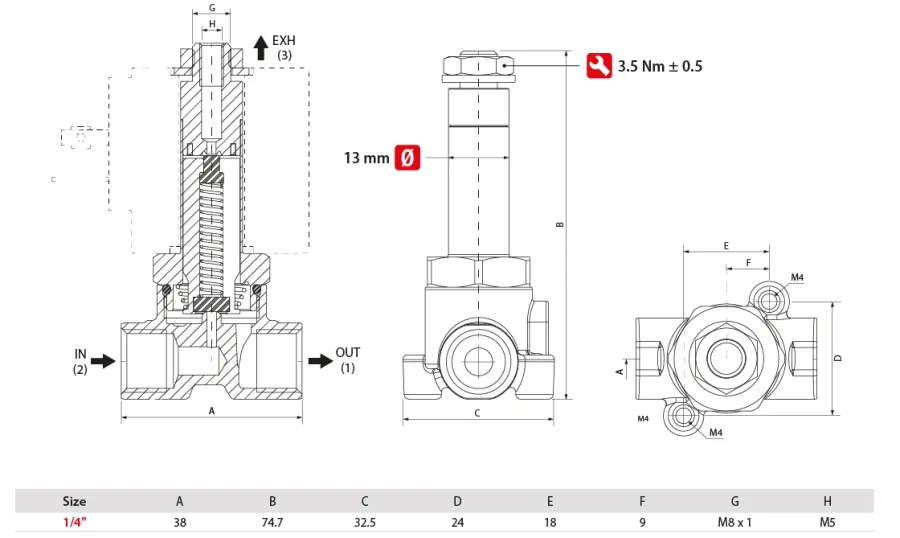

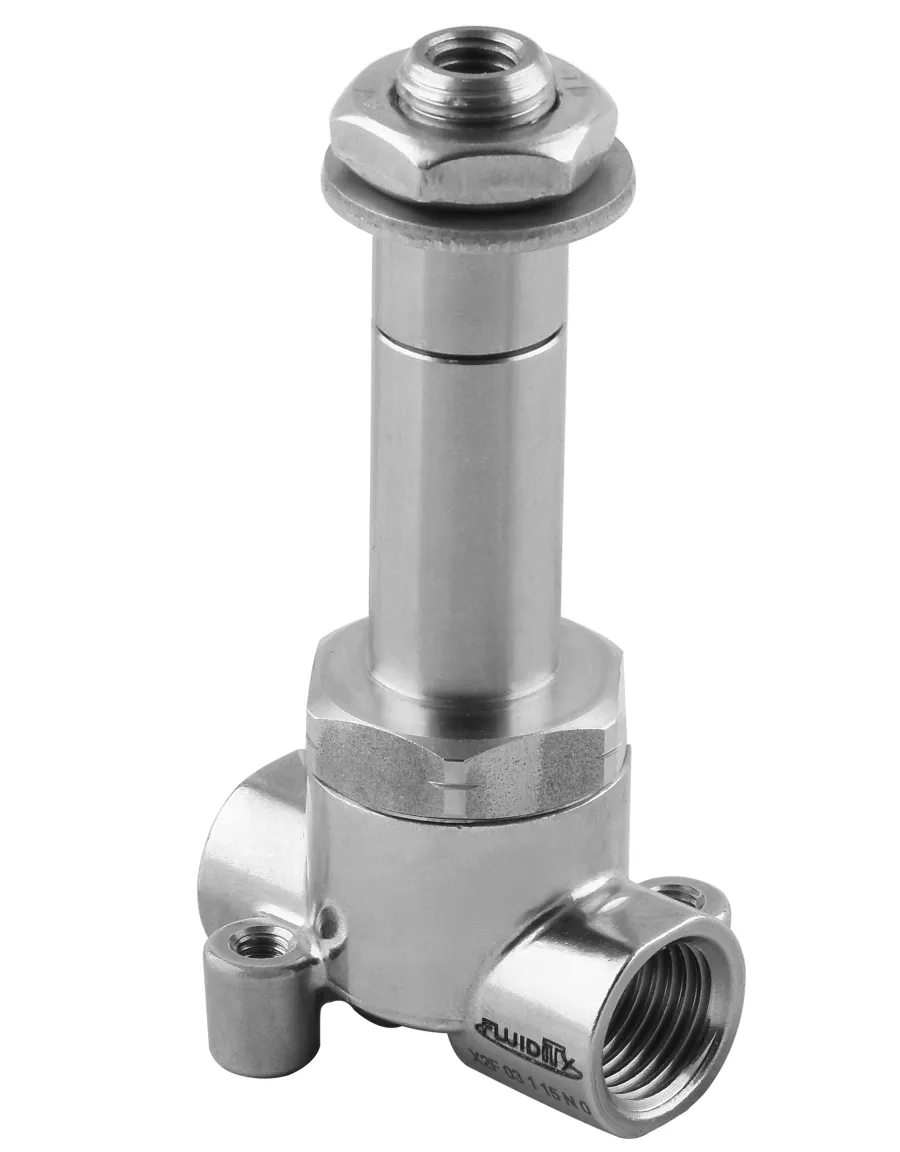

Serie X2F - 3/2 NC - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice IN/EXH - inch (mm)	Viscosity (cSt)	Cv IN/EXH - gpm (Kv IN/EXH - m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - DC (14 W)	OPD (ΔP) - DC (22 W)	OPD (ΔP) - AC (14 VA)	OPD (ΔP) - AC (21 VA)	OPD (ΔP) - AC (31 VA)	Package
X2F 03 3 15 N 0 N	X2F03315N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 - 5/64 (1.5 - 1.9)	25	0.07 - 0.12 (0.06 - 0.10)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 3 15 V 0 N	X2F03315V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 5/64 (1.5 - 1.9)	25	0.07 - 0.12 (0.06 - 0.10)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 3 15 E 0 N	X2F03315E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 5/64 (1.5 - 1.9)	25	0.07 - 0.12 (0.06 - 0.10)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 3 15 C 0 N	X2F03315C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/16 - 5/64 (1.5 - 1.9)	25	0.07 - 0.12 (0.06 - 0.10)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 3 02 N 0 N	X2F03302N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 5/64 (2 - 1.9)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 3 02 V 0 N	X2F03302V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 5/64 (2 - 1.9)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 3 02 E 0 N	X2F03302E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 5/64 (2 - 1.9)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 3 02 C 0 N	X2F03302C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 5/64 (2 - 1.9)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 3 25 N 0 N	X2F03325N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 - 5/64 (2.5 - 1.9)	37	0.17 - 0.12 (0.15 - 0.10)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	1
X2F 03 3 25 V 0 N	X2F03325V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 - 5/64 (2.5 - 1.9)	37	0.17 - 0.12 (0.15 - 0.10)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	1
X2F 03 3 25 E 0 N	X2F03325E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 - 5/64 (2.5 - 1.9)	37	0.17 - 0.12 (0.15 - 0.10)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	1
X2F 03 3 25 C 0 N	X2F03325C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	3/32 - 5/64 (2.5 - 1.9)	37	0.17 - 0.12 (0.15 - 0.10)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	0 - 189 psi (0 - 13 bar)	1
X2F 03 3 03 N 0 N	X2F03303N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/8 - 5/64 (3 - 1.9)	37	0.24 - 0.12 (0.21 - 0.10)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 3 03 V 0 N	X2F03303V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 - 5/64 (3 - 1.9)	37	0.24 - 0.12 (0.21 - 0.10)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 3 03 E 0 N	X2F03303E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 - 5/64 (3 - 1.9)	37	0.24 - 0.12 (0.21 - 0.10)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 3 03 C 0 N	X2F03303C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/8 - 5/64 (3 - 1.9)	37	0.24 - 0.12 (0.21 - 0.10)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 3 04 N 0 N	X2F03304N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/32 - 5/64 (4 - 1.9)	37	0.41 - 0.12 (0.35 - 0.10)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	1
X2F 03 3 04 V 0 N	X2F03304V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 - 5/64 (4 - 1.9)	37	0.41 - 0.12 (0.35 - 0.10)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	1
X2F 03 3 04 E 0 N	X2F03304E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 - 5/64 (4 - 1.9)	37	0.41 - 0.12 (0.35 - 0.10)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	1
X2F 03 3 04 C 0 N	X2F03304C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/32 - 5/64 (4 - 1.9)	37	0.41 - 0.12 (0.35 - 0.10)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	0 - 87 psi (0 - 6 bar)	1
X2F 03 3 05 N 0 N	X2F03305N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	13/64 - 5/64 (5 - 1.9)	37	0.59 - 0.12 (0.51 - 0.10)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	1
X2F 03 3 05 V 0 N	X2F03305V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	13/64 - 5/64 (5 - 1.9)	37	0.59 - 0.12 (0.51 - 0.10)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	1
X2F 03 3 05 E 0 N	X2F03305E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	13/64 - 5/64 (5 - 1.9)	37	0.59 - 0.12 (0.51 - 0.10)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	1
X2F 03 3 05 C 0 N	X2F03305C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	13/64 - 5/64 (5 - 1.9)	37	0.59 - 0.12 (0.51 - 0.10)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	0 - 44 psi (0 - 3 bar)	1
