DIRECT ACTING SOLENOID VALVES - NPTF

Filter

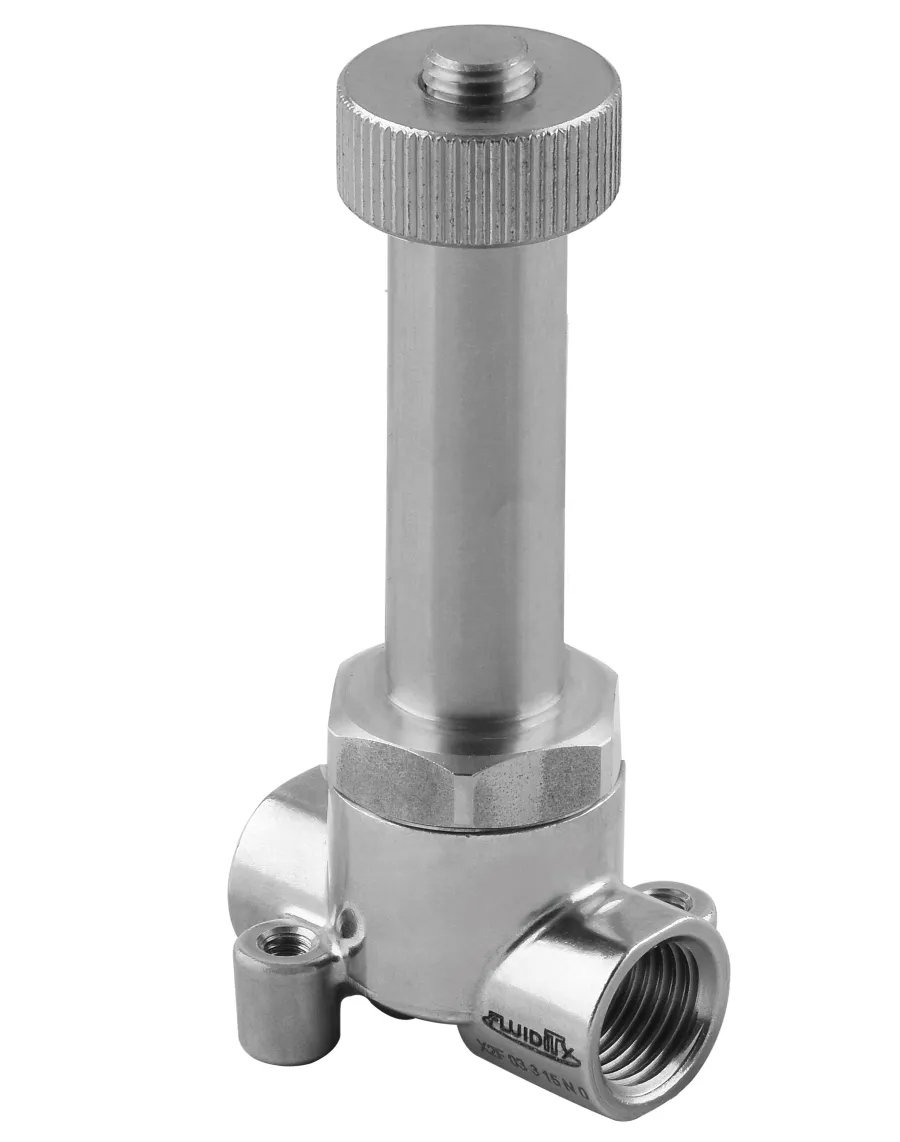

Serie X2F - 2/2 NO - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (14 W)	OPD (ΔP) - DC (22 W)	OPD (ΔP) - AC (14 VA)	OPD (ΔP) - AC (21 VA)	OPD (ΔP) - AC (31 VA)	Package
X2F 03 2 15 N 0 N	X2F03215N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 2 15 V 0 N	X2F03215V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 2 15 E 0 N	X2F03215E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 2 15 C 0 N	X2F03215C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	0 - 363 psi (0 - 25 bar)	1
X2F 03 2 02 N 0 N	X2F03202N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 2 02 V 0 N	X2F03202V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 2 02 E 0 N	X2F03202E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 2 02 C 0 N	X2F03202C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X2F 03 2 25 N 0 N	X2F03225N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	1
X2F 03 2 25 V 0 N	X2F03225V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	1
X2F 03 2 25 E 0 N	X2F03225E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	1
X2F 03 2 25 C 0 N	X2F03225C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	0 - 174 psi (0 - 12 bar)	1
X2F 03 2 03 N 0 N	X2F03203N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
X2F 03 2 03 V 0 N	X2F03203V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
X2F 03 2 03 E 0 N	X2F03203E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
X2F 03 2 03 C 0 N	X2F03203C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
X2F 03 2 04 N 0 N	X2F03204N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
X2F 03 2 04 V 0 N	X2F03204V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
X2F 03 2 04 E 0 N	X2F03204E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
X2F 03 2 04 C 0 N	X2F03204C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
X2F 03 2 05 N 0 N	X2F03205N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
X2F 03 2 05 V 0 N	X2F03205V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
X2F 03 2 05 E 0 N	X2F03205E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
X2F 03 2 05 C 0 N	X2F03205C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
