DIRECT ACTING SOLENOID VALVES - NPTF

Filter

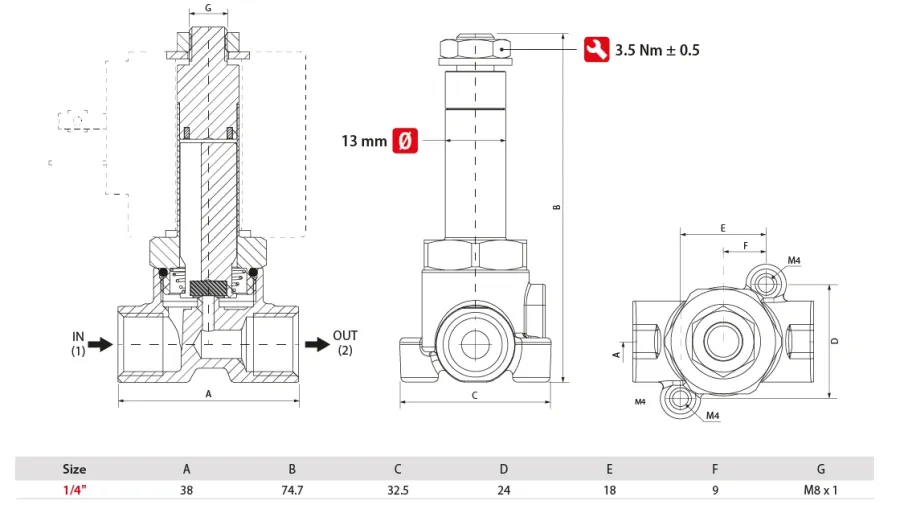

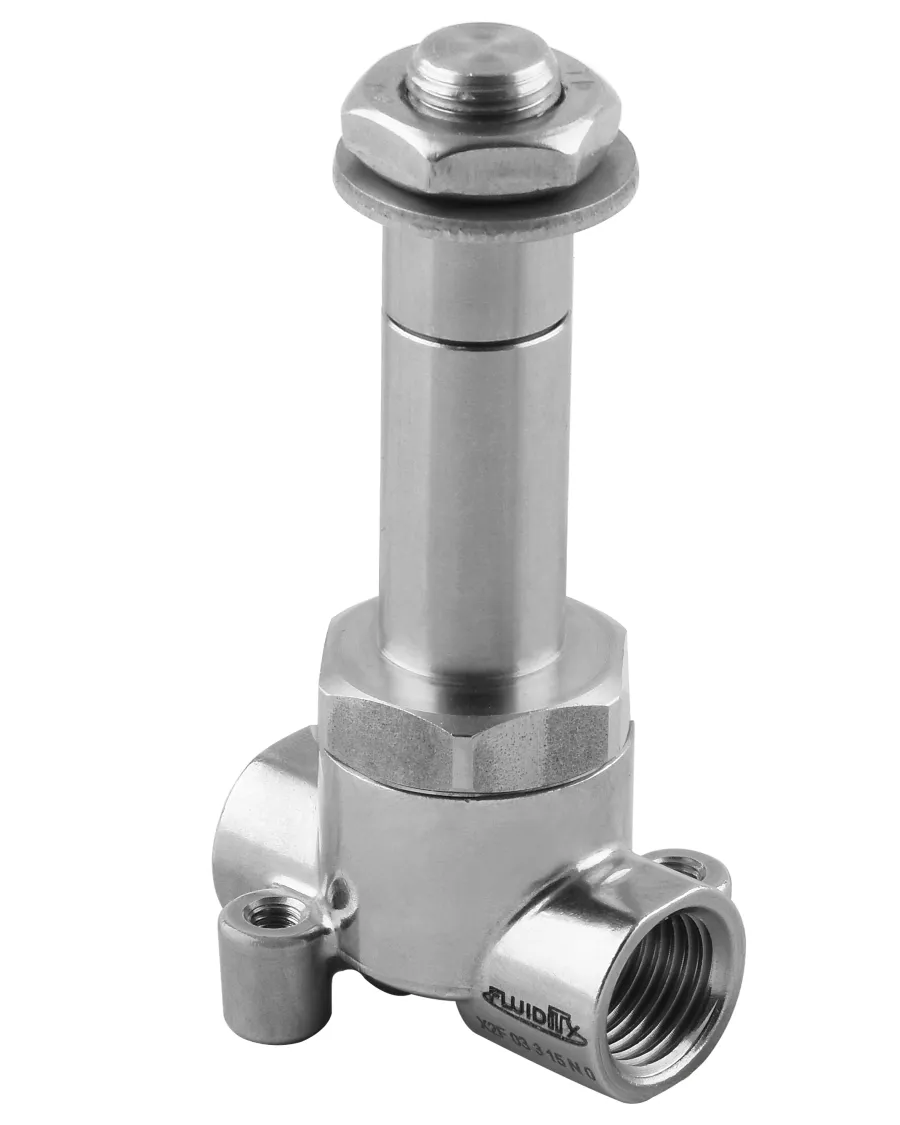

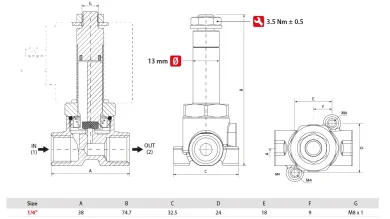

Serie X2F - 2/2 NC - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - DC (14 W)	OPD (ΔP) - DC (22 W)	OPD (ΔP) - AC (14 VA)	OPD (ΔP) - AC (21 VA)	OPD (ΔP) - AC (31 VA)	Package
X2F 03 1 15 N 0 N	X2F03115N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 15 F 0 N	X2F03115F0N	Request access	NBR	-40°F +194°F (-40°C +90°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 15 V 0 N	X2F03115V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 15 E 0 N	X2F03115E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 15 P 0 N	X2F03115P0N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 15 C 0 N	X2F03115C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 02 N 0 N	X2F03102N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 508 psi (0 - 35 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 02 F 0 N	X2F03102F0N	Request access	NBR	-40°F +194°F (-40°C +90°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 508 psi (0 - 35 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 02 V 0 N	X2F03102V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 508 psi (0 - 35 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 02 E 0 N	X2F03102E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 508 psi (0 - 35 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 02 P 0 N	X2F03102P0N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 508 psi (0 - 35 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 02 C 0 N	X2F03102C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 (2)	37	0.12 (0.1)	0 - 508 psi (0 - 35 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 25 N 0 N	X2F03125N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 653 psi (0 - 45 bar)	0 - 508 psi (0 - 35 bar)	0 - 580 psi (0 - 40 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 25 F 0 N	X2F03125F0N	Request access	NBR	-40°F +194°F (-40°C +90°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 653 psi (0 - 45 bar)	0 - 508 psi (0 - 35 bar)	0 - 580 psi (0 - 40 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 25 V 0 N	X2F03125V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 653 psi (0 - 45 bar)	0 - 508 psi (0 - 35 bar)	0 - 580 psi (0 - 40 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 25 E 0 N	X2F03125E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 653 psi (0 - 45 bar)	0 - 508 psi (0 - 35 bar)	0 - 580 psi (0 - 40 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 25 P 0 N	X2F03125P0N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 653 psi (0 - 45 bar)	0 - 508 psi (0 - 35 bar)	0 - 580 psi (0 - 40 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 25 C 0 N	X2F03125C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 653 psi (0 - 45 bar)	0 - 508 psi (0 - 35 bar)	0 - 580 psi (0 - 40 bar)	0 - 725 psi (0 - 50 bar)	1
X2F 03 1 03 N 0 N	X2F03103N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
X2F 03 1 03 F 0 N	X2F03103F0N	Request access	NBR	-40°F +194°F (-40°C +90°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
X2F 03 1 03 V 0 N	X2F03103V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
X2F 03 1 03 E 0 N	X2F03103E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
X2F 03 1 03 P 0 N	X2F03103P0N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
X2F 03 1 03 C 0 N	X2F03103C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
X2F 03 1 04 N 0 N	X2F03104N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
X2F 03 1 04 F 0 N	X2F03104F0N	Request access	NBR	-40°F +194°F (-40°C +90°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
X2F 03 1 04 V 0 N	X2F03104V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
X2F 03 1 04 E 0 N	X2F03104E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
X2F 03 1 04 P 0 N	X2F03104P0N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
X2F 03 1 04 C 0 N	X2F03104C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
X2F 03 1 05 N 0 N	X2F03105N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 1 05 F 0 N	X2F03105F0N	Request access	NBR	-40°F +194°F (-40°C +90°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 1 05 V 0 N	X2F03105V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 1 05 E 0 N	X2F03105E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 1 05 P 0 N	X2F03105P0N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
X2F 03 1 05 C 0 N	X2F03105C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
