DIRECT ACTING SOLENOID VALVES - NPTF

Filter

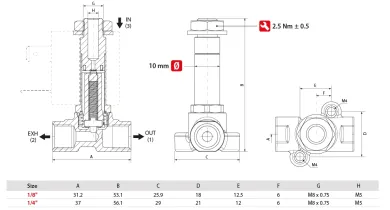

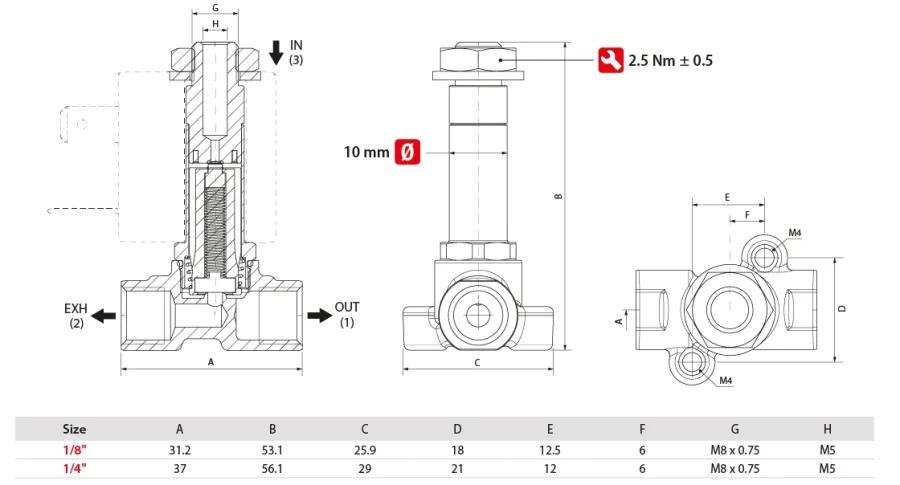

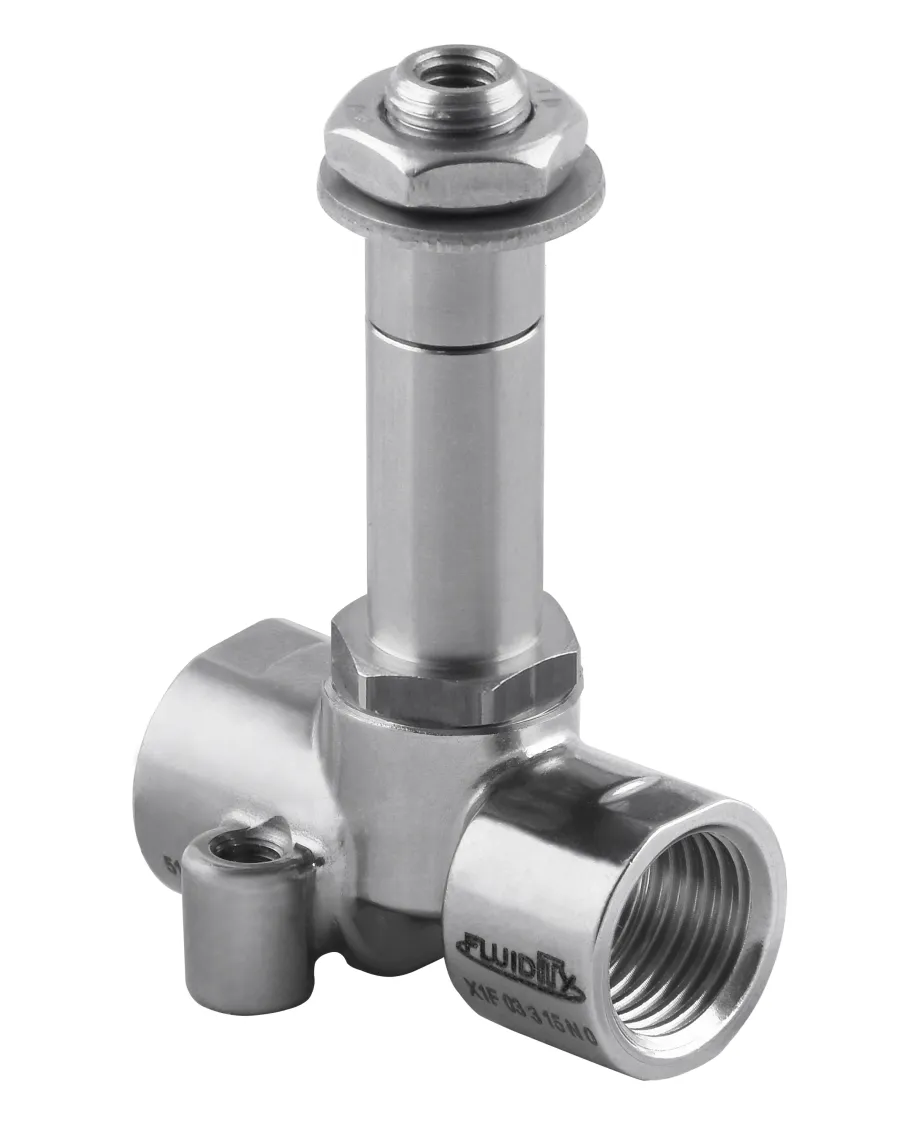

Serie X1F - 3/2 NO - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice IN/EXH - inch (mm)	Viscosity (cSt)	Cv IN/EXH - gpm (Kv IN/EXH - m3/h)	OPD (ΔP) - DC (6.5 W)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)	Package
X1F 02 4 15 N 0 N	X1F02415N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 - 1/16 (1.4 - 1.5)	25	0.06 - 0.07 (0.05 - 0.06)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 15 V 0 N	X1F02415V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 1/16 (1.4 - 1.5)	25	0.06 - 0.07 (0.05 - 0.06)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 15 E 0 N	X1F02415E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 1/16 (1.4 - 1.5)	25	0.06 - 0.07 (0.05 - 0.06)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 02 N 0 N	X1F02402N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 - 5/64 (1.4 - 2)	25	0.06 - 0.1 (0.05 - 0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 02 V 0 N	X1F02402V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 5/64 (1.4 - 2)	25	0.06 - 0.1 (0.05 - 0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 02 E 0 N	X1F02402E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 5/64 (1.4 - 2)	25	0.06 - 0.1 (0.05 - 0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 25 N 0 N	X1F02425N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 - 3/32 (1.4 - 2.5)	25	0.06 - 0.17 (0.05 - 0.15)	0 - 58 psi (0 - 4 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 25 V 0 N	X1F02425V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 3/32 (1.4 - 2.5)	25	0.06 - 0.17 (0.05 - 0.15)	0 - 58 psi (0 - 4 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 4 25 E 0 N	X1F02425E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 3/32 (1.4 - 2.5)	25	0.06 - 0.17 (0.05 - 0.15)	0 - 58 psi (0 - 4 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 15 N 0 N	X1F03415N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 - 1/16 (1.4 - 1.5)	25	0.06 - 0.07 (0.05 - 0.06)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 15 V 0 N	X1F03415V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 1/16 (1.4 - 1.5)	25	0.06 - 0.07 (0.05 - 0.06)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 15 E 0 N	X1F03415E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 1/16 (1.4 - 1.5)	25	0.06 - 0.07 (0.05 - 0.06)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 02 N 0 N	X1F03402N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 - 5/64 (1.4 - 2)	25	0.06 - 0.1 (0.05 - 0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 02 V 0 N	X1F03402V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 5/64 (1.4 - 2)	25	0.06 - 0.1 (0.05 - 0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 02 E 0 N	X1F03402E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 5/64 (1.4 - 2)	25	0.06 - 0.1 (0.05 - 0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 25 N 0 N	X1F03425N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 - 3/32 (1.4 - 2.5)	25	0.06 - 0.17 (0.05 - 0.15)	0 - 58 psi (0 - 4 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 25 V 0 N	X1F03425V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 3/32 (1.4 - 2.5)	25	0.06 - 0.17 (0.05 - 0.15)	0 - 58 psi (0 - 4 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 4 25 E 0 N	X1F03425E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 3/32 (1.4 - 2.5)	25	0.06 - 0.17 (0.05 - 0.15)	0 - 58 psi (0 - 4 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
