DIRECT ACTING SOLENOID VALVES - NPTF

Filter

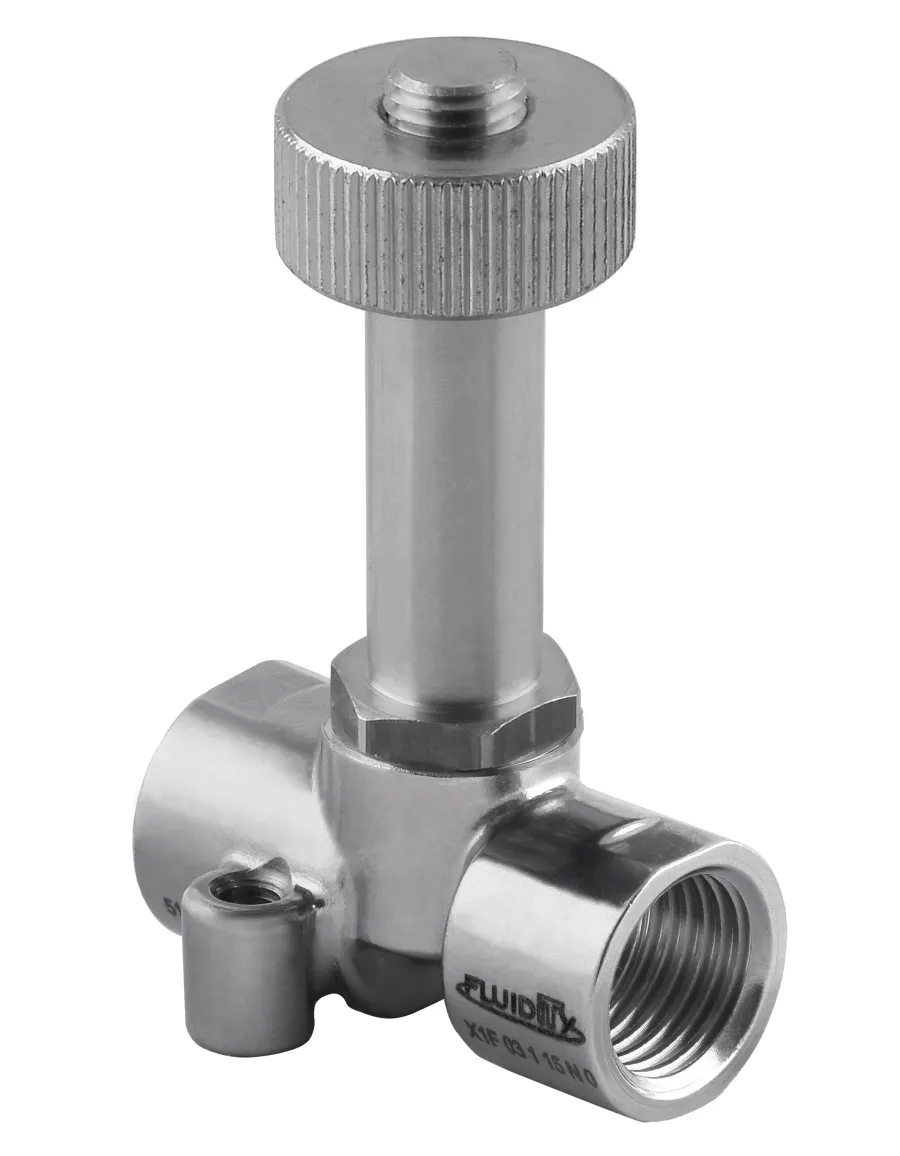

Serie X1F - 2/2 NO - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)	Package
X1F 02 2 15 N 0 N	X1F02215N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 02 2 15 V 0 N	X1F02215V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 02 2 15 E 0 N	X1F02215E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 02 2 15 C 0 N	X1F02215C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 02 2 02 N 0 N	X1F02202N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 2 02 V 0 N	X1F02202V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 2 02 E 0 N	X1F02202E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 2 02 C 0 N	X1F02202C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 02 2 25 N 0 N	X1F02225N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 02 2 25 V 0 N	X1F02225V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 02 2 25 E 0 N	X1F02225E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 02 2 25 C 0 N	X1F02225C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 02 2 03 N 0 N	X1F02203N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 02 2 03 V 0 N	X1F02203V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 02 2 03 E 0 N	X1F02203E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 02 2 03 C 0 N	X1F02203C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 03 2 15 N 0 N	X1F03215N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 03 2 15 V 0 N	X1F03215V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 03 2 15 E 0 N	X1F03215E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 03 2 15 C 0 N	X1F03215C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	0 - 261 psi (0 - 18 bar)	1
X1F 03 2 02 N 0 N	X1F03202N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 2 02 V 0 N	X1F03202V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 2 02 E 0 N	X1F03202E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 2 02 C 0 N	X1F03202C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	0 - 145 psi (0 - 10 bar)	1
X1F 03 2 25 N 0 N	X1F03225N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 03 2 25 V 0 N	X1F03225V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 03 2 25 E 0 N	X1F03225E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 03 2 25 C 0 N	X1F03225C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	0 - 94 psi (0 - 6.5 bar)	1
X1F 03 2 03 N 0 N	X1F03203N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 03 2 03 V 0 N	X1F03203V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 03 2 03 E 0 N	X1F03203E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
X1F 03 2 03 C 0 N	X1F03203C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	0 - 61 psi (0 - 4.2 bar)	1
