| Code | USA Ref | 3D Drawings | Drawing | Sealing materials | Temperature | Ø X mm | Armature tube material | Function | Package | |
|---|---|---|---|---|---|---|---|---|---|---|

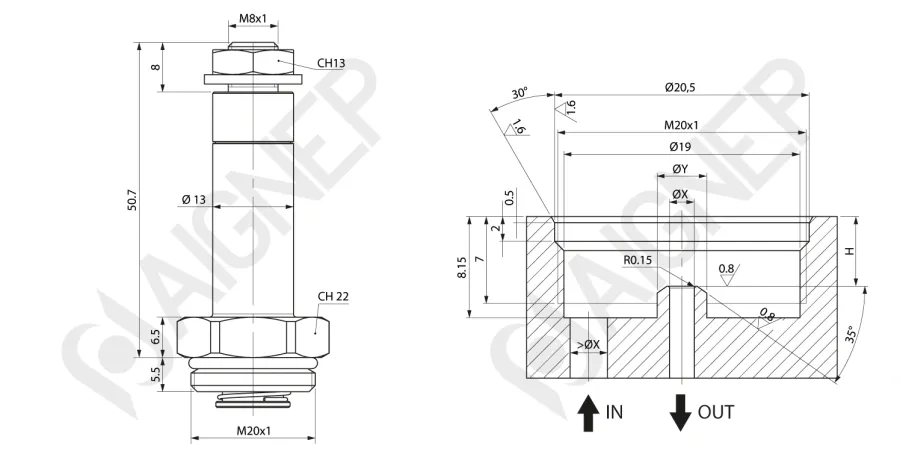

| OPK05 NT B2 NC 00 | OPK05NTB2NC00 | Request access | NBR | +14°F +194°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 2/2 NC | 1 | ||
| OPK05 VT B2 NC 00 | OPK05VTB2NC00 | Request access | FKM | +14°F +284°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 2/2 NC | 1 | ||
| OPK05 ET B2 NC 00 | OPK05VTB2NC00 | Request access | EPDM | +14°F +284°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 2/2 NC | 1 | ||
| OPK05 CT B2 NC 00 | OPK05CTB2NC00 | Request access | CR | -31°F +212°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 2/2 NC | 1 | ||
| OPK05 PT B2 NC 00 | OPK05PTB2NC00 | Request access | PTFE | -40°F +356°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 2/2 NC | 1 | ||
| OPK05 RT B2 NC 00 | OPK05RTB2NC00 | Request access | RUBY | -40°F +356°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 2/2 NC | 1 | ||
| OPK13 NT B2 NO 00 | OPK13NTB2NO00 | Request access | NBR | +14°F +194°F | 1,5 - 2 - 2,5 | Brass | 2/2 NO | 1 | ||
| OPK13 NT B2 NO 0X | OPK13NTB2NO0X | Request access | NBR | +14°F +194°F | 1,5 - 2 - 2,5 | Stainless steel | 2/2 NO | 1 | ||
| OPK13 VT B2 NO 00 | OPK13VTB2NO00 | Request access | FKM | +14°F +284°F | 1,5 - 2 - 2,5 | Brass | 2/2 NO | 1 | ||
| OPK13 VT B2 NO 0X | OPK13VTB2NO0X | Request access | FKM | +14°F +284°F | 1,5 - 2 - 2,5 | Stainless steel | 2/2 NO | 1 | ||
| OPK13 ET B2 NO 00 | OPK13ETB2NO00 | Request access | EPDM | +14°F +284°F | 1,5 - 2 - 2,5 | Brass | 2/2 NO | 1 | ||
| OPK13 ET B2 NO 0X | OPK13ETB2NO0X | Request access | EPDM | +14°F +284°F | 1,5 - 2 - 2,5 | Stainless steel | 2/2 NO | 1 | ||
| OPK13 CT B2 NO 00 | OPK13CTB2NO00 | Request access | CR | -31°F +212°F | 1,5 - 2 - 2,5 | Brass | 2/2 NO | 1 | ||
| OPK13 CT B2 NO 0X | OPK13CTB2NO0X | Request access | CR | -31°F +212°F | 1,5 - 2 - 2,5 | Stainless steel | 2/2 NO | 1 | ||
| OPK05 NT B2 NO 0X | OPK05NTB2NO0X | Request access | NBR | +14°F +194°F | 3 - 4 - 5 | Stainless steel | 2/2 NO | 1 | ||
| OPK05 VT B2 NO 0X | OPK05VTB2NO0X | Request access | FKM | +14°F +284°F | 3 - 4 - 5 | Stainless steel | 2/2 NO | 1 | ||
| OPK05 ET B2 NO 0X | OPK05ETB2NO0X | Request access | EPDM | +14°F +284°F | 3 - 4 - 5 | Stainless steel | 2/2 NO | 1 | ||
| OPK05 CT B2 NO 0X | OPK05CTB2NO0X | Request access | CR | -31°F +212°F | 3 - 4 - 5 | Stainless steel | 2/2 NO | 1 | ||

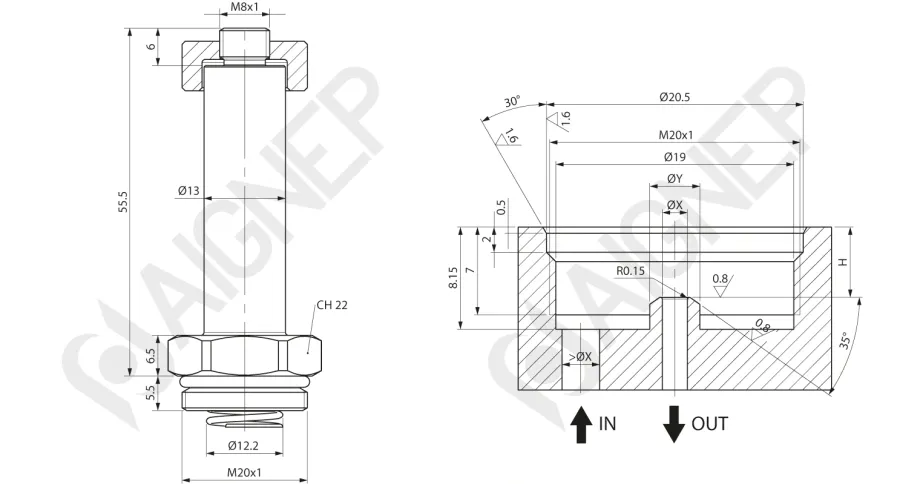

| OPK05 NT B2 NO 00 | OPK05NTB2NO00 | Request access | NBR | +14°F +194°F | 3 - 4 - 5 | Brass | 2/2 NO | 1 | ||

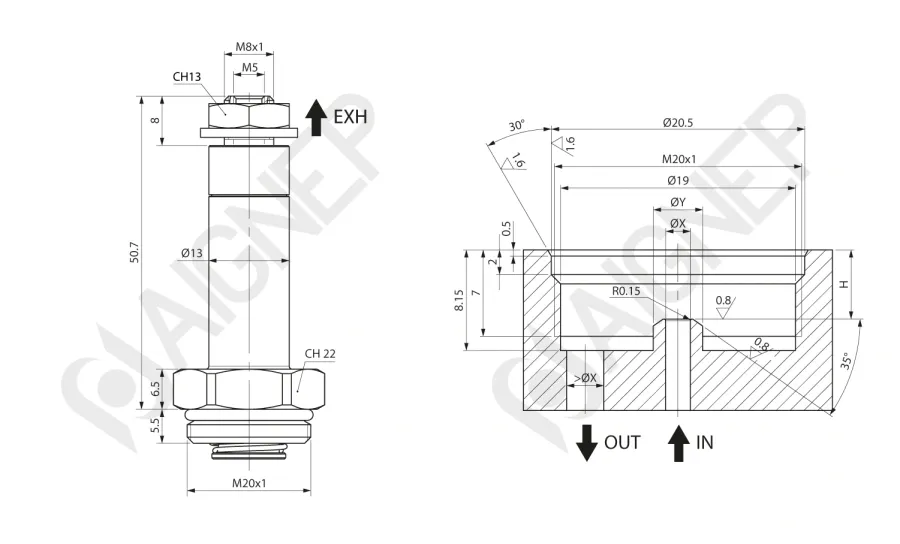

| OPK05 NT B3 NC 00 | OPK05NTB3NC00 | Request access | NBR | +14°F +194°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 3/2 NC | 1 | ||
| OPK05 VT B2 NO 00 | OPK05VTB2NO00 | Request access | FKM | +14°F +284°F | 3 - 4 - 5 | Brass | 2/2 NO | 1 | ||
| OPK05 VT B3 NC 00 | OPK05VTB3NC00 | Request access | FKM | +14°F +284°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 3/2 NC | 1 | ||
| OPK05 ET B2 NO 00 | OPK05ETB2NO00 | Request access | EPDM | +14°F +284°F | 3 - 4 - 5 | Brass | 2/2 NO | 1 | ||
| OPK05 ET B3 NC 00 | OPK05ETB3NC00 | Request access | EPDM | +14°F +284°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 3/2 NC | 1 | ||
| OPK05 CT B2 NO 00 | OPK05CTB2NO00 | Request access | CR | -31°F +212°F | 3 - 4 - 5 | Brass | 2/2 NO | 1 | ||
| OPK05 CT B3 NC 00 | OPK05CTB3NC00 | Request access | CR | -31°F +212°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 3/2 NC | 1 | ||
| OPK05 RT B3 NC 00 | OPK05RTB3NC00 | Request access | RUBY | -40°F +356°F | 1,5 - 2 - 2,5 - 3 - 4 - 5 | Stainless steel | 3/2 NC | 1 | ||

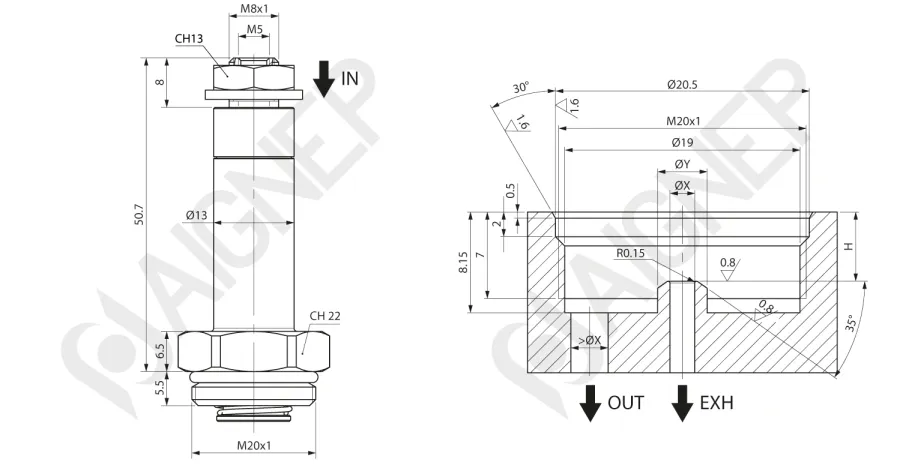

| OPK05 NT B3 NO 00 | OPK05VTB2NC00 | Request access | NBR | +14°F +194°F | 1,9 | Stainless steel | 3/2 NO | 1 | ||
| OPK05 VT B3 NO 00 | OPK05VTB2NC00 | Request access | FKM | +14°F +284°F | 1,9 | Stainless steel | 3/2 NO | 1 | ||
| OPK05 ET B3 NO 00 | OPK05VTB2NC00 | Request access | EPDM | +14°F +284°F | 1,9 | Stainless steel | 3/2 NO | 1 | ||
| OPK05 CT B3 NO 00 | OPK05CTB2NC00 | Request access | CR | -31°F +212°F | 1,9 | Stainless steel | 3/2 NO | 1 |
