Filter
| Code | USA Ref | 3D Drawings | Sealing material | Temperature | Port size - NPTF | Ø Orifice - inch (mm) | Viscosity (cSt) | Cv - gpm (Kv - m3/h) | OPD (ΔP) - DC (6.5 W) | OPD (ΔP) - AC (7.5 VA) | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

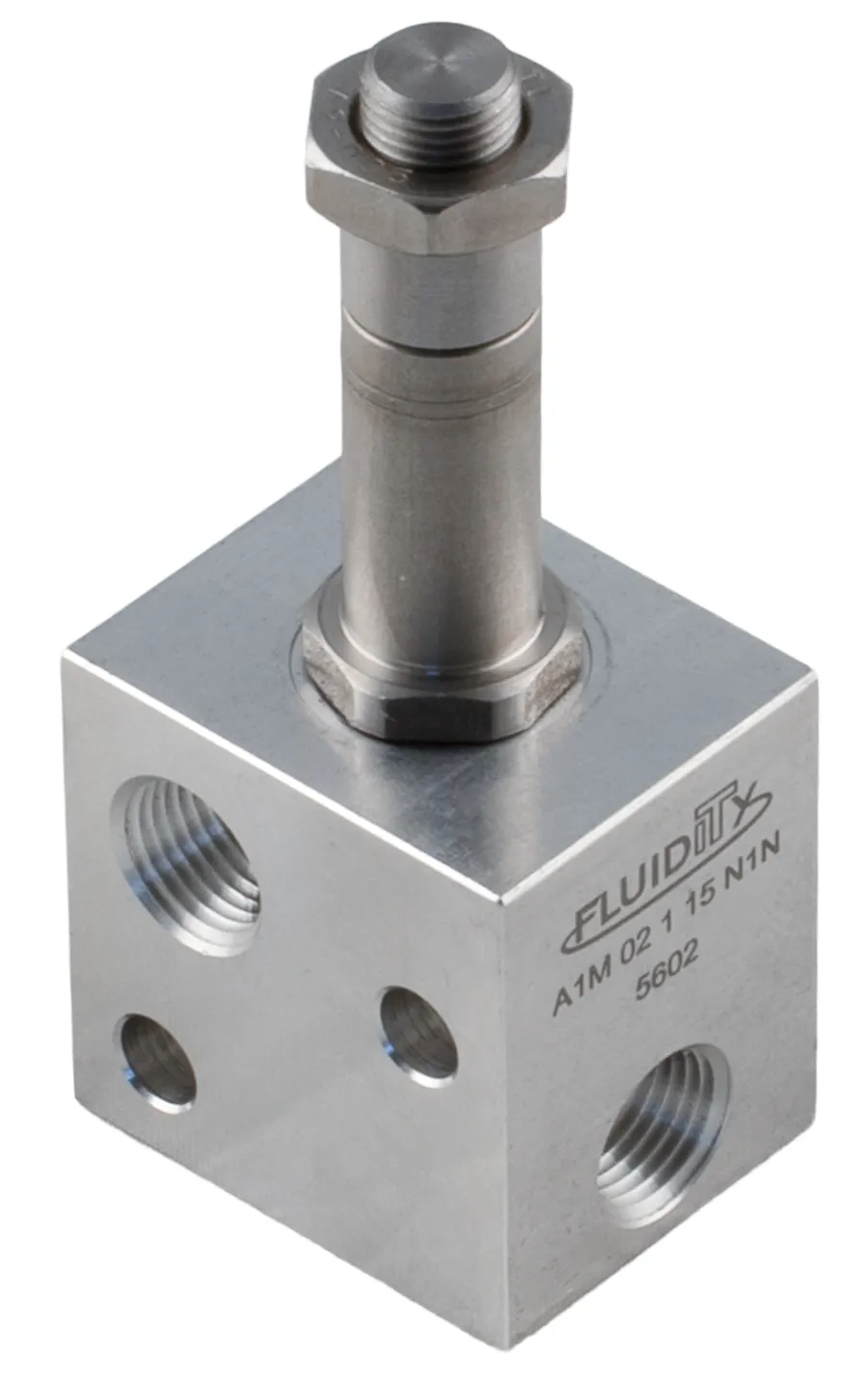

| A1M 02 1 15 N 1 N | A1M02115N1N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 232 psi (0 - 16 bar) | 0 - 435 psi (0 - 30 bar) | 1 | |
| A1M 02 1 15 V 1 N | A1M02115V1N | Request access | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 232 psi (0 - 16 bar) | 0 - 435 psi (0 - 30 bar) | 1 | |
| A1M 02 1 15 E 1 N | A1M02115E1N | Request access | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/16 (1.5) | 25 | 0.07 (0.06) | 0 - 232 psi (0 - 16 bar) | 0 - 435 psi (0 - 30 bar) | 1 | |
| A1M 02 1 02 N 1 N | A1M02102N1N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 174 psi (0 - 12 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| A1M 02 1 02 V 1 N | A1M02102V1N | Request access | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 174 psi (0 - 12 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| A1M 02 1 02 E 1 N | A1M02102E1N | Request access | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 5/64 (2) | 37 | 0.1 (0.09) | 0 - 174 psi (0 - 12 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| A1M 02 1 25 N 1 N | A1M02125N1N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 65 psi (0 - 4.5 bar) | 0 - 261 psi (0 - 18 bar) | 1 | |
| A1M 02 1 25 V 1 N | A1M02125V1N | Request access | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 65 psi (0 - 4.5 bar) | 0 - 261 psi (0 - 18 bar) | 1 | |
| A1M 02 1 25 E 1 N | A1M02125E1N | Request access | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 3/32 (2.5) | 53 | 0.17 (0.15) | 0 - 65 psi (0 - 4.5 bar) | 0 - 261 psi (0 - 18 bar) | 1 | |
| A1M 02 1 03 N 1 N | A1M02103N1N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1/8" | 1/8 (3) | 53 | 0.23 (0.20) | 0 - 44 psi (0 - 3 bar) | 0 - 145 psi (0 - 10 bar) | 1 | |
| A1M 02 1 03 V 1 N | A1M02103V1N | Request access | FKM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/8 (3) | 53 | 0.23 (0.20) | 0 - 44 psi (0 - 3 bar) | 0 - 145 psi (0 - 10 bar) | 1 | |
| A1M 02 1 03 E 1 N | A1M02103E1N | Request access | EPDM | +14°F +284°F (-10°C +140°C) | 1/8" | 1/8 (3) | 53 | 0.23 (0.20) | 0 - 44 psi (0 - 3 bar) | 0 - 145 psi (0 - 10 bar) | 1 |
