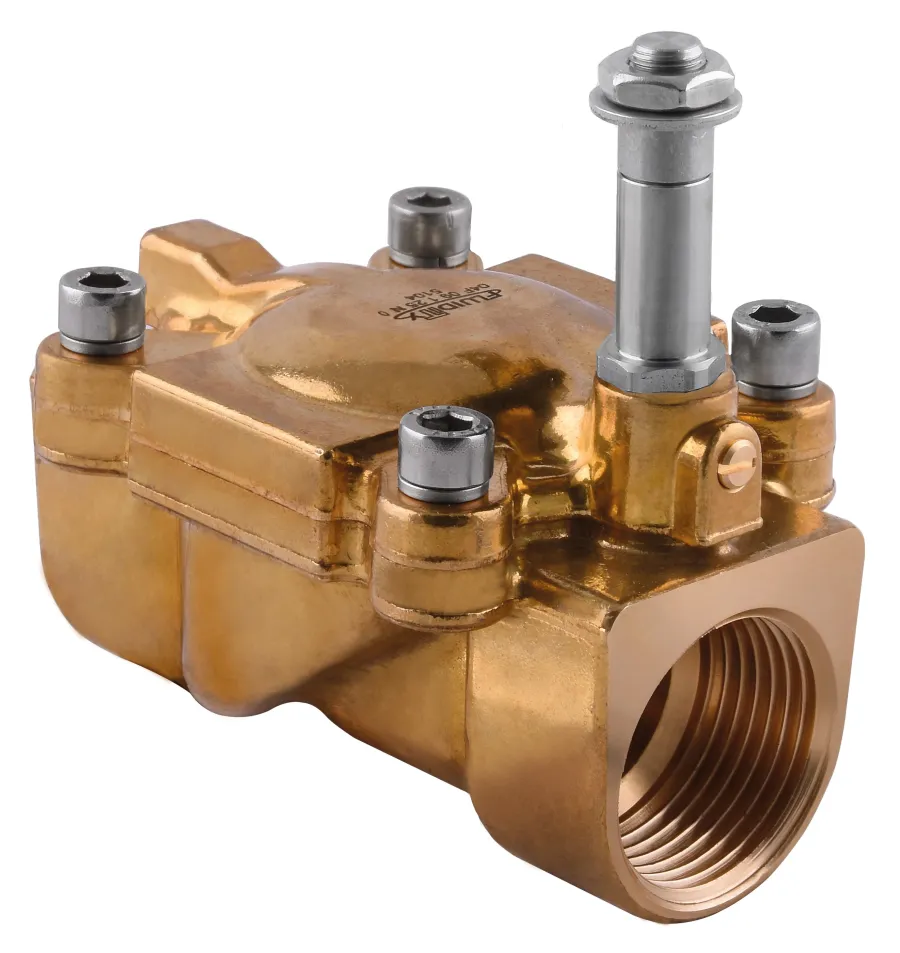

SERVO-ASSISTED SOLENOID VALVES WITH SPEED REGULATOR - NPTF

Filter

Serie 04F - 2/2 NC - 1/4" - 1" - NPTF

SERVO-ASSISTED SOLENOID VALVES WITH SPEED REGULATOR - NPTF

T = Without manual override 5 = Without manual override and with reinforced and guided diaphgram 1 = With manual override 3 = With manual override and with reinforced and guided diaphgram

Code	USA Ref	3D Drawings	Version	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (6.5 W)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)	Package
04F 07 1 18 N T N	04F07118NTN	Request access	T	NBR	+14°F +194 °F (-10°C +90°C)	3/4"	45/64(18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 V T N	04F07118VTN	Request access	T	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 E T N	04F07118ETN	Request access	T	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 N T N	04F09125NTN	Request access	T	NBR	+14°F +194 °F (-10°C +90°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 V T N	04F09125VTN	Request access	T	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 E T N	04F09125ETN	Request access	T	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 N 5 N	04F07118N5N	Request access	5	NBR	+14°F +194 °F (-10°C +90°C)	3/4"	45/64(18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 V 5 N	04F07118V5N	Request access	5	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 E 5 N	04F07118E5N	Request access	5	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 N 5 N	04F09125N5N	Request access	5	NBR	+14°F +194 °F (-10°C +90°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 V 5 N	04F09125V5N	Request access	5	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 E 5 N	04F09125E5N	Request access	5	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 N 1 N	04F07118N1N	Request access	1	NBR	+14°F +194 °F (-10°C +90°C)	3/4"	45/64(18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 V 1 N	04F07118V1N	Request access	1	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 E 1 N	04F07118E1N	Request access	1	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 N 1 N	04F09125N1N	Request access	1	NBR	+14°F +194 °F (-10°C +90°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 V 1 N	04F09125V1N	Request access	1	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 E 1 N	04F09125E1N	Request access	1	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 N 3 N	04F07118N3N	Request access	3	NBR	+14°F +194 °F (-10°C +90°C)	3/4"	45/64(18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 V 3 N	04F07118V3N	Request access	3	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 07 1 18 E 3 N	04F07118E3N	Request access	3	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64(18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 N 3 N	04F09125N3N	Request access	3	NBR	+14°F +194 °F (-10°C +90°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 V 3 N	04F09125V3N	Request access	3	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
04F 09 1 25 E 3 N	04F09125E3N	Request access	3	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	1
