SERVO-ASSISTED SOLENOID VALVES - NPTF

Filter

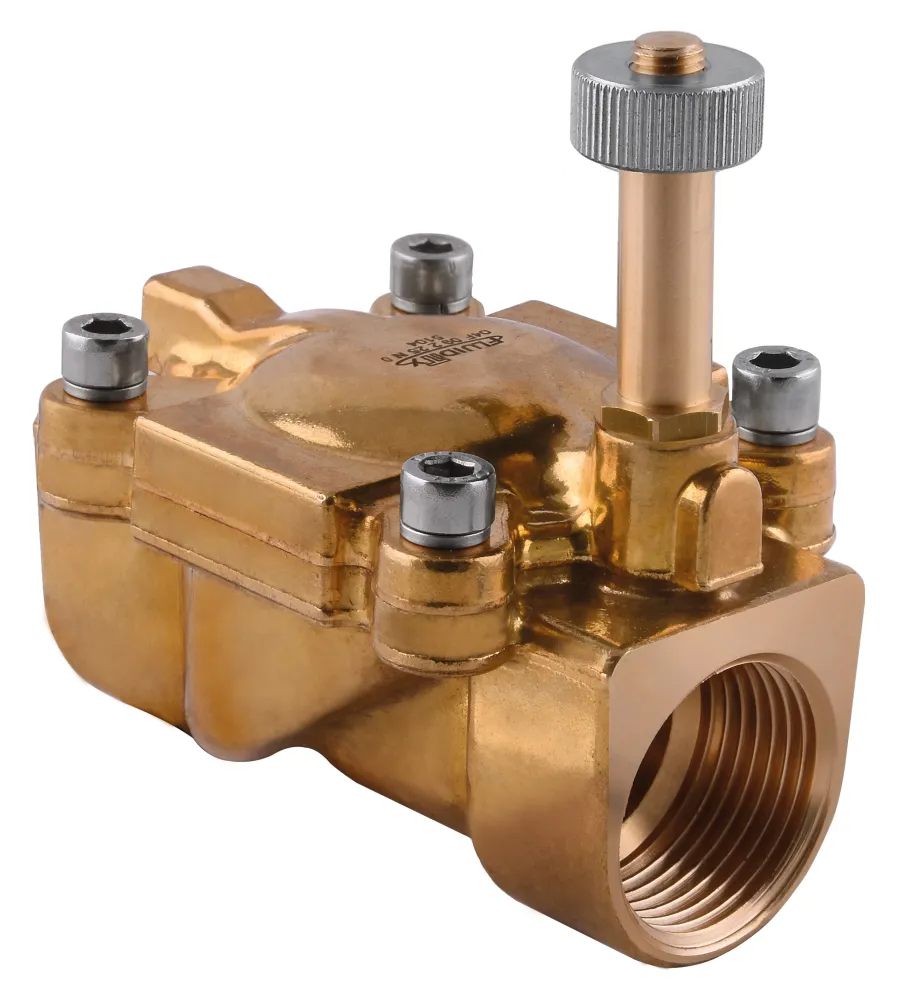

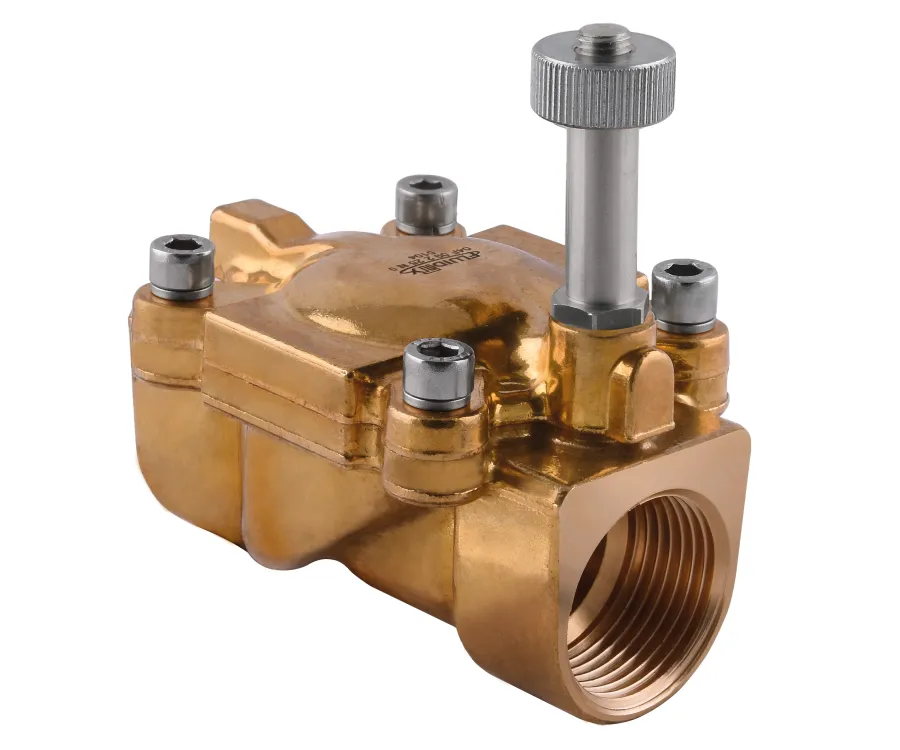

Serie 04F - 2/2 NO - 1/4"-1" - NPTF

SERVO-ASSISTED SOLENOID VALVES - NPTF

0 = Without manual override 2 = Without manual override and with reinforced and guided diaphgram

Code	USA Ref	3D Drawings	Version	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)
04F 03 2 10 N 0 N	04F03210N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 03 2 10 V 0 N	04F03210V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 03 2 10 E 0 N	04F03210E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 04 2 12 N 0 N	04F04212N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 04 2 12 V 0 N	04F04212V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 04 2 12 E 0 N	04F04212E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 05 2 12 N 0 N	04F05212N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 05 2 12 V 0 N	04F05212V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 05 2 12 E 0 N	04F05212E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 07 2 18 N 0 N	04F07218N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 07 2 18 V 0 N	04F07218V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 07 2 18 E 0 N	04F07218E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 09 2 25 N 0 N	04F09225N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	1"	1 (25)	25	12.78 (10.97)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 09 2 25 V 0 N	04F09225V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 09 2 25 E 0 N	04F09225E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 07 2 18 N 2 N	04F07218N2N	Request access	2	NBR	+14°F +194°F (-10°C +90°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 07 2 18 V 2 N	04F07218V2N	Request access	2	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 07 2 18 E 2 N	04F07218E2N	Request access	2	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 09 2 25 N 2 N	04F09225N2N	Request access	2	NBR	+14°F +194°F (-10°C +90°C)	1"	1 (25)	25	10.86 (9.32)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 09 2 25 V 2 N	04F09225V2N	Request access	2	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
04F 09 2 25 E 2 N	04F09225E2N	Request access	2	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)	2 - 145 psi (0.15 - 10 bar)
