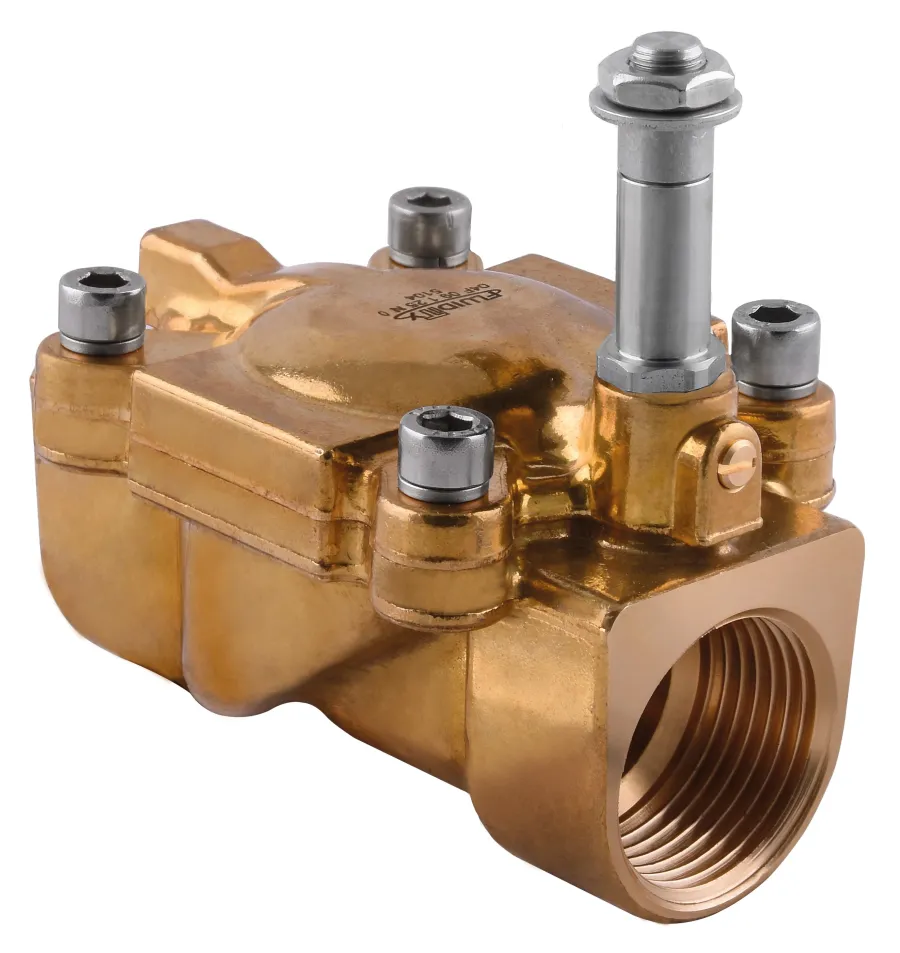

SERVO-ASSISTED SOLENOID VALVES - NPTF

Filter

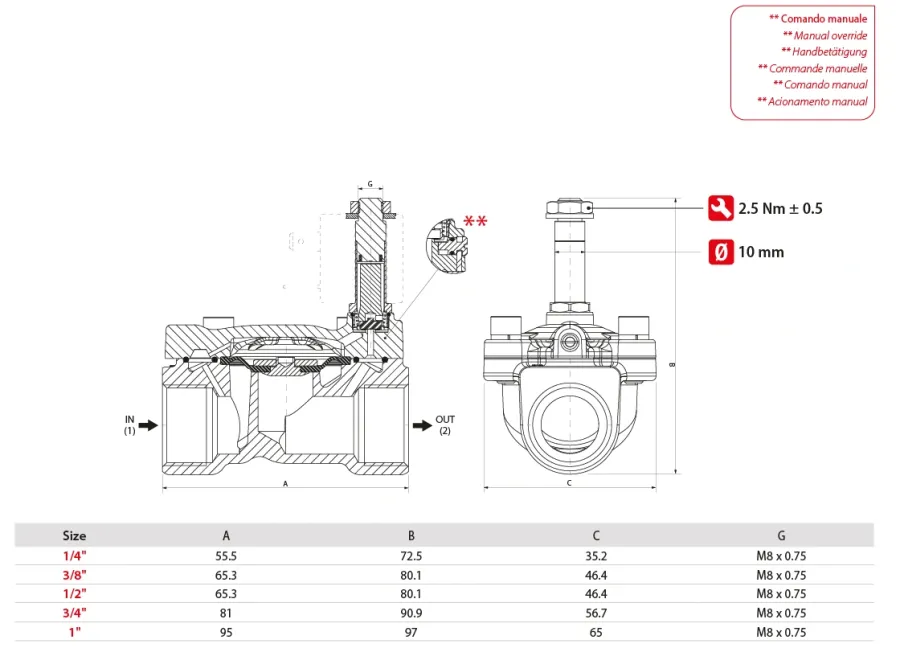

Serie 04F - 2/2 NC - 1/4"-1" - NPTF

SERVO-ASSISTED SOLENOID VALVES - NPTF

H = Without manual override 4 = Without manual override and with reinforced and guided diaphgram 0 = With manual override 2 = With manual override and with reinforced and guided diaphgram

Code	USA Ref	3D Drawings	Version	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (6.5 W)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)
04F 03 1 10 N H N	04F03110NHN	Request access	H	NBR	+14°F +194°F (-10°C +90°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 03 1 10 V H N	04F03110VHN	Request access	H	FKM	+14°F +284°F (-10°C +140°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 03 1 10 E H N	04F03110EHN	Request access	H	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 04 1 12 N H N	04F04112NHN	Request access	H	NBR	+14°F +194°F (-10°C +90°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 04 1 12 V H N	04F04112VHN	Request access	H	FKM	+14°F +284°F (-10°C +140°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 04 1 12 E H N	04F04112EHN	Request access	H	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 05 1 12 N H N	04F05112NHN	Request access	H	NBR	+14°F +194°F (-10°C +90°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 05 1 12 V H N	04F05112VHN	Request access	H	FKM	+14°F +284°F (-10°C +140°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 05 1 12 E H N	04F05112EHN	Request access	H	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 N H N	04F07118NHN	Request access	H	NBR	+14°F +194°F (-10°C +90°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 V H N	04F07118VHN	Request access	H	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 E H N	04F07118EHN	Request access	H	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 N H N	04F09125NHN	Request access	H	NBR	+14°F +194°F (-10°C +90°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 V H N	04F09125VHN	Request access	H	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 E H N	04F09125EHN	Request access	H	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 N 4 N	04F07118N4N	Request access	4	NBR	+14°F +194°F (-10°C +90°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 V 4 N	04F07118V4N	Request access	4	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 E 4 N	04F07118E4N	Request access	4	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 N 4 N	04F09125N4N	Request access	4	NBR	+14°F +194°F (-10°C +90°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 V 4 N	04F09125V4N	Request access	4	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 E 4 N	04F09125E4N	Request access	4	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 03 1 10 N 0 N	04F03110N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 03 1 10 V 0 N	04F03110V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 03 1 10 E 0 N	04F03110E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	25/64 (10)	25	2.19 (1.88)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 04 1 12 N 0 N	04F04112N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 04 1 12 V 0 N	04F04112V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 04 1 12 E 0 N	04F04112E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	15/32 (12)	25	3.38 (2.90)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 05 1 12 N 0 N	04F05112N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 05 1 12 V 0 N	04F05112V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 05 1 12 E 0 N	04F05112E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	15/32 (12)	25	3.53 (3.03)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 N 0 N	04F07118N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 V 0 N	04F07118V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 E 0 N	04F07118E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	6.48 (5.56)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 N 0 N	04F09125N0N	Request access	0	NBR	+14°F +194°F (-10°C +90°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 V 0 N	04F09125V0N	Request access	0	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 E 0 N	04F09125E0N	Request access	0	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	12.78 (10.97)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 N 2 N	04F07118N2N	Request access	2	NBR	+14°F +194°F (-10°C +90°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 V 2 N	04F07118V2N	Request access	2	FKM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 07 1 18 E 2 N	04F07118E2N	Request access	2	EPDM	+14°F +284°F (-10°C +140°C)	3/4"	45/64 (18)	25	5.72 (4.91)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 N 2 N	04F09125N2N	Request access	2	NBR	+14°F +194°F (-10°C +90°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 V 2 N	04F09125V2N	Request access	2	FKM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
04F 09 1 25 E 2 N	04F09125E2N	Request access	2	EPDM	+14°F +284°F (-10°C +140°C)	1"	1 (25)	25	10.86 (9.32)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)	2 - 232 psi (0.15 - 16 bar)	2 - 261 psi (0.15 - 18 bar)
