Serie 04C - 2/2 NC - 1"1/4-2" - NPTF

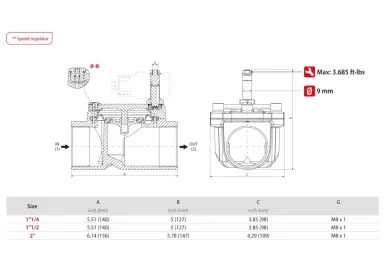

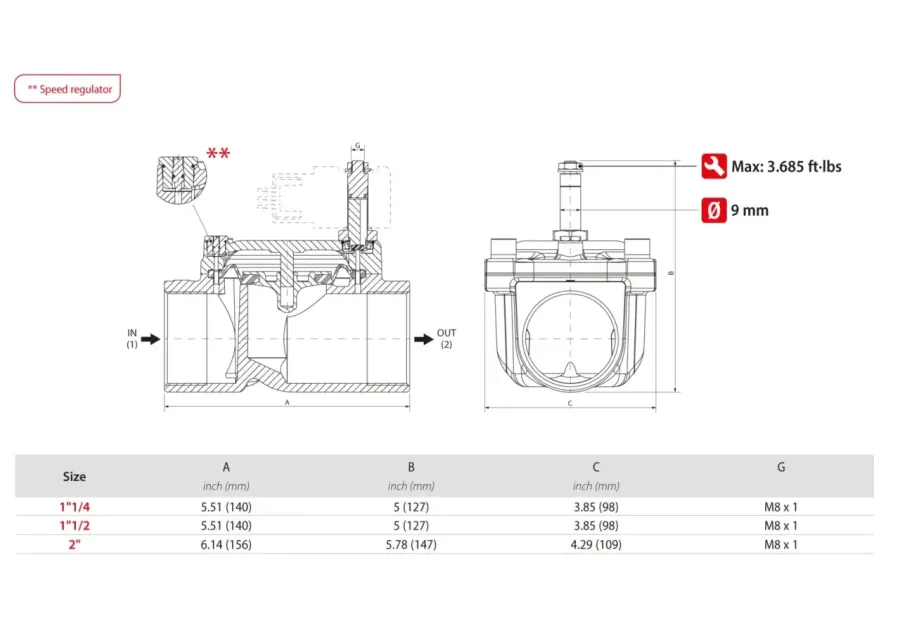

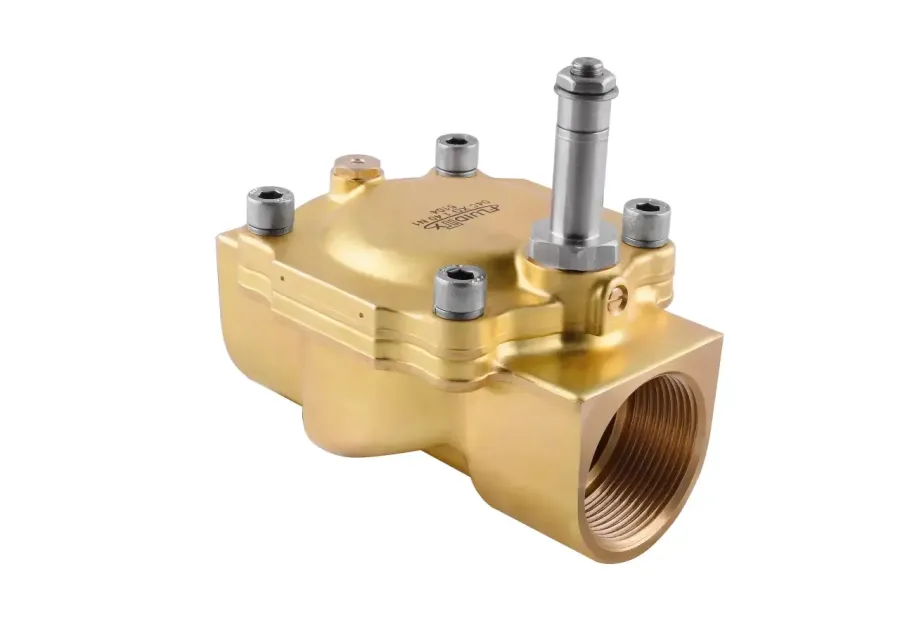

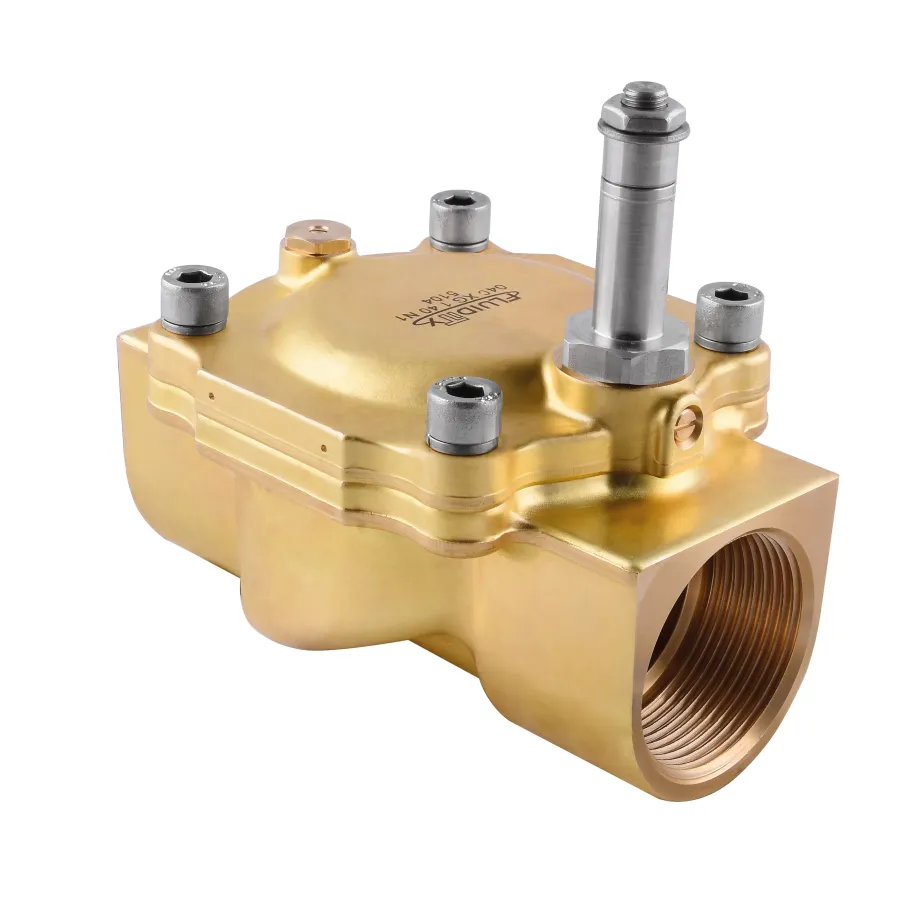

SERVO-ASSISTED SOLENOID VALVES WITH SPEED REGULATOR - NPTF
T = Without manual override
1 = With manual override
| Code | USA Ref | 3D Drawings | Version | Sealing material | Temperature | Port size | Ø Orifice - inch (mm) | Viscosity (cSt) | Cv - gpm (Kv - m3/h) | OPD (ΔP) - DC (4.6 W) | OPD (ΔP) - AC (6.8 VA) | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04C XF 1 40 N T N | 04CXF140NTN | Request access | 0 | NBR | +14°F +194°F (-10°C +90°C) | 1"1/4 | 1" 9/16 (40) | 25 | 27.74 (24) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XF 1 40 V T N | 04CXF140VTN | Request access | 0 | FKM | +14°F +284°F (-10°C +140°C) | 1"1/4 | 1" 9/16 (40) | 25 | 27.74 (24) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XF 1 40 E T N | 04CXF140ETN | Request access | 0 | EPDM | +14°F +284°F (-10°C +140°C) | 1"1/4 | 1" 9/16 (40) | 25 | 27.74 (24) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XG 1 40 N T N | 04CXG140NTN | Request access | 0 | NBR | +14°F +194°F (-10°C +90°C) | 1"1/2 | 1" 9/16 (40) | 25 | 29.2 (25.3) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XG 1 40 V T N | 04CXG140VTN | Request access | 0 | FKM | +14°F +284°F (-10°C +140°C) | 1"1/2 | 1" 9/16 (40) | 25 | 29.2 (25.3) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XG 1 40 E T N | 04CXG140ETN | Request access | 0 | EPDM | +14°F +284°F (-10°C +140°C) | 1"1/2 | 1" 9/16 (40) | 25 | 29.2 (25.3) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XH 1 50 N T N | 04CXH150NTN | Request access | 0 | NBR | +14°F +194°F (-10°C +90°C) | 2" | 1" 61/64 (50) | 25 | 47.39 (41) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XH 1 50 V T N | 04CXH150VTN | Request access | 0 | FKM | +14°F +284°F (-10°C +140°C) | 2" | 1" 61/64 (50) | 25 | 47.39 (41) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 | |
| 04C XH 1 50 E T N | 04CXH150ETN | Request access | 0 | EPDM | +14°F +284°F (-10°C +140°C) | 2" | 1" 61/64 (50) | 25 | 47.39 (41) | 2.9 - 145 psi (0.20 - 10 bar) | 2.9 - 145 psi (0.20 - 10 bar) | 1 |
