Serie 04C - 2/2 NC - 1/4"-1" - NPTF

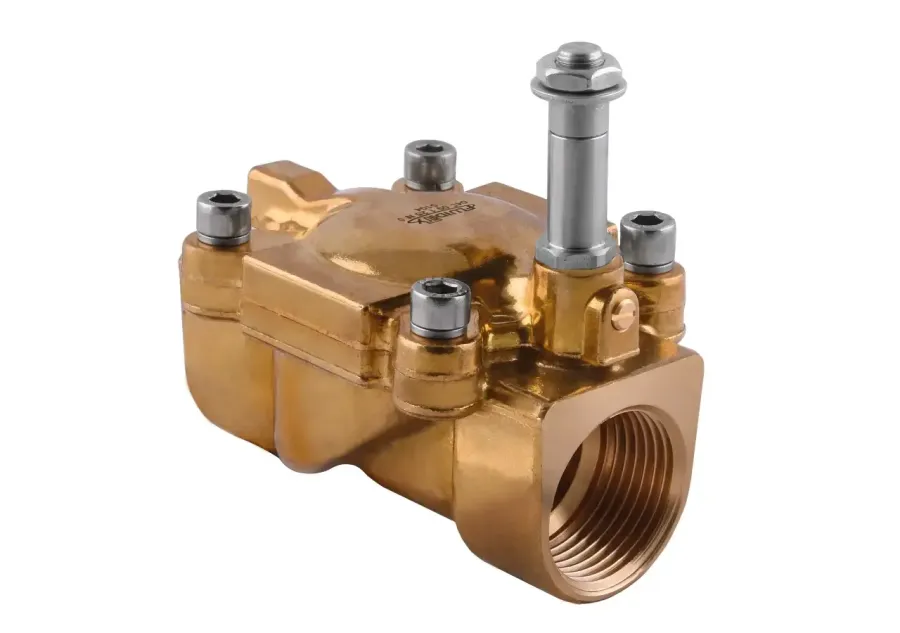

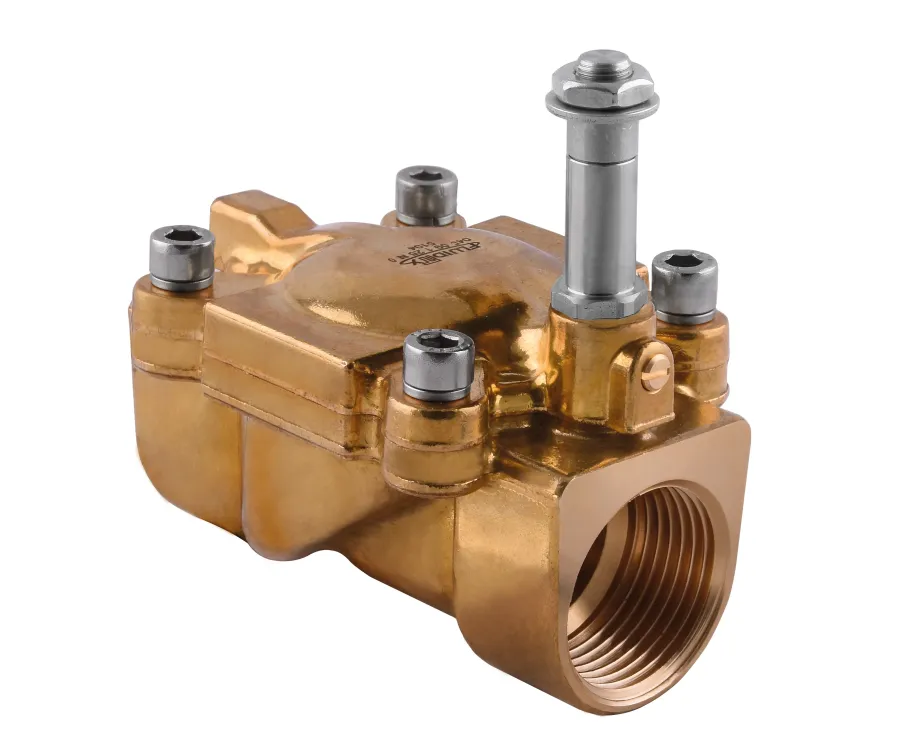

SERVO-ASSISTED SOLENOID VALVES - NPTF
H = Without manual override
4 = Without manual override and with reinforced and guided diaphgram
0 = With manual override
2 = With manual override and with reinforced and guided diaphgram
| Code | USA Ref | 3D Drawings | Version | Sealing material | Temperature | Port size - NPTF | Ø Orifice - inch (mm) | Viscosity (cSt) | Cv - gpm (Kv - m3/h) | OPD (ΔP) - DC (4.6 W) | OPD (ΔP) - AC (6.8 VA) | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04C 03 1 10 N H N | 04C03110NHN | Request access | H | NBR | +14°F +194°F (-10°C +90°C) | 1/4" | 25/64 (10) | 25 | 2.19 (1.88) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 03 1 10 V H N | 04C03110VHN | Request access | H | FKM | +14°F +284°F (-10°C +140°C) | 1/4" | 25/64 (10) | 25 | 2.19 (1.88) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 03 1 10 E H N | 04C03110EHN | Request access | H | EPDM | +14°F +284°F (-10°C +140°C) | 1/4" | 25/64 (10) | 25 | 2.19 (1.88) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 04 1 14 N H N | 04C04114NHN | Request access | H | NBR | +14°F +194°F (-10°C +90°C) | 3/8" | 35/64 (14) | 25 | 3.87 (3.32) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 04 1 14 V H N | 04C04114VHN | Request access | H | FKM | +14°F +284°F (-10°C +140°C) | 3/8" | 35/64 (14) | 25 | 3.87 (3.32) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 04 1 14 E H N | 04C04114EHN | Request access | H | EPDM | +14°F +284°F (-10°C +140°C) | 3/8" | 35/64 (14) | 25 | 3.87 (3.32) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 05 1 14 N H N | 04C05114NHN | Request access | H | NBR | +14°F +194°F (-10°C +90°C) | 1/2" | 35/64 (14) | 25 | 4.11 (3.53) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 05 1 14 V H N | 04C05114VHN | Request access | H | FKM | +14°F +284°F (-10°C +140°C) | 1/2" | 35/64 (14) | 25 | 4.11 (3.53) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 05 1 14 E H N | 04C05114EHN | Request access | H | EPDM | +14°F +284°F (-10°C +140°C) | 1/2" | 35/64 (14) | 25 | 4.11 (3.53) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 07 1 18 N H N | 04C07118NHN | Request access | H | NBR | +14°F +194°F (-10°C +90°C) | 3/4" | 45/64 (18) | 25 | 6.48 (5.56) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 07 1 18 V H N | 04C07118VHN | Request access | H | FKM | +14°F +284°F (-10°C +140°C) | 3/4" | 45/64 (18) | 25 | 6.48 (5.56) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 07 1 18 E H N | 04C07118EHN | Request access | H | EPDM | +14°F +284°F (-10°C +140°C) | 3/4" | 45/64 (18) | 25 | 6.48 (5.56) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 09 1 25 N H N | 04C09125NHN | Request access | H | NBR | +14°F +194°F (-10°C +90°C) | 1" | 1 (25) | 25 | 12.78 (10.97) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 09 1 25 V H N | 04C09125VHN | Request access | H | FKM | +14°F +284°F (-10°C +140°C) | 1" | 1 (25) | 25 | 12.78 (10.97) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 | |
| 04C 09 1 25 E H N | 04C09125EHN | Request access | H | EPDM | +14°F +284°F (-10°C +140°C) | 1" | 1 (25) | 25 | 12.78 (10.97) | 2 - 232 psi (0.15 - 16 bar) | 2 - 232 psi (0.15 - 16 bar) | 1 |
