Serie 03F - 2/2 NC - NPTF

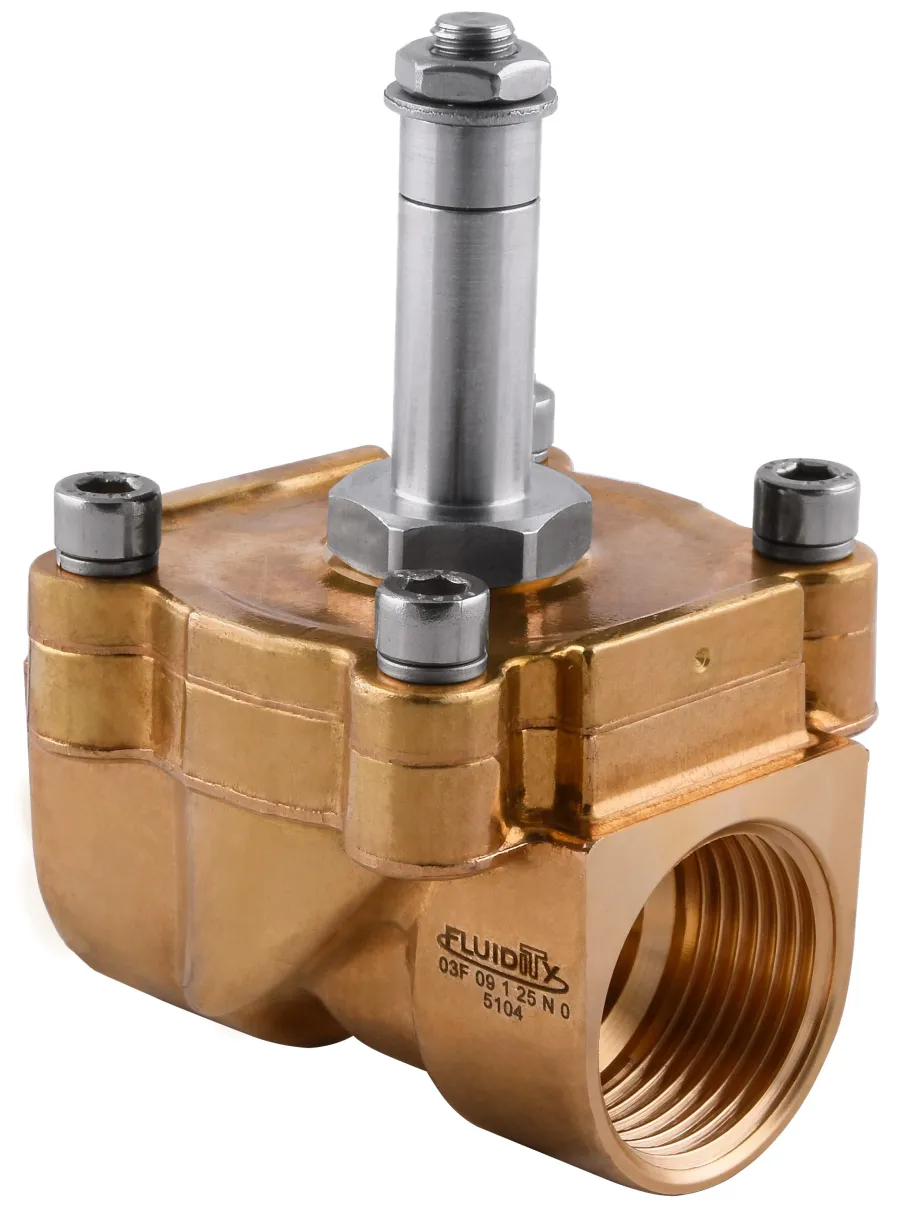

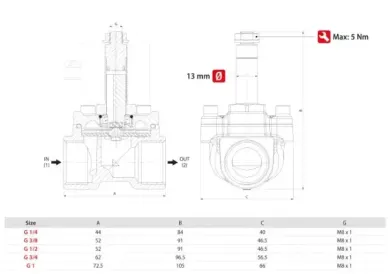

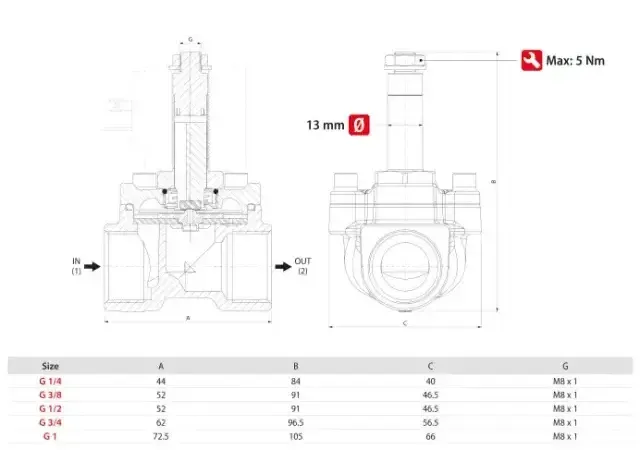

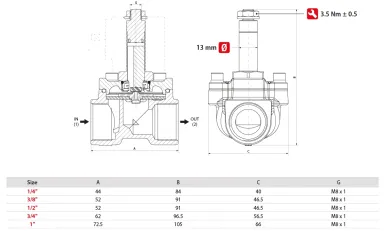

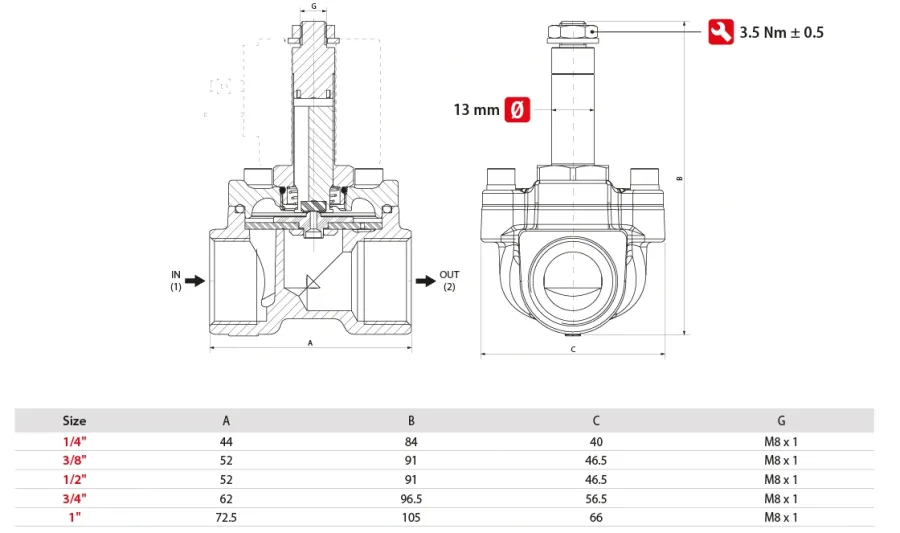

SERVO-ASSISTED SOLENOID VALVES - NPTF
* Complete diaphragm opening ∆P > 0 psi
| Code | USA Ref | 3D Drawings | Sealing material | Temperature | Port size - NPTF | Ø Orifice - inch (mm) | Viscosity (cSt) | Cv - gpm (Kv - m3/h) | OPD (ΔP) - DC (14 W) | OPD (ΔP) - DC (22 W) | OPD (ΔP) - AC (14 VA) | OPD (ΔP) - AC (21 VA) | OPD (ΔP) - AC (31 VA) | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03F 03 1 10 N 0 N | 03F03110N0N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1/4" | 25/64 (10) | 25 | 1.84 (1.58) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 03 1 10 V 0 N | 03F03110V0N | Request access | FKM | +14°F +284°F (-10°C+140°C) | 1/4" | 25/64 (10) | 25 | 1.84 (1.58) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 03 1 10 E 0 N | 03F03110E0N | Request access | EPDM | +14°F +284°F (-10°C+140°C) | 1/4" | 25/64 (10) | 25 | 1.84 (1.58) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 04 1 12 N 0 N | 03F04112N0N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 3/8" | 15/32 (12) | 25 | 2.73 (2.34) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 04 1 12 V 0 N | 03F04112V0N | Request access | FKM | +14°F +284°F (-10°C+140°C) | 3/8" | 15/32 (12) | 25 | 2.73 (2.34) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 04 1 12 E 0 N | 03F04112E0N | Request access | EPDM | +14°F +284°F (-10°C+140°C) | 3/8" | 15/32 (12) | 25 | 2.73 (2.34) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 05 1 12 N 0 N | 03F05112N0N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1/2" | 15/32 (12) | 25 | 2.75 (2.36) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 05 1 12 V 0 N | 03F05112V0N | Request access | FKM | +14°F +284°F (-10°C+140°C) | 1/2" | 15/32 (12) | 25 | 2.75 (2.36) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 05 1 12 E 0 N | 03F05112E0N | Request access | EPDM | +14°F +284°F (-10°C+140°C) | 1/2" | 15/32 (12) | 25 | 2.75 (2.36) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 07 1 18 N 0 N | 03F07118N0N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 3/4" | 45/64 (18) | 25 | 4.75 (4.08) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 07 1 18 V 0 N | 03F07118V0N | Request access | FKM | +14°F +284°F (-10°C+140°C) | 3/4" | 45/64 (18) | 25 | 4.75 (4.08) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 07 1 18 E 0 N | 03F07118E0N | Request access | EPDM | +14°F +284°F (-10°C+140°C) | 3/4" | 45/64 (18) | 25 | 4.75 (4.08) | 0 - 87 psi (0 - 6 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 261 psi (0 - 18 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 09 1 25 N 0 N | 03F09125N0N | Request access | NBR | +14°F +194°F (-10°C +90°C) | 1" | 1 (25) | 25 | 7.72 (6.63) | 0 - 58 psi (0 - 4 bar) | 0 - 174 psi (0 - 12 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 09 1 25 V 0 N | 03F09125V0N | Request access | FKM | +14°F +284°F (-10°C+140°C) | 1" | 1 (25) | 25 | 7.72 (6.63) | 0 - 58 psi (0 - 4 bar) | 0 - 174 psi (0 - 12 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 | |
| 03F 09 1 25 E 0 N | 03F09125E0N | Request access | EPDM | +14°F +284°F (-10°C+140°C) | 1" | 1 (25) | 25 | 7.72 (6.63) | 0 - 58 psi (0 - 4 bar) | 0 - 174 psi (0 - 12 bar) | 0 - 232 psi (0 - 16 bar) | 0 - 290 psi (0 - 20 bar) | 0 - 363 psi (0 - 25 bar) | 1 |
