DIRECT ACTING SOLENOID VALVES - NPTF

Filter

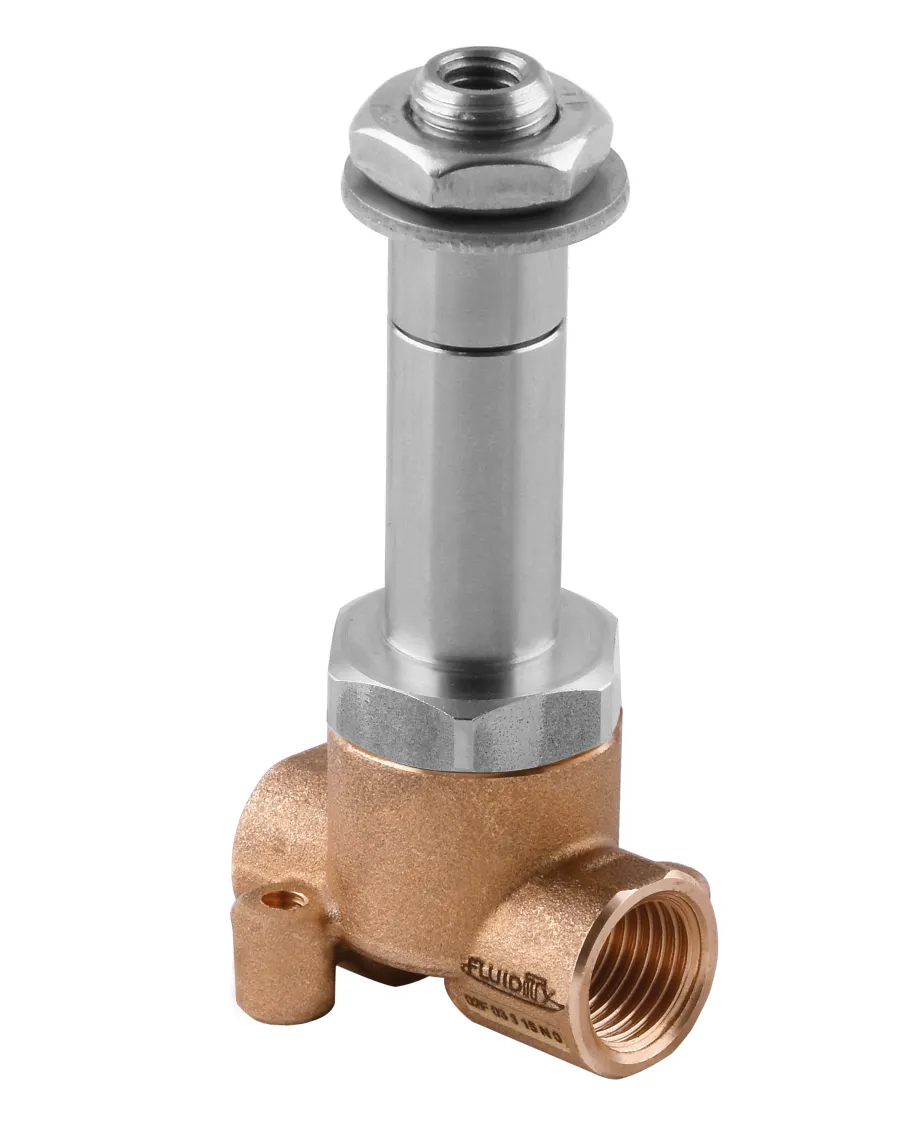

Serie 02F - 3/2 NO - 1/4" - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice IN/EXH - inch (mm)	Viscosity (cSt)	Cv IN/EXH - gpm (Kv IN/EXH - m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - DC (14 W)	OPD (ΔP) - DC (22 W)	OPD (ΔP) - AC (14 VA)	OPD (ΔP) - AC (21 VA)	OPD (ΔP) - AC (31 VA)	Package
02F 03 4 25 V 0 N	02F03425V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 3/32 (1.9 - 2.5)	37	0.12 - 0.17 (0.10 - 0.15)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 25 N 0 N	02F03425N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 3/32 (1.9 - 2.5)	37	0.12 - 0.17 (0.10 - 0.15)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 25 E 0 N	02F03425E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 3/32 (1.9 - 2.5)	37	0.12 - 0.17 (0.10 - 0.15)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 25 C 0 N	02F03425C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 3/32 (1.9 - 2.5)	37	0.12 - 0.17 (0.10 - 0.15)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 15 V 0 N	02F03415V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 1/16 (1.9 - 1.5)	25	0.12 - 0.07 (0.10 - 0.06)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 15 N 0 N	02F03415N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 1/16 (1.9 - 1.5)	25	0.12 - 0.07 (0.10 - 0.06)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 15 E 0 N	02F03415E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 1/16 (1.9 - 1.5)	25	0.12 - 0.07 (0.10 - 0.06)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 15 C 0 N	02F03415C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 1/16 (1.9 - 1.5)	25	0.12 - 0.07 (0.10 - 0.06)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 05 V 0 N	02F03405V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 13/64 (1.9 - 5)	37	0.12 - 0.59 (0.10 - 0.51)	0 - 29 psi (0 - 2 bar)	0 - 44 psi (0 - 3 bar)	0 - 116 psi (0 - 8 bar)	0 - 87 psi (0 - 6 bar)	0 - 138 psi (0 - 9.5 bar)	0 - 174 psi (0 - 12 bar)	1
02F 03 4 05 N 0 N	02F03405N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 13/64 (1.9 - 5)	37	0.12 - 0.59 (0.10 - 0.51)	0 - 29 psi (0 - 2 bar)	0 - 44 psi (0 - 3 bar)	0 - 116 psi (0 - 8 bar)	0 - 87 psi (0 - 6 bar)	0 - 138 psi (0 - 9.5 bar)	0 - 174 psi (0 - 12 bar)	1
02F 03 4 05 E 0 N	02F03405E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 13/64 (1.9 - 5)	37	0.12 - 0.59 (0.10 - 0.51)	0 - 29 psi (0 - 2 bar)	0 - 44 psi (0 - 3 bar)	0 - 116 psi (0 - 8 bar)	0 - 87 psi (0 - 6 bar)	0 - 138 psi (0 - 9.5 bar)	0 - 174 psi (0 - 12 bar)	1
02F 03 4 05 C 0 N	02F03405C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 13/64 (1.9 - 5)	37	0.12 - 0.59 (0.10 - 0.51)	0 - 29 psi (0 - 2 bar)	0 - 44 psi (0 - 3 bar)	0 - 116 psi (0 - 8 bar)	0 - 87 psi (0 - 6 bar)	0 - 138 psi (0 - 9.5 bar)	0 - 174 psi (0 - 12 bar)	1
02F 03 4 04 V 0 N	02F03404V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 5/32 (1.9 - 4)	37	0.12 - 0.41 (0.10 - 0.35)	0 - 58 psi (0 - 4 bar)	0 - 102 psi (0 - 7 bar)	0 - 189 psi (0 - 13 bar)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 04 N 0 N	02F03404N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 5/32 (1.9 - 4)	37	0.12 - 0.41 (0.10 - 0.35)	0 - 58 psi (0 - 4 bar)	0 - 102 psi (0 - 7 bar)	0 - 189 psi (0 - 13 bar)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 04 E 0 N	02F03404E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 5/32 (1.9 - 4)	37	0.12 - 0.41 (0.10 - 0.35)	0 - 58 psi (0 - 4 bar)	0 - 102 psi (0 - 7 bar)	0 - 189 psi (0 - 13 bar)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 04 C 0 N	02F03404C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 5/32 (1.9 - 4)	37	0.12 - 0.41 (0.10 - 0.35)	0 - 58 psi (0 - 4 bar)	0 - 102 psi (0 - 7 bar)	0 - 189 psi (0 - 13 bar)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 03 V 0 N	02F03403V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 1/8 (1.9 - 3)	37	0.12 - 0.24 (0.10 - 0.21)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 03 N 0 N	02F03403N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 1/8 (1.9 - 3)	37	0.12 - 0.24 (0.10 - 0.21)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 03 E 0 N	02F03403E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 1/8 (1.9 - 3)	37	0.12 - 0.24 (0.10 - 0.21)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 03 C 0 N	02F03403C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 1/8 (1.9 - 3)	37	0.12 - 0.24 (0.10 - 0.21)	0 - 145 psi (0 - 10 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 02 V 0 N	02F03402V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 5/64 (1.9 - 2)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 02 N 0 N	02F03402N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 5/64 (1.9 - 2)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 02 E 0 N	02F03402E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 5/64 (1.9 - 2)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
02F 03 4 02 C 0 N	02F03402C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 - 5/64 (1.9 - 2)	37	0.12 - 0.12 (0.10 - 0.10)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	0 - 218 psi (0 - 15 bar)	1
