DIRECT ACTING SOLENOID VALVES - NPTF

Filter

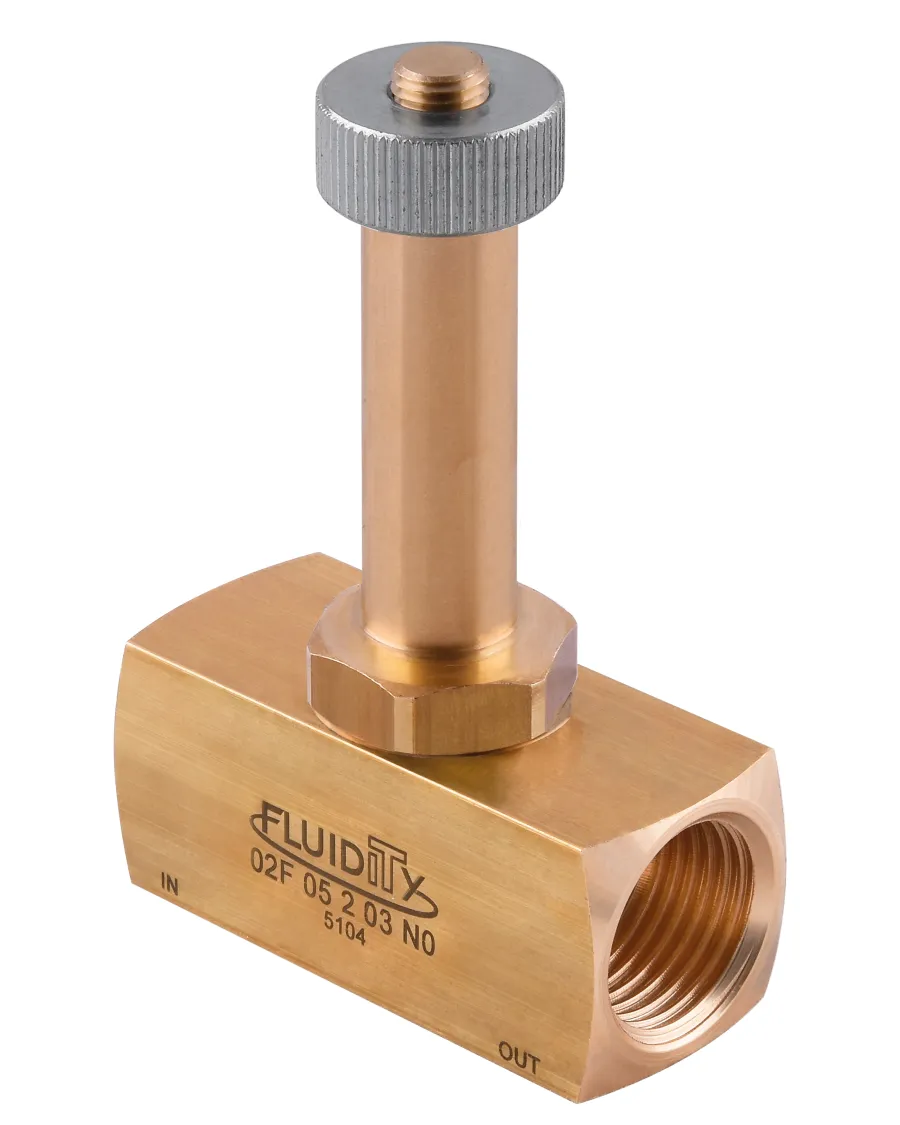

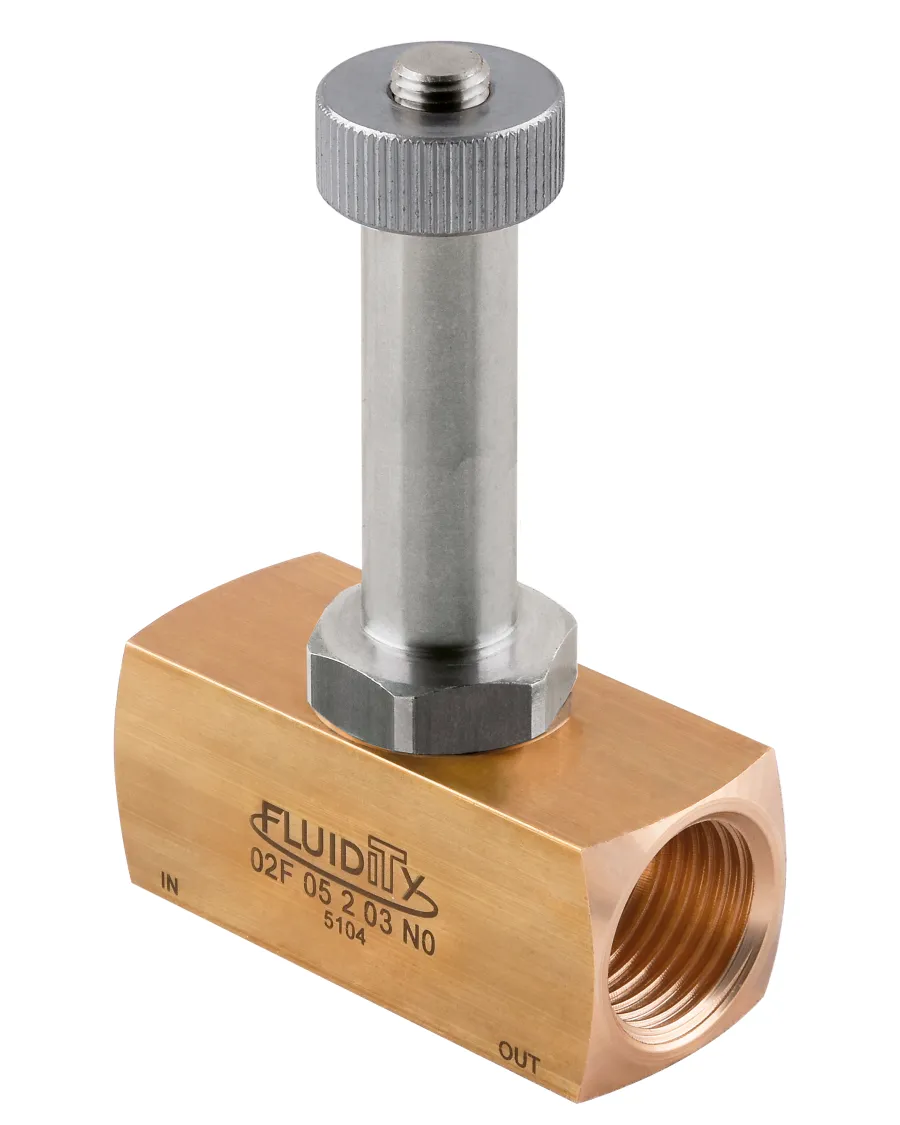

Serie 02F - 2/2 NO - 3/8"-1/2" - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (14 W)	OPD (ΔP) - DC (22 W)	OPD (ΔP) - AC (14 VA)	OPD (ΔP) - AC (21 VA)	OPD (ΔP) - AC (31 VA)	Package
02F 05 2 05 V 0 N	02F05205V0N	Request access	FKM	+14°F +284 °F (-10°C +140°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 05 2 05 N 0 N	02F05205N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 05 2 05 E 0 N	02F05205E0N	Request access	EPDM	+14°F +284 °F (-10°C +140°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 05 2 05 C 0 N	02F05205C0N	Request access	CR	-31°F +212 °F (-35°C +100°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 05 2 04 V 0 N	02F05204V0N	Request access	FKM	+14°F +284 °F (-10°C +140°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 05 2 04 N 0 N	02F05204N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 05 2 04 E 0 N	02F05204E0N	Request access	EPDM	+14°F +284 °F (-10°C +140°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 05 2 04 C 0 N	02F05204C0N	Request access	CR	-31°F +212 °F (-35°C +100°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 05 2 03 V 0 N	02F05203V0N	Request access	FKM	+14°F +284 °F (-10°C +140°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 05 2 03 N 0 N	02F05203N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 05 2 03 E 0 N	02F05203E0N	Request access	EPDM	+14°F +284 °F (-10°C +140°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 05 2 03 C 0 N	02F05203C0N	Request access	CR	-31°F +212 °F (-35°C +100°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 04 2 05 V 0 N	02F04205V0N	Request access	FKM	+14°F +284 °F (-10°C +140°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 04 2 05 N 0 N	02F04205N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 04 2 05 E 0 N	02F04205E0N	Request access	EPDM	+14°F +284 °F (-10°C +140°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 04 2 05 C 0 N	02F04205C0N	Request access	CR	-31°F +212 °F (-35°C +100°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 36 psi (0 - 2.5 bar)	1
02F 04 2 04 V 0 N	02F04204V0N	Request access	FKM	+14°F +284 °F (-10°C +140°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 04 2 04 N 0 N	02F04204N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 04 2 04 E 0 N	02F04204E0N	Request access	EPDM	+14°F +284 °F (-10°C +140°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 04 2 04 C 0 N	02F04204C0N	Request access	CR	-31°F +212 °F (-35°C +100°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 65 psi (0 - 4.5 bar)	1
02F 04 2 03 V 0 N	02F04203V0N	Request access	FKM	+14°F +284 °F (-10°C +140°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 04 2 03 N 0 N	02F04203N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 04 2 03 E 0 N	02F04203E0N	Request access	EPDM	+14°F +284 °F (-10°C +140°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
02F 04 2 03 C 0 N	02F04203C0N	Request access	CR	-31°F +212 °F (-35°C +100°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	0 - 109 psi (0 - 7.5 bar)	1
