DIRECT ACTING SOLENOID VALVES - NPTF

Filter

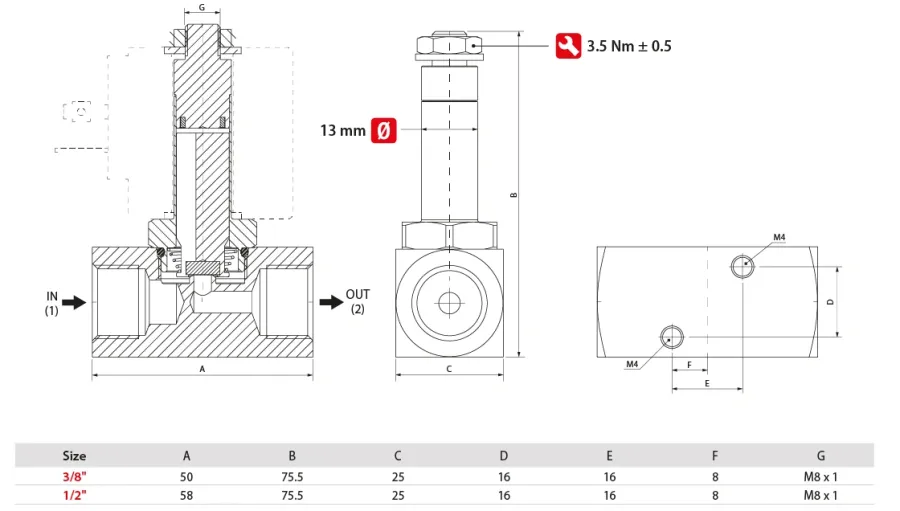

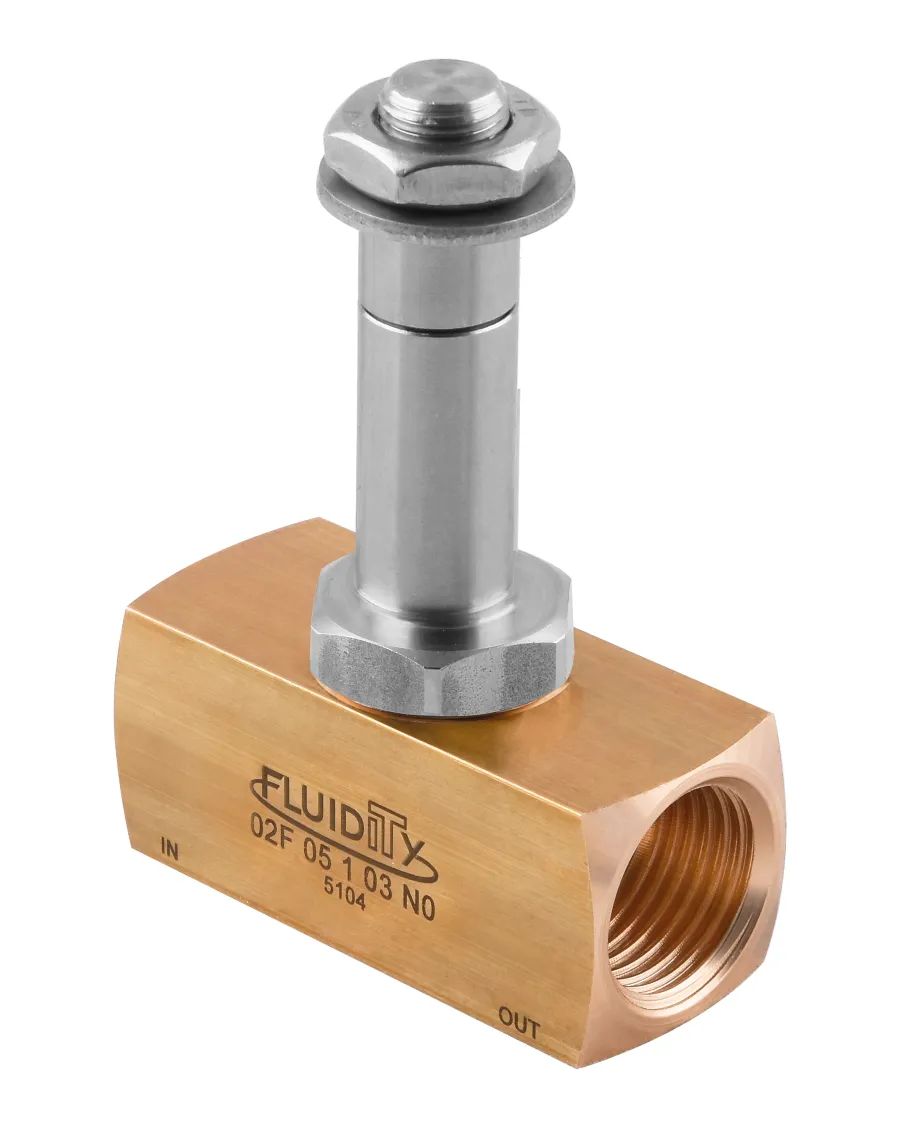

Serie 02F - 2/2 NC - 3/8"-1/2" - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - DC (14 W)	OPD (ΔP) - DC (22 W)	OPD (ΔP) - AC (14 VA)	OPD (ΔP) - AC (21 VA)	OPD (ΔP) - AC (31 VA)	Package
02F 05 1 64 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/2"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 05 1 64 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 05 1 64 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 05 1 64 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/2"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 05 1 05 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 05 1 05 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 05 1 05 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 05 1 05 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/2"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 05 1 04 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 217 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 05 1 04 P 3 N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 217 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 05 1 04 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 217 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 05 1 04 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 217 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 05 1 04 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/2"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 217 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 05 1 03 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 05 1 03 P 3 N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 05 1 03 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 05 1 03 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 05 1 03 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/2"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 04 1 64 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	3/8"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 04 1 64 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 04 1 64 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 04 1 64 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	3/8"	1/4 (6.4)	53	0.76 (0.65)	-	0 - 22 psi (0 - 1.5 bar)	0 - 65 psi (0 - 4.5 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 73 psi (0 - 5 bar)	1
02F 04 1 05 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 04 1 05 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 04 1 05 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 04 1 05 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	3/8"	13/64 (5)	53	0.59 (0.51)	0 - 20 psi (0 - 1.4 bar)	0 - 32 psi (0 - 2.2 bar)	0 - 80 psi (0 - 5.5 bar)	0 - 73 psi (0 - 5 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	1
02F 04 1 04 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 04 1 04 P 3 N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 04 1 04 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 04 1 04 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 04 1 04 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	3/8"	5/32 (4)	53	0.41 (0.35)	0 - 44 psi (0 - 3 bar)	0 - 87 psi (0 - 6 bar)	0 - 218 psi (0 - 15 bar)	0 - 145 psi (0 - 10 bar)	0 - 203 psi (0 - 14 bar)	0 - 290 psi (0 - 20 bar)	1
02F 04 1 03 V 0 N	Request access	FKM	+14°F +284°F (-10°C +140°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 04 1 03 P 3 N	Request access	PTFE	-40°F +356°F (-40°C +180°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 04 1 03 N 0 N	Request access	NBR	+14°F +194°F (-10°C +90°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 04 1 03 E 0 N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
02F 04 1 03 C 0 N	Request access	CR	-31°F +212°F (-35°C +100°C)	3/8"	1/8 (3)	53	0.24 (0.21)	0 - 145 psi (0 - 10 bar)	0 - 362 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	0 - 305 psi (0 - 21 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
