DIRECT ACTING SOLENOID VALVES - NPTF

Filter

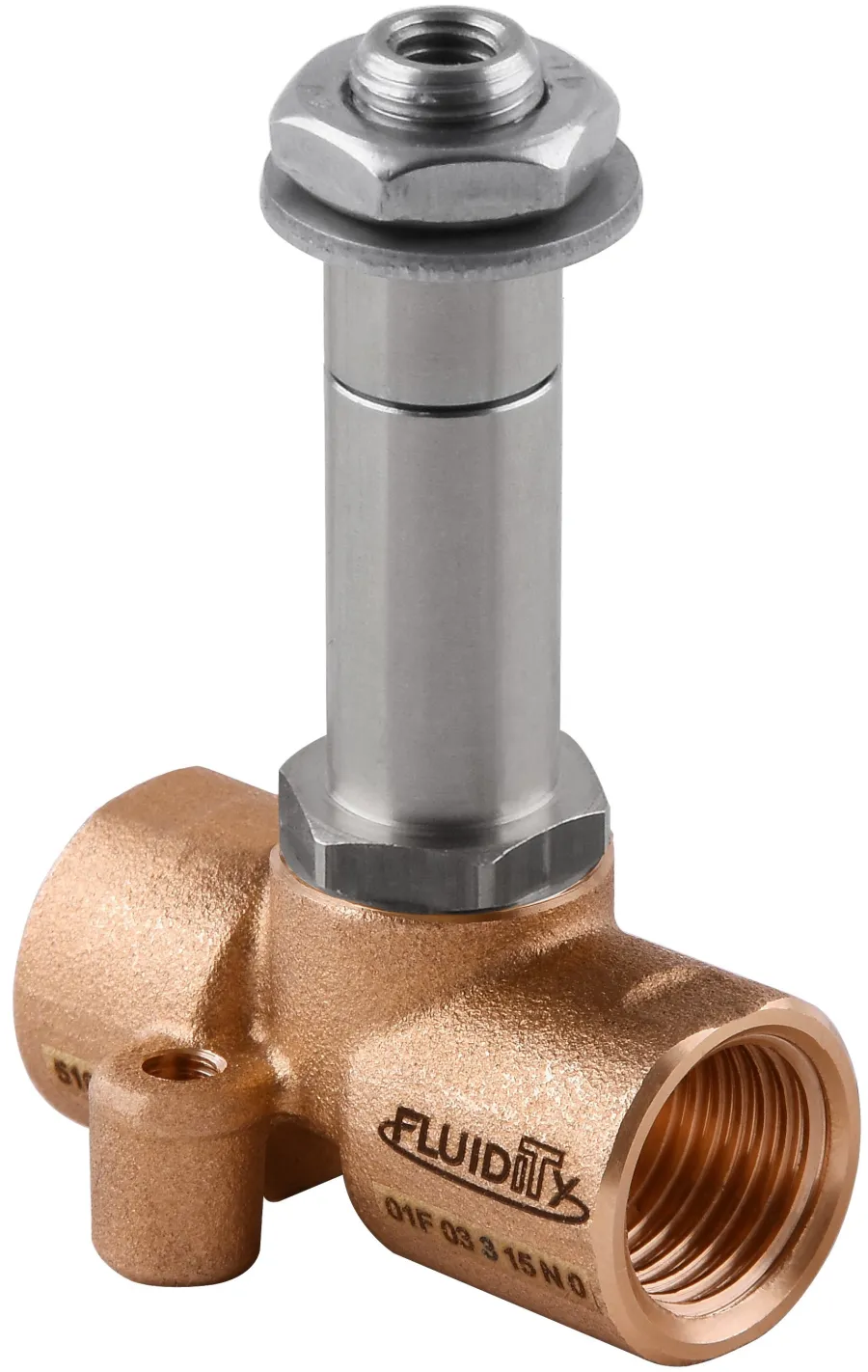

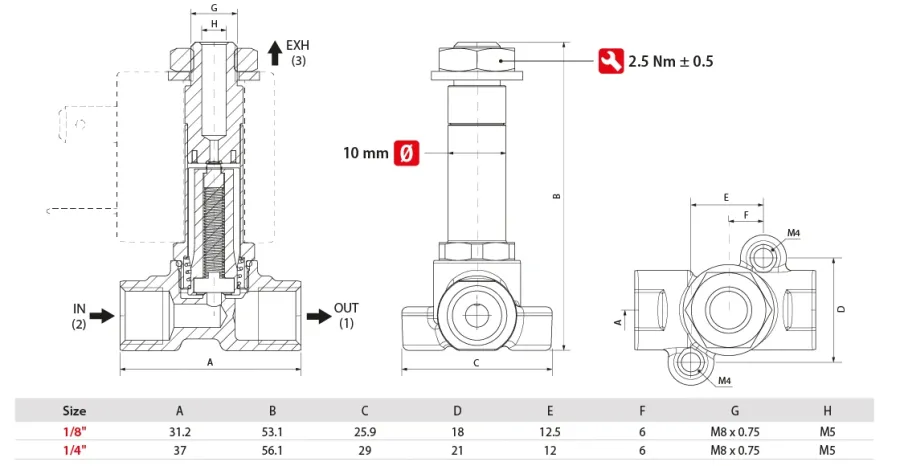

Serie 01F - 3/2 NC - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice IN/EXH - inch (mm)	Viscosity (cSt)	Cv IN/EXH - gpm (Kv IN/EXH - m3/h)	OPD (ΔP) - DC (6.5 W)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)
01F 02 3 15 N 0 N	01F02315N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 - 1/16 (1.5 - 1.4)	25	0.07 / 0.06 (0.06 / 0.05)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)
01F 02 3 15 V 0 N	01F02315V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 1/16 (1.5 - 1.4)	25	0.07 / 0.06 (0.06 / 0.05)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)
01F 02 3 15 E 0 N	01F02315E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 - 1/16 (1.5 - 1.4)	25	0.07 / 0.06 (0.06 / 0.05)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)
01F 02 3 02 N 0 N	01F02302N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	5/64 - 1/16 (2 - 1.4)	25	0.10 / 0.06 (0.09 / 0.05)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)
01F 02 3 02 V 0 N	01F02302V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 - 1/16 (2 - 1.4)	25	0.10 / 0.06 (0.09 / 0.05)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)
01F 02 3 02 E 0 N	01F02302E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 - 1/16 (2 - 1.4)	25	0.10 / 0.06 (0.09 / 0.05)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)
01F 02 3 25 N 0 N	01F02325N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	3/32 - 1/16 (2.5 - 1.4)	25	0.17 / 0.06 (0.15 / 0.05)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)
01F 02 3 25 V 0 N	01F02325V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 - 1/16 (2.5 - 1.4)	25	0.17 / 0.06 (0.15 / 0.05)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)
01F 02 3 25 E 0 N	01F02325E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 - 1/16 (2.5 - 1.4)	25	0.17 / 0.06 (0.15 / 0.05)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)
01F 02 3 03 N 0 N	01F02303N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/8 - 1/16 (3 - 1.4)	25	0.23 / 0.06 (0.20 / 0.05)	-	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)
01F 02 3 03 V 0 N	01F02303V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 - 1/16 (3 - 1.4)	25	0.23 / 0.06 (0.20 / 0.05)	-	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)
01F 02 3 03 E 0 N	01F02303E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 - 1/16 (3 - 1.4)	25	0.23 / 0.06 (0.20 / 0.05)	-	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)
01F 02 3 04 N 0 N	01F02304N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	5/32 - 1/16 (4 - 1.4)	25	0.35 / 0.06 (0.30 / 0.05)	-	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)
01F 02 3 04 V 0 N	01F02304V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	5/32 - 1/16 (4 - 1.4)	25	0.35 / 0.06 (0.30 / 0.05)	-	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)
01F 02 3 04 E 0 N	01F02304E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	5/32 - 1/16 (4 - 1.4)	25	0.35 / 0.06 (0.30 / 0.05)	-	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)
01F 03 3 15 N 0 N	01F03315N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 - 1/16 (1.5 - 1.4)	25	0.07 / 0.06 (0.06 / 0.05)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)
01F 03 3 15 V 0 N	01F03315V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 1/16 (1.5 - 1.4)	25	0.07 / 0.06 (0.06 / 0.05)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)
01F 03 3 15 E 0 N	01F03315E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 - 1/16 (1.5 - 1.4)	25	0.07 / 0.06 (0.06 / 0.05)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)	0 - 196 psi (0 - 13.5 bar)
01F 03 3 02 N 0 N	01F03302N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 - 1/16 (2 - 1.4)	25	0.10 / 0.06 (0.09 / 0.05)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)
01F 03 3 02 V 0 N	01F03302V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 1/16 (2 - 1.4)	25	0.10 / 0.06 (0.09 / 0.05)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)
01F 03 3 02 E 0 N	01F03302E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 - 1/16 (2 - 1.4)	25	0.10 / 0.06 (0.09 / 0.05)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)	0 - 116 psi (0 - 8 bar)
01F 03 3 25 N 0 N	01F03325N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 - 1/16 (2.5 - 1.4)	25	0.17 / 0.06 (0.15 / 0.05)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)
01F 03 3 25 V 0 N	01F03325V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 - 1/16 (2.5 - 1.4)	25	0.17 / 0.06 (0.15 / 0.05)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)
01F 03 3 25 E 0 N	01F03325E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 - 1/16 (2.5 - 1.4)	25	0.17 / 0.06 (0.15 / 0.05)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)	0 - 73 psi (0 - 5 bar)
01F 03 3 03 N 0 N	01F03303N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/8 - 1/16 (3 - 1.4)	25	0.23 / 0.06 (0.20 / 0.05)	-	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)
01F 03 3 03 V 0 N	01F03303V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 - 1/16 (3 - 1.4)	25	0.23 / 0.06 (0.20 / 0.05)	-	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)
01F 03 3 03 E 0 N	01F03303E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 - 1/16 (3 - 1.4)	25	0.23 / 0.06 (0.20 / 0.05)	-	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)	0 - 51 psi (0 - 3.5 bar)
01F 03 3 04 N 0 N	01F03304N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/32 - 1/16 (4 - 1.4)	25	0.35 / 0.06 (0.30 / 0.05)	-	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)
01F 03 3 04 V 0 N	01F03304V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 - 1/16 (4 - 1.4)	25	0.35 / 0.06 (0.30 / 0.05)	-	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)
01F 03 3 04 E 0 N	01F03304E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 - 1/16 (4 - 1.4)	25	0.35 / 0.06 (0.30 / 0.05)	-	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)	0 - 15 psi (0 - 1 bar)
