DIRECT ACTING SOLENOID VALVES - NPTF - LATCHING

Filter

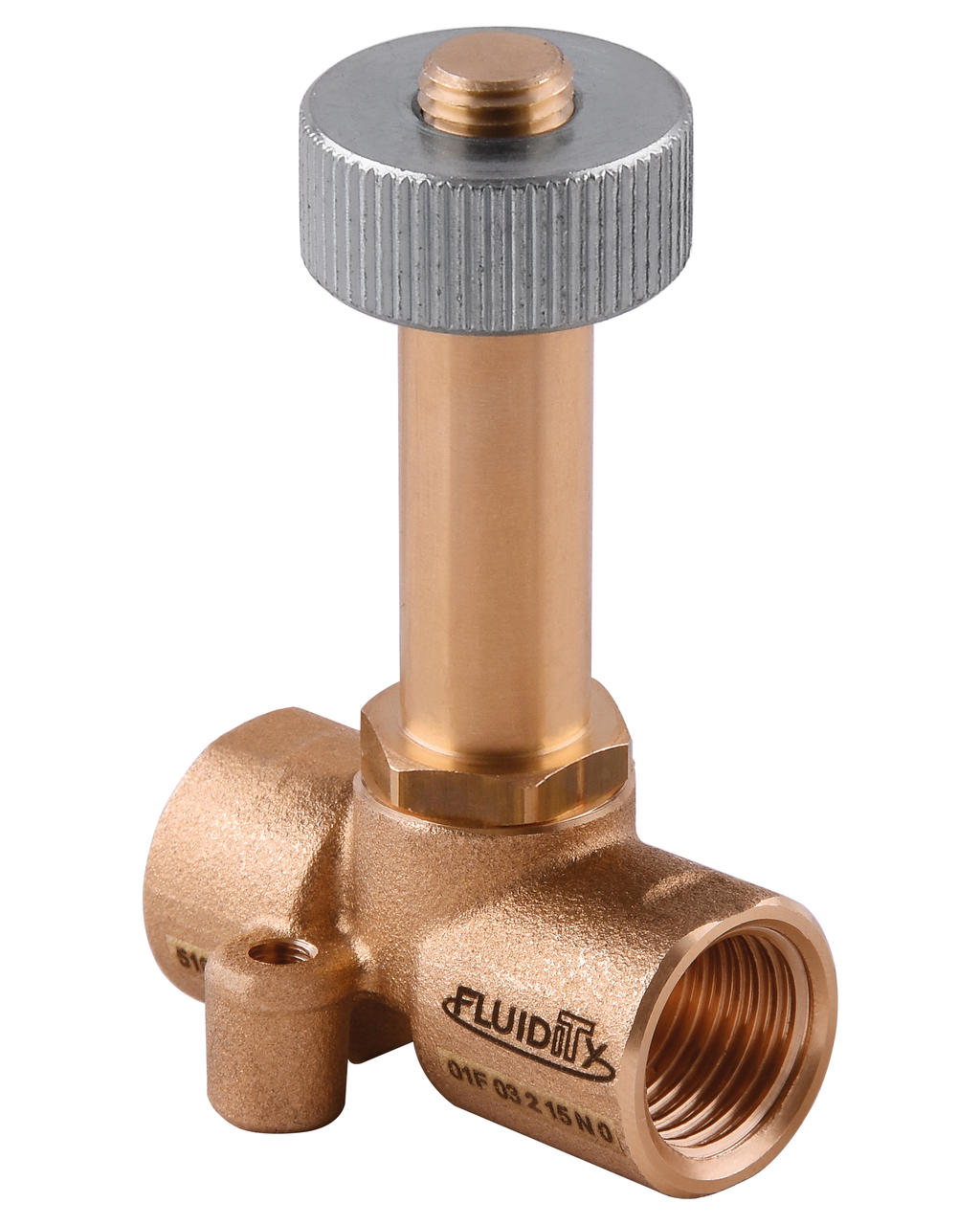

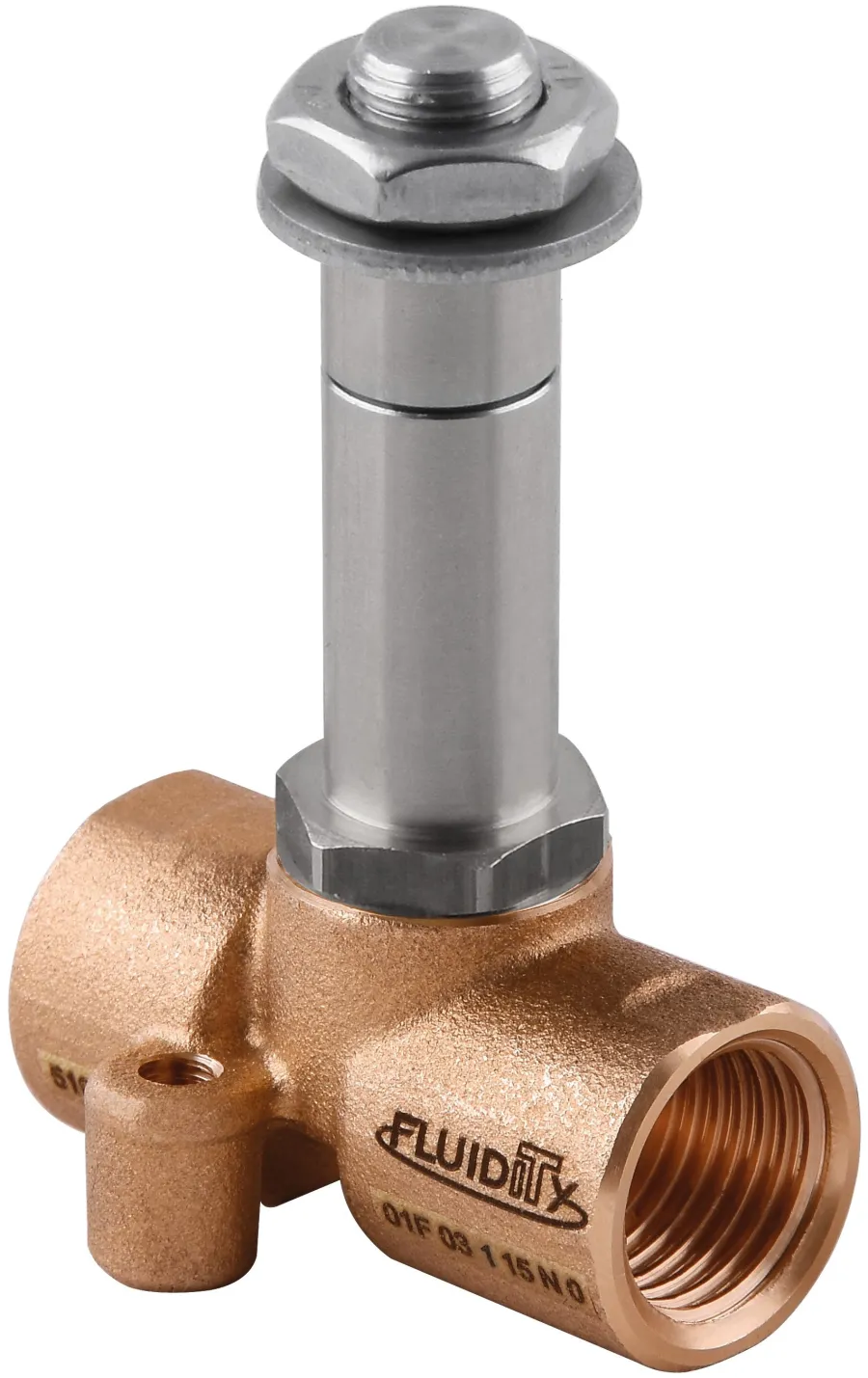

Serie 01F - 2/2 LC - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF - LATCHING

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (2 W)	OPD (ΔP) - DC (3 W)	OPD (ΔP) - DC (4 W)	Package
01F 03 B 25 V 0 N	01F03B25V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 03 B 25 N 0 N	01F03B25N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 (2)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 03 B 25 E 0 N	01F03B25E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 03 B 25 C 0 N	01F03B25C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 (2)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 03 B 15 V 0 N	01F03B15V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 03 B 15 N 0 N	01F03B15N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/32 (4)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 03 B 15 E 0 N	01F03B15E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 03 B 15 C 0 N	01F03B15C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/32 (4)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 03 B 03 V 0 N	01F03B03V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 03 B 03 N 0 N	01F03B03N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 (2.5)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 03 B 03 E 0 N	01F03B03E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 03 B 03 C 0 N	01F03B03C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	3/32 (2.5)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 03 B 02 V 0 N	01F03B02V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 03 B 02 N 0 N	01F03B02N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 (1.5)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 03 B 02 E 0 N	01F03B02E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 03 B 02 C 0 N	01F03B02C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/16 (1.5)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 02 B 25 V 0 N	01F02B25V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 02 B 25 N 0 N	01F02B25N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 02 B 25 E 0 N	01F02B25E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 02 B 25 C 0 N	01F02B25C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 36 psi (0 - 2,5 bar)	0 - 72 psi (0 - 5 bar)	0 - 145 psi (0 - 10 bar)	1
01F 02 B 15 V 0 N	01F02B15V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 02 B 15 N 0 N	01F02B15N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 02 B 15 E 0 N	01F02B15E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 02 B 15 C 0 N	01F02B15C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 145 psi (0 - 10 bar)	0 - 290 psi (0 - 20 bar)	0 - 507 psi (0 - 35 bar)	1
01F 02 B 03 V 0 N	01F02B03V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 (3)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 02 B 03 N 0 N	01F02B03N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/8 (3)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 02 B 03 E 0 N	01F02B03E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 (3)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 02 B 03 C 0 N	01F02B03C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	1/8 (3)	53	0.23 (0.2)	-	0 - 43 psi (0 - 3 bar)	0 - 797 psi (0 - 5,5 bar)	1
01F 02 B 02 V 0 N	01F02B02V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 02 B 02 N 0 N	01F02B02N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 02 B 02 E 0 N	01F02B02E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
01F 02 B 02 C 0 N	01F02B02C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 94 psi (0 - 6,5 bar)	0 - 188 psi (0 - 13 bar)	0 - 333 psi (0 - 23 bar)	1
