DIRECT ACTING SOLENOID VALVES - NPTF

Filter

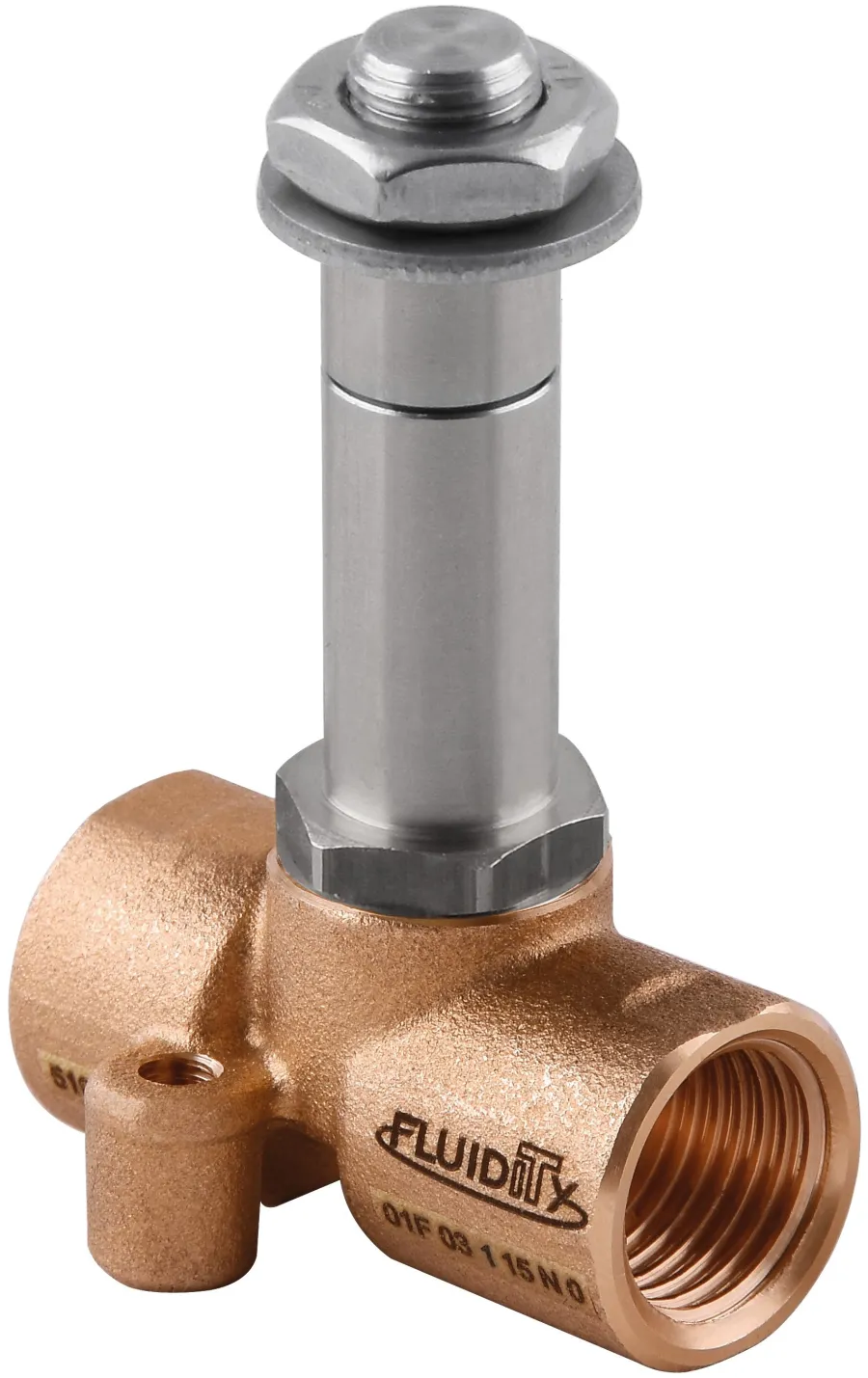

Serie 01F - 2/2 NC - NPTF

DIRECT ACTING SOLENOID VALVES - NPTF

Code	USA Ref	3D Drawings	Sealing material	Temperature	Port size - NPTF	Ø Orifice - inch (mm)	Viscosity (cSt)	Cv - gpm (Kv - m3/h)	OPD (ΔP) - DC (6.5 W)	OPD (ΔP) - DC (8 W)	OPD (ΔP) - AC (7.5 VA)	OPD (ΔP) - AC (11 VA)	Package
01F 02 1 15 N 0 N	01F02115N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 15 V 0 N	01F02115V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 15 E 0 N	01F02115E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 15 C 0 N	01F02115C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 02 N 0 N	01F02102N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 02 V 0 N	01F02102V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 02 E 0 N	01F02102E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 02 C 0 N	01F02102C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 02 1 25 N 0 N	01F02125N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 02 1 25 V 0 N	01F02125V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 02 1 25 E 0 N	01F02125E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 02 1 25 C 0 N	01F02125C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 02 1 03 N 0 N	01F02103N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 02 1 03 V 0 N	01F02103V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 02 1 03 E 0 N	01F02103E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 02 1 03 C 0 N	01F02103C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 02 1 04 N 0 N	01F02104N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/8"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 02 1 04 V 0 N	01F02104V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/8"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 02 1 04 E 0 N	01F02104E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/8"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 02 1 04 C 0 N	01F02104C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/8"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 03 1 15 N 0 N	01F03115N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 15 V 0 N	01F03115V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 15 E 0 N	01F03115E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 15 C 0 N	01F03115C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/16 (1.5)	25	0.07 (0.06)	0 - 232 psi (0 - 16 bar)	0 - 580 psi (0 - 40 bar)	0 - 435 psi (0 - 30 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 02 N 0 N	01F03102N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 02 V 0 N	01F03102V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 02 E 0 N	01F03102E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 02 C 0 N	01F03102C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/64 (2)	37	0.1 (0.09)	0 - 174 psi (0 - 12 bar)	0 - 435 psi (0 - 30 bar)	0 - 363 psi (0 - 25 bar)	0 - 580 psi (0 - 40 bar)	1
01F 03 1 25 N 0 N	01F03125N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 03 1 25 V 0 N	01F03125V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 03 1 25 E 0 N	01F03125E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 03 1 25 C 0 N	01F03125C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	3/32 (2.5)	53	0.17 (0.15)	0 - 65 psi (0 - 4.5 bar)	0 - 189 psi (0 - 13 bar)	0 - 261 psi (0 - 18 bar)	0 - 435 psi (0 - 30 bar)	1
01F 03 1 03 N 0 N	01F03103N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 03 1 03 V 0 N	01F03103V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 03 1 03 E 0 N	01F03103E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 03 1 03 C 0 N	01F03103C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	1/8 (3)	53	0.23 (0.2)	0 - 44 psi (0 - 3 bar)	0 - 102 psi (0 - 7 bar)	0 - 145 psi (0 - 10 bar)	0 - 232 psi (0 - 16 bar)	1
01F 03 1 04 N 0 N	01F03104N0N	Request access	NBR	+14°F +194°F (-10°C +90°C)	1/4"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 03 1 04 V 0 N	01F03104V0N	Request access	FKM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 03 1 04 E 0 N	01F03104E0N	Request access	EPDM	+14°F +284°F (-10°C +140°C)	1/4"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
01F 03 1 04 C 0 N	01F03104C0N	Request access	CR	-31°F +212°F (-35°C +100°C)	1/4"	5/32 (4)	53	0.35 (0.3)	0 - 15 psi (0 - 1 bar)	0 - 36 psi (0 - 2.5 bar)	0 - 58 psi (0 - 4 bar)	0 - 116 psi (0 - 8 bar)	1
