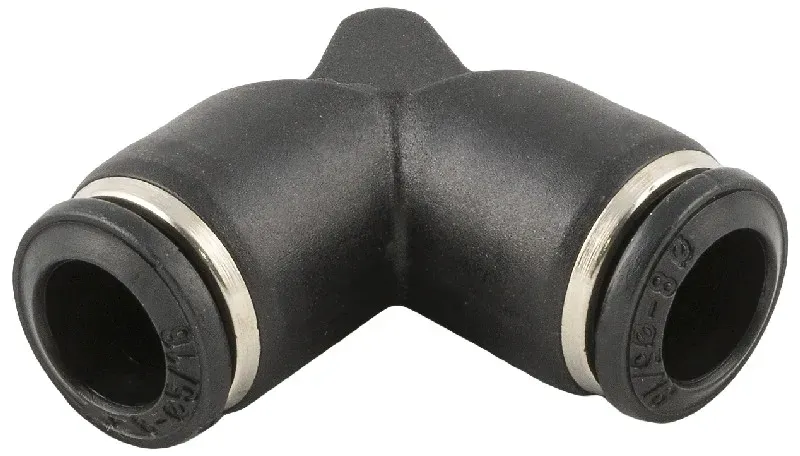

UNION ELBOW

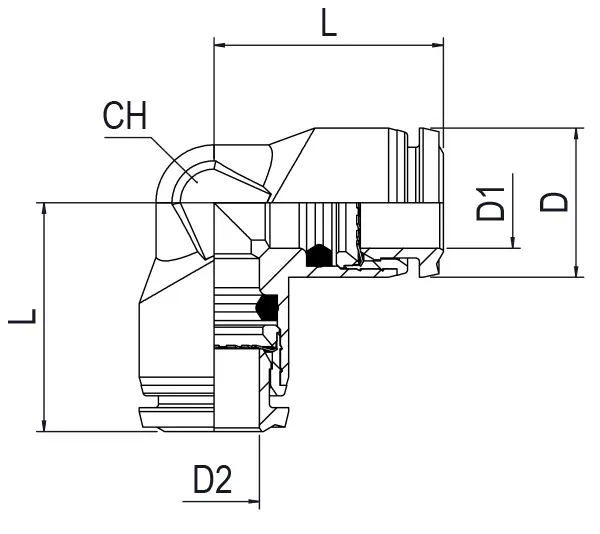

Code	USA Ref	3D Drawings	D1	D2	L	D	CH	Bag
55130 00 002	55130-4	Request access	5/32 (4)		0.650 (16.5)	0.394 (10)	0.354 (9)	10
55130 00 003	55130-5	Request access	5		0.787 (20)	0.472 (12)	0.433 (11)	10
55130 00 004	55130-6	Request access	6		0.807 (20.5)	0.472 (12)	0.433 (11)	10
55130 00 009	55130-8-6	Request access	5/16 (8)	6	0.886 (22.5)	0.551 (14)	0.512 (13)	10
55130 00 005	55130-8	Request access	5/16 (8)		0.866 (22)	0.551 (14)	0.512 (13)	10
55130 00 012	55130-10-6	Request access	10	6	1.024 (26)	0.669 (17)	0.630 (16)	10
55130 00 010	55130-10-8	Request access	10	5/16 (8)	1.024 (26)	0.669 (17)	0.630 (16)	10
55130 00 006	55130-10	Request access	10		1.043 (26.5)	0.669 (17)	0.630 (16)	10
55130 00 011	55130-12-10	Request access	12	10	1.201 (30.5)	0.787 (20)	0.748 (19)	10
55130 00 007	55130-12	Request access	12		1.181 (30)	0.787 (20)	0.748 (19)	10
55130 00 008	55130-14	Request access	14		1.201 (30.5)	0.827 (21)	0.787 (20)	10
55130 00 013	55130-16	Request access	16		1.291 (32.8)	0.945 (24)	0.787 (20)	10
