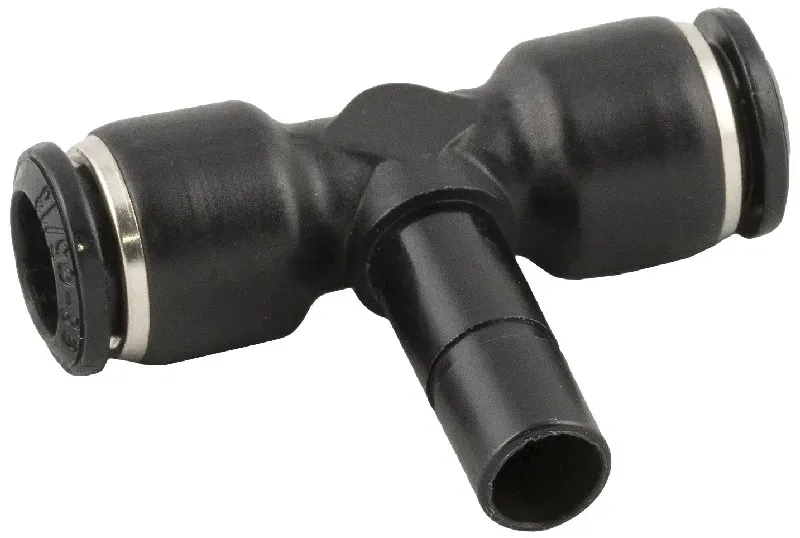

TEE PLUG IN

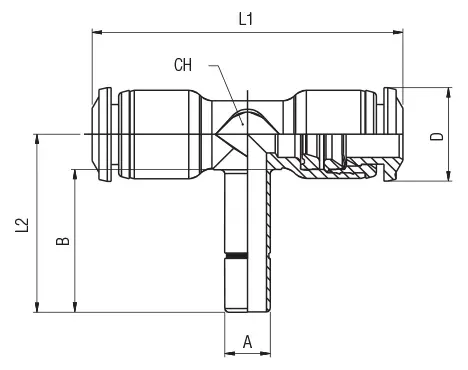

Code	USA Ref	3D Drawings	Tube	A	B	L1	L2	CH	D	Bag
55240 00 001	55240-4	Request access	5/32 (4)	5/32 (4)	0.669 (17)	1.299 (33)	0.815 (20.7)	0.276 (7)	0.394 (10)	10
55240 00 002	55240-4-6	Request access	5/32 (4)	6	0.748 (19)	1.299 (33)	0.894 (22.7)	0.276 (7)	0.394 (10)	10
55240 00 005	55240-6	Request access	6	6	0.748 (19)	1.614 (41)	0.933 (23.7)	0.354 (9)	0.492 (12.5)	10
55240 00 006	55240-6-4	Request access	6	5/32 (4)	0.669 (17)	1.614 (41)	0.854 (21.7)	0.354 (9)	0.492 (12.5)	10
55240 00 007	55240-8	Request access	5/16 (8)	5/16 (8)	0.787 (20)	1.732 (44)	1.024 (26)	0.394 (10)	0.551 (14)	10
55240 00 008	55240-8-10	Request access	5/16 (8)	10	0.874 (22.2)	1.732 (44)	1.102 (28)	0.394 (10)	0.551 (14)	10
55240 00 009	55240-10	Request access	10	10	0.886 (22.5)	2.087 (53)	1.181 (30)	0.512 (13)	0.669 (17)	10
55240 00 010	55240-10-12	Request access	10	12	0.984 (25)	2.087 (53)	1.268 (32.2)	0.512 (13)	0.669 (17)	10
55240 00 011	55240-12	Request access	12	12	1.004 (25.5)	2.421 (61.5)	1.319 (33.5)	0.630 (16)	0.787 (20)	10
