Filter
| Code | USA Ref | 3D Drawings | Drawing | Way | Function | Ø inch (mm) | Flow rate Nl/min. 1 - 2 | Flow rate Nl/min. 2 - 3 | Response Time (ms) En. | Response Time (ms) De-en. | Manual override | Weight lb (Kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

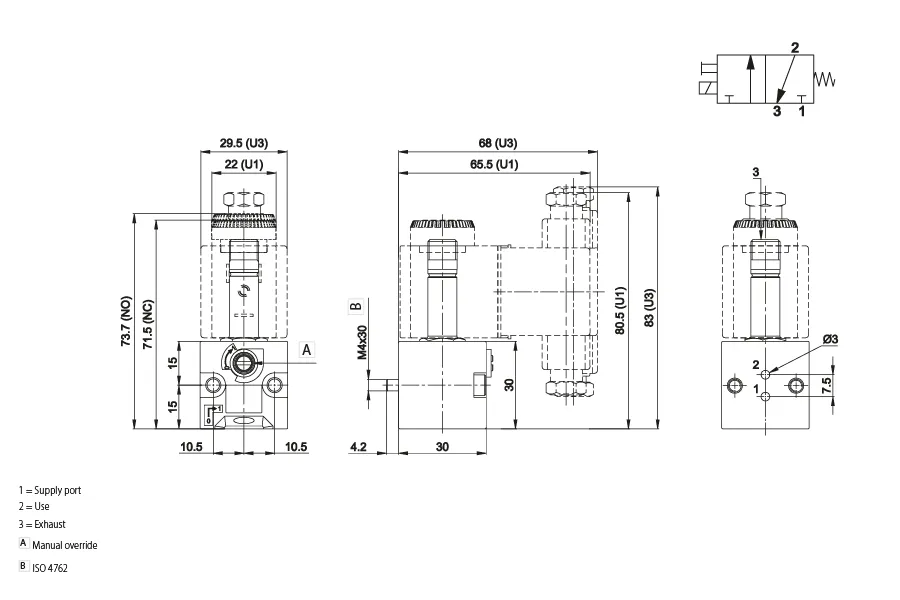

| UAA 0400 | UAA0400 | Request access | 3/2 | NC | .059 (1.5) | 45 | 77 | 12 | 12 | Screwdriver adjustment | 0.11 (0.052) | ||

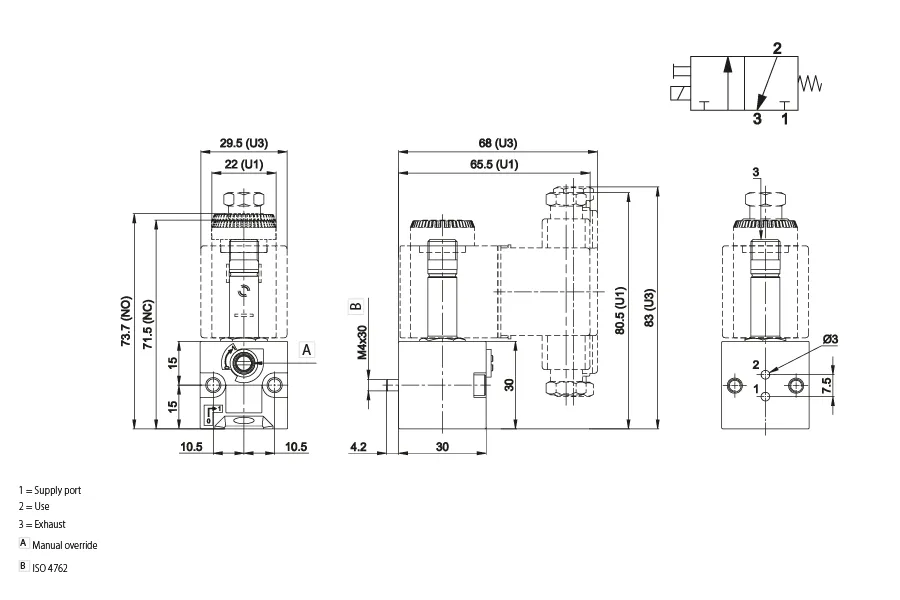

| UAA 0400 U | UAA0400U | Request access | 3/2 | NC | .059 (1.5) | 45 | 77 | 12 | 12 | Pressure applied with a tool | 0.11 (0.052) | ||
| UAA 0402 | UAA0402 | Request access | 2/2 | NC | .051 (1.3) | 42 | - | 18 | - | Screwdriver adjustment | 0.11 (0.052) | ||

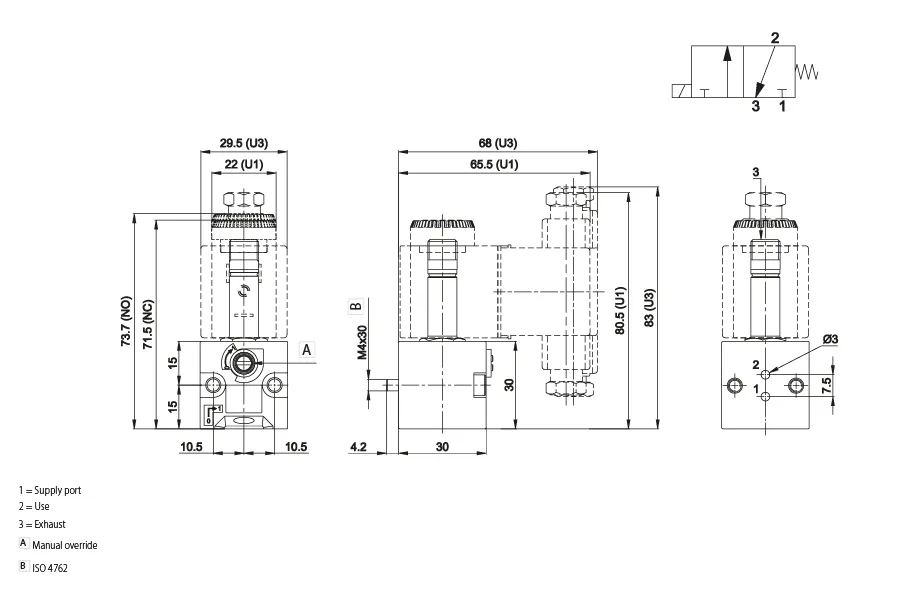

| UAA 0404 | UAA0404 | Request access | 3/2 | NO | .047 (1.2) | 33 | 77 | 11 | 10 | Button on the ring nut | 0.13 (0.060) |
